INSTRUMENTS & CONTROLS
23
1. Instrument Panel
2. Steering Wheel
3. Parking Brake
4. Mid Power Take-Off (PTO) Selector Lever
5. Front Wheel Drive (4WD) Shift Lever
6. Slow Lowering Control Knob
7. Differential Lock Lever
8. Hydrostatic Control Lever (TH4330/4290)
9. Range Gear Shift Lever
10. Rear Power Take-Off (PTO) Selector Lever
11. Three-Point Hitch Position Control Lever
12. Hydro Forward Reverse Pedal
13. Hand Throttle Lever
14. Brake Pedal
15. Draft Control Lever (Accessory)
16. Auxiliary Hydraulic Valve Controls (Accessory)

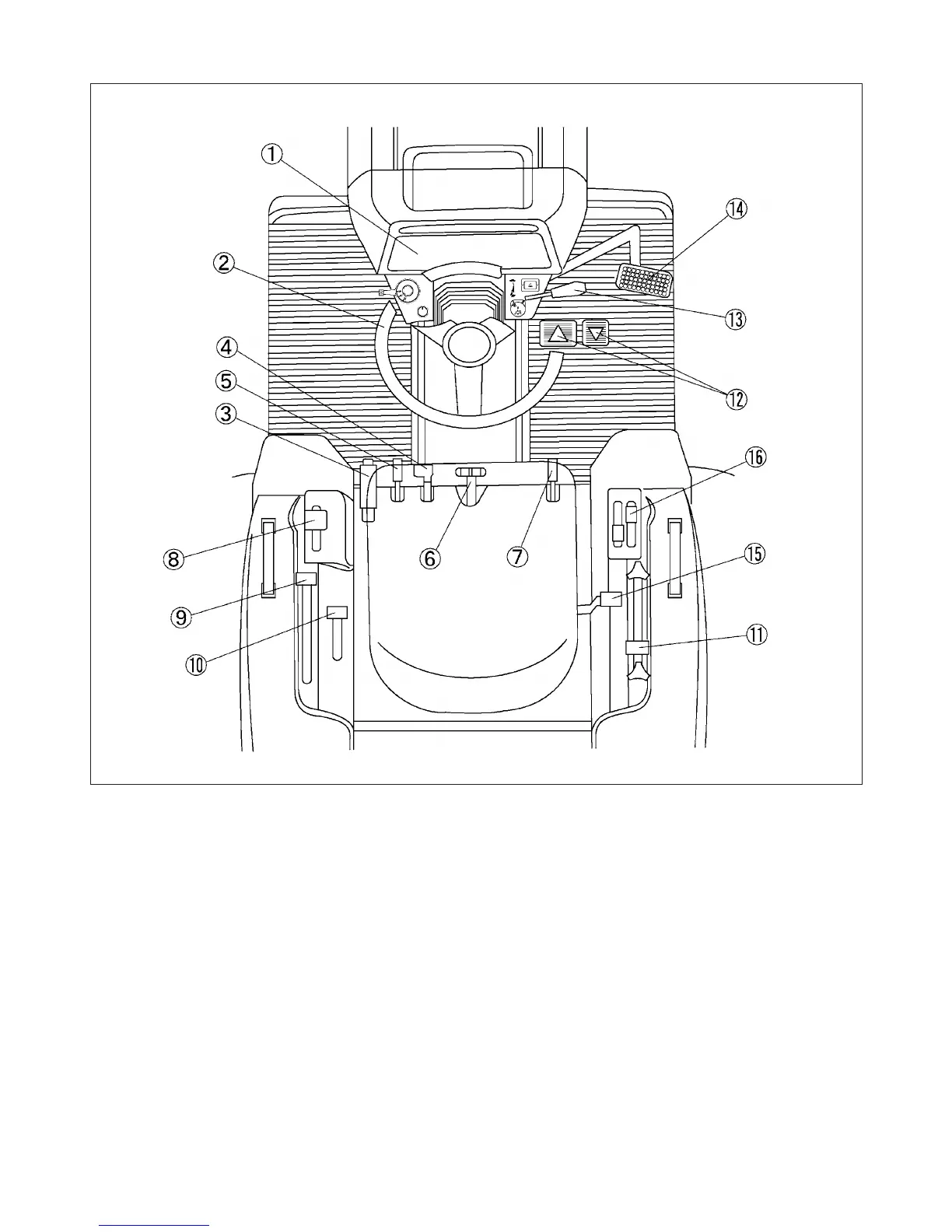

FIG. 4-2: General layout and location of controls within operator’s area on Tractor. Specific use of these controls is
given later in this section and also in “Operation” section of this book:
FIG. 4-2 (Hydrostatic Transmission)
