TH4330,4290,4260
34
THREE-POINT HITCH
Complete operating instructions for three-point hitch are
give in “Operation” section of this book.
POSITION CONTROL LEVER

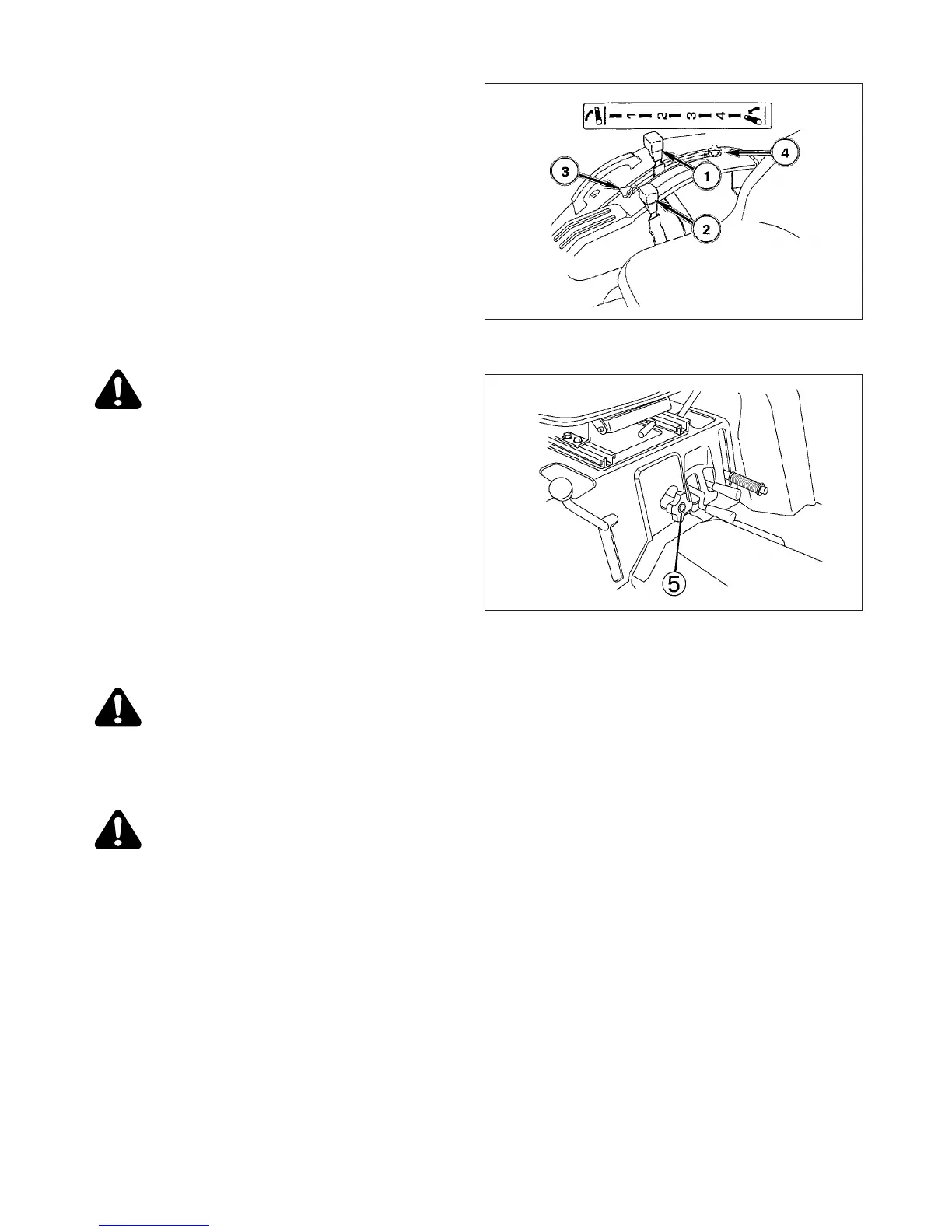

FIG. 4-33: Position control lever, 1, adjusts height of
three point hitch on rear of Tractor. Setting lever in a par-
ticular position will set the height respectively. Full up
position is with lever fully rearward and full down position
is with lever completely forward.
Lever stops, 3 and 4, can be adjusted within slot to limit
implement raising / lowering.
CAUTION: Use position control lever, 1, when
attaching or detaching implement. If
equipped with draft control, lower draft lever,
2, fully and then use position control.
NOTE: When starting engine, ensure implement is low-
ered to the ground and both levers are fully for-
ward. This reduces load on starter due to hitch
trying to raise when engine is cranked.
Lowering Rate Control Knob
FIG. 4-34: Lowering rate knob, 5, adjusts “rate of drop” of
three and implement. Turning knob clockwise will
increase lowering time and counterclockwise will
decrease lowering time. Turning knob fully clockwise will
lock implement (or hitch) in raised position for transport.
CAUTION: When working near or under
mounted equipment, securely block in posi-
tion and turn lowering rate clockwise to
“stop”.
COMFORT ADJUSTMENT
CAUTION: Never make seat adjustment while
Tractor is in motion. Make sure adjustment is
“locked” prior to operation unit.
FIG. 4-33
FIG. 4-34
