TH4330,4290,4260
76
HYDROSTATIC ADJUSTMENTS
For adjustments of the hydrostatic linkage, see your deal-
er.
WHEELS & TIRES
Examine wheels and tires periodically for correct inflation
pressures, tight wheel bolts, and any physical damage
that may be a detriment to Tractor operation and operator
safety. Correct condition prior to Tractor operation.
Tire Inflation Pressures

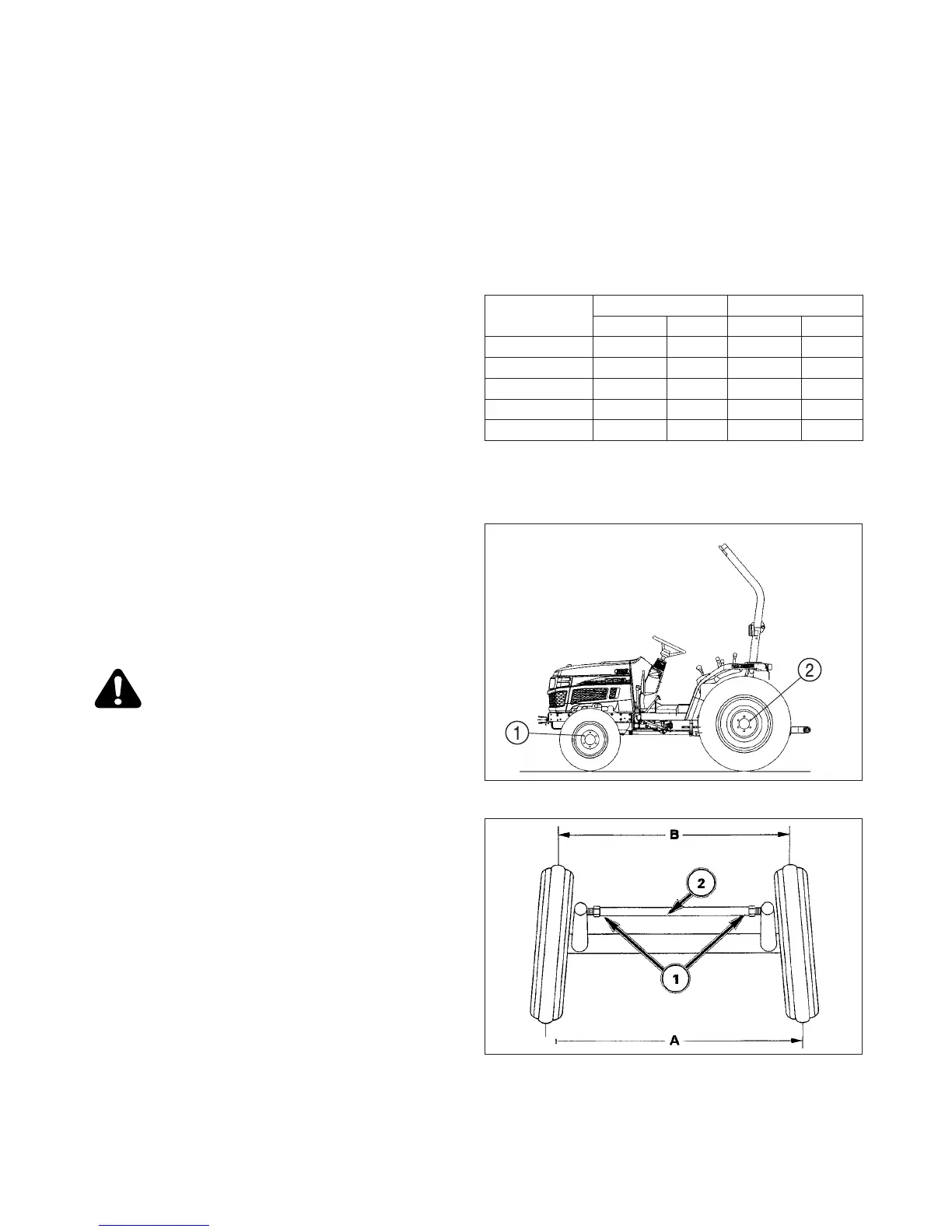

FIG. 6-41: Maintaining correct tire pressure will help
insure tire life. If tires have deep scratches, cuts or punc-
tures, the respective tire should be repaired or replaced
by qualified personnel as soon as possible.
IMPORTANT: lf necessary to replace any tire(s), ensure
original tire size is used. This is particularly
true on 4-WD models to ensure correct
amount of front axle over-speed (or lead)
is maintained.
Wheel Bolt Torque
FIG. 6-42: Periodically check all wheel bolt torques.
Correct bolt torques:
Front Wheel Bolts, 1 … 75 ft.-lbs. (102N.m)
Rear Wheel Bolts, 2 ... 80 ft.-lbs. (120N.m)
CAUTION: Correct wheel bolt torque must be
maintained. Installation of front mounted
implements (ex; loaders, mowers) impose
increased loads and require frequent check-
ing of wheel bolts.
Front Wheel Alignment
FIG. 6-43: Correct "toe-in" dimension of front wheels (A
minus B) is 0.08 to 0.24" (2-6 mm).
To adjust, loosen lock nuts, 1, and adjust tie rod length by
turning turnbuckles, 2. Adjust each side evenly.
Ball joints must move freely after lock nuts are tight-
ened.
NOTE: Measure toe-in from tire center to tire center at a
point halfway up on face of each tire.
FIG. 6-41
FIG. 6-42
FIG. 6-43
Tire type
Front Wheel Rear Wheel
Tire size Pressure Tire size Pressure
Ag. Tires 6-14 177 kPa 12.4-16 98 kPa
Turf Tires 24x8.50-12 157 kPa
315 / 80D-16
98 kPa
Wide Turf Tire 26x12.00-12
118 kPa 13.6-16 98 kPa
Narrow Agri. Tire 6-14 177 kPa 9.5-22 137 kPa
Oversize Agri. Tire
7-14 177 kPa 9.5-24 216 kPa
