LUBRICATION & PERIODIC MAINTENANCE
77
Front Wheel Spacing
Tread width may be varied by using the following meth-
ods, as applicable. Tread widths are measured tire center
to tire center as close to the ground as possible.
NOTE: Make certain desired setting is compatible with
implements to be used to prevent clearance and
interference problem.

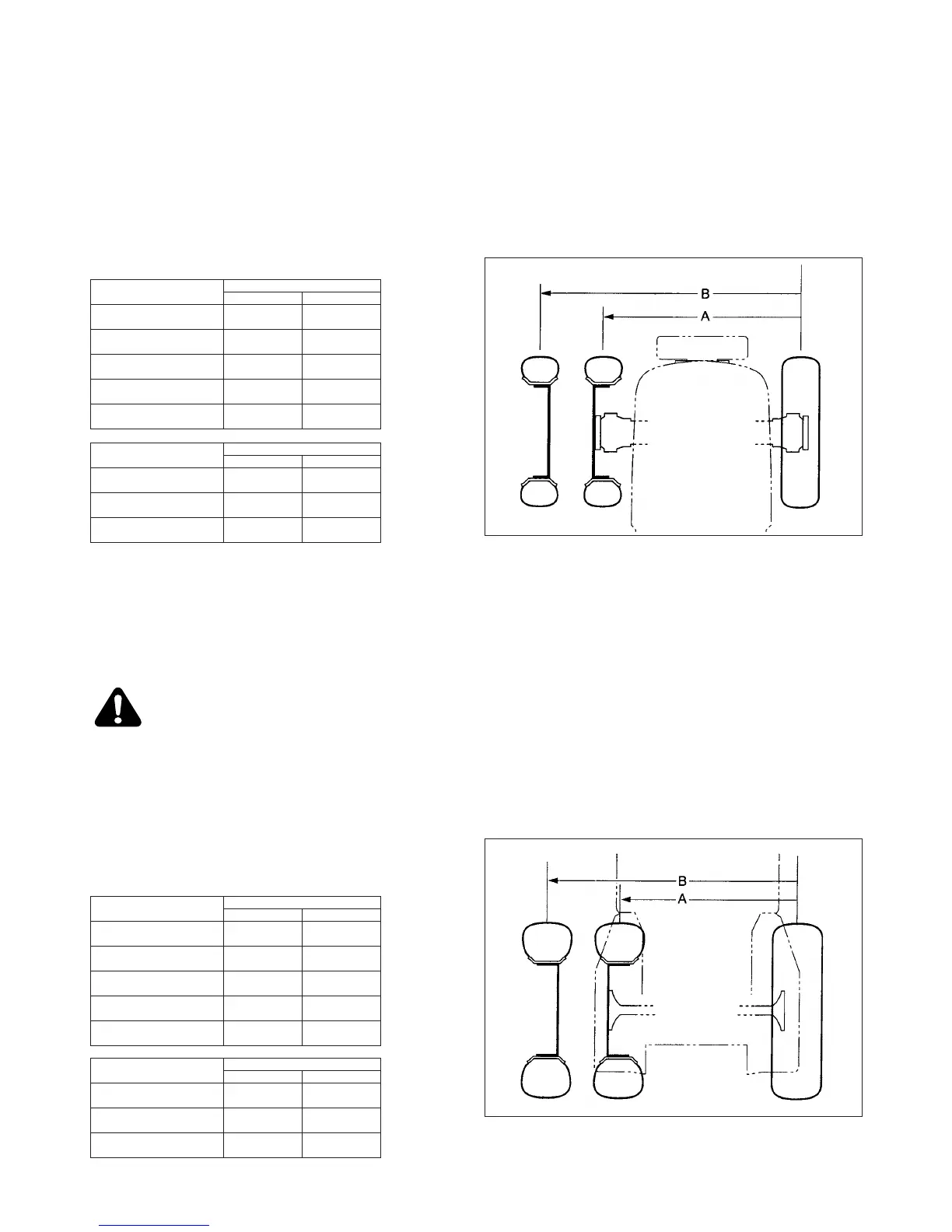

FIG. 6-44: Front tire tread widths.
Rear Wheel Spacing
To reverse entire wheel and tire assembly – Raise
both rear tires of Tractor. Remove bolts securing both
rear wheel assemblies to rear axle hubs and switch wheel
assemblies to opposite sides of Tractor.
CAUTION: Rear wheels are heavy. Use care
when moving. Make sure Tractor is blocked
securely.
Tighten all wheel bolts securely and recheck after short
period of operation.
NOTE: Agricultural lug-type tires must always be
installed so when viewed from the rear, the “V”
pattern of the tread points upward.
FIG. 6-45: Rear tire tread widths.
FIG. 6-44
FIG. 6-45
Front Tire type
(Mechanical)
Ag.Tires
Turf Tires
Wide Turf Tire
Narrow Agri. Tire
Oversize Agri. Tire
Tread Width (mm)
A
960
1067
1115
960
990
B
Not
Recommended
Not
Recommended
Not
Recommended
Not
Recommended
Not
Recommended
Front Tire type
(Hydrostatic)
Ag.Tires
Turf Tires
Wide Turf Tire
Tread Width (mm)
A
880
980
985
B
Not
Recommended
Not
Recommended
Not
Recommended
Front Tire type
(Mechanical)
Ag.Tires
Turf Tires
Wide Turf Tire
Narrow Agri. Tire
Oversize Agri. Tire
Tread Width (mm)
A
1096
946
931
880
940
B
Not
Recommended
966
980
Not
Recommended
Not
Recommended
Front Tire type
(Hydrostatic)
Ag.Tires
Turf Tires
Wide Turf Tire
Tread Width (mm)
A
875
945
1040
B
Not
Recommended
Not
Recommended
Not
Recommended
