TH4330,4290,4260
74
CLUTCH FREE-PLAY ADJUSTMENT
(Mechanical Transmission)

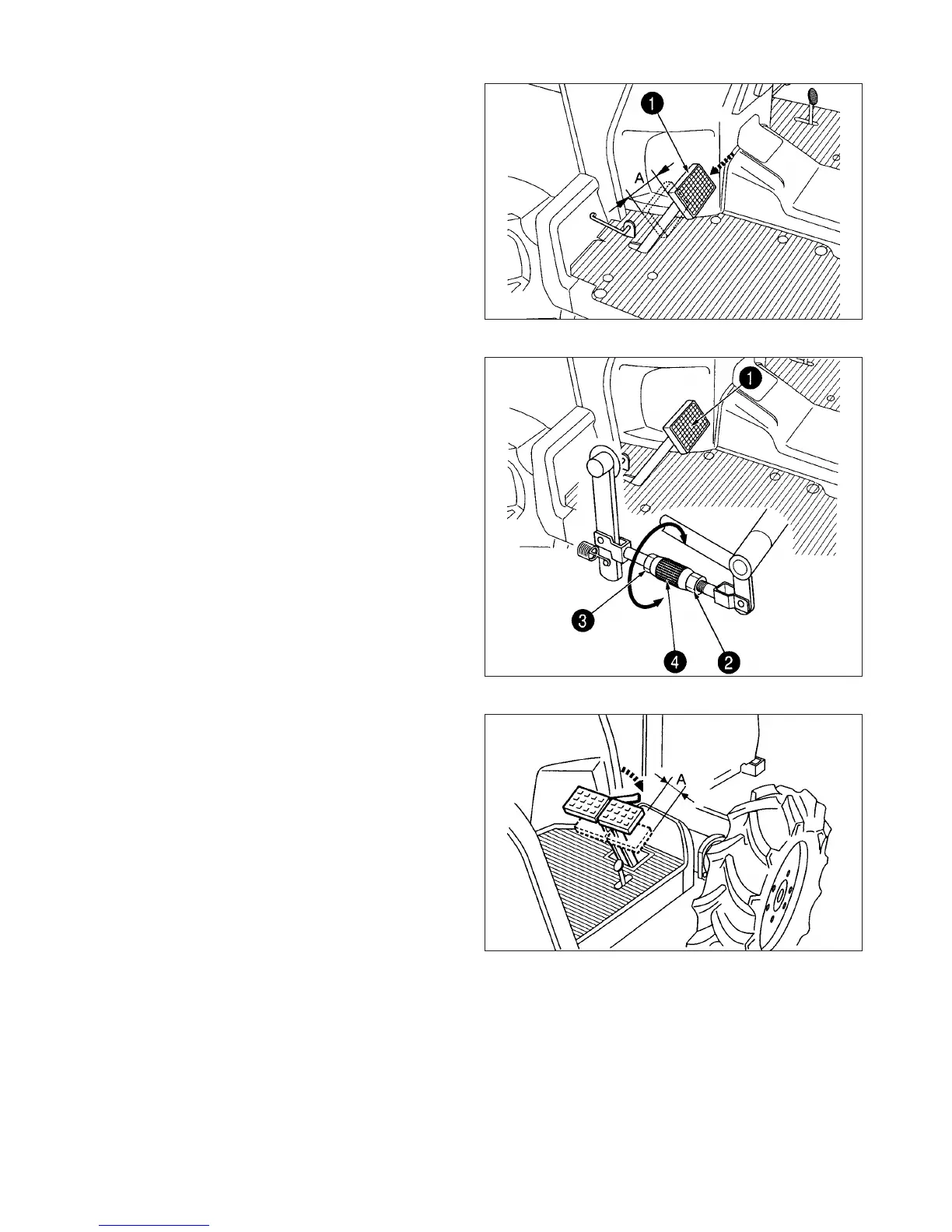

FIG. 6-35: Check clutch pedal free-play regularly and
adjust as necessary. Correct clutch pedal free-play (A) is
20 to 30 mm (7/8" to 1-1/8") when measured at the end of
the pedal as shown (1).
NOTE: Through use, clutch free-play will be reduced.
IMPORTANT: Correct free-play must be maintained to
reduce wear on clutch and release bear-
ing, and allow complete disengagement
when the pedal is depressed.
FIG. 6-36: To adjust clutch pedal free-play, locate the
linkage under the left foot step, and loosen lock nut (2)
(right-hand thread), and lock nut (3) (left-hand thread).
Adjust turnbuckle (4) on linkage until free-play is correct.
Lengthening the linkage will increase free-play, shorten-
ing the linkage will reduce free-play.
Secure by retightening the lock nuts.
BRAKE ADJUSTMENT (Mechanical Transmission)
FIG. 6-37: Unlatch pedals and check free-play of each
brake pedal. Correct free-play, A, of each individual brake
pedal is 20 to30 mm (7/8" to 1-1/8").
FIG. 6-35 (Mechanical Transmission)
FIG. 6-36 (Mechanical Transmission)
FIG. 6-37 (Mechanical Transmission)
