Iseki TH4330 - Instruments and Controls; Operator Controls Layout

TH4330,4290,4260
22
1. Instrument Panel
2. Steering Wheel
3. Parking Brake
4. Mid Power Take-Off (PTO) Selector Lever
5. Front Wheel Drive (4WD) Shift Lever
6. Slow Lowering Control Knob
7. Differential Lock Pedal
8. Main Gear shift Lever
9. Range Gear Shift Lever
10. Rear Power Take-Off (PTO) Selector Lever
11. Three-Point Hitch Position Control Lever
12. Foot Throttle Pedal
13. Hand Throttle Lever
14. Brake Pedals
15. Draft Control Lever (Accessory)
16. Auxiliary Hydraulic Valve Controls (Accessory)
17. Clutch Pedal
INSTRUMENTS & CONTROLS

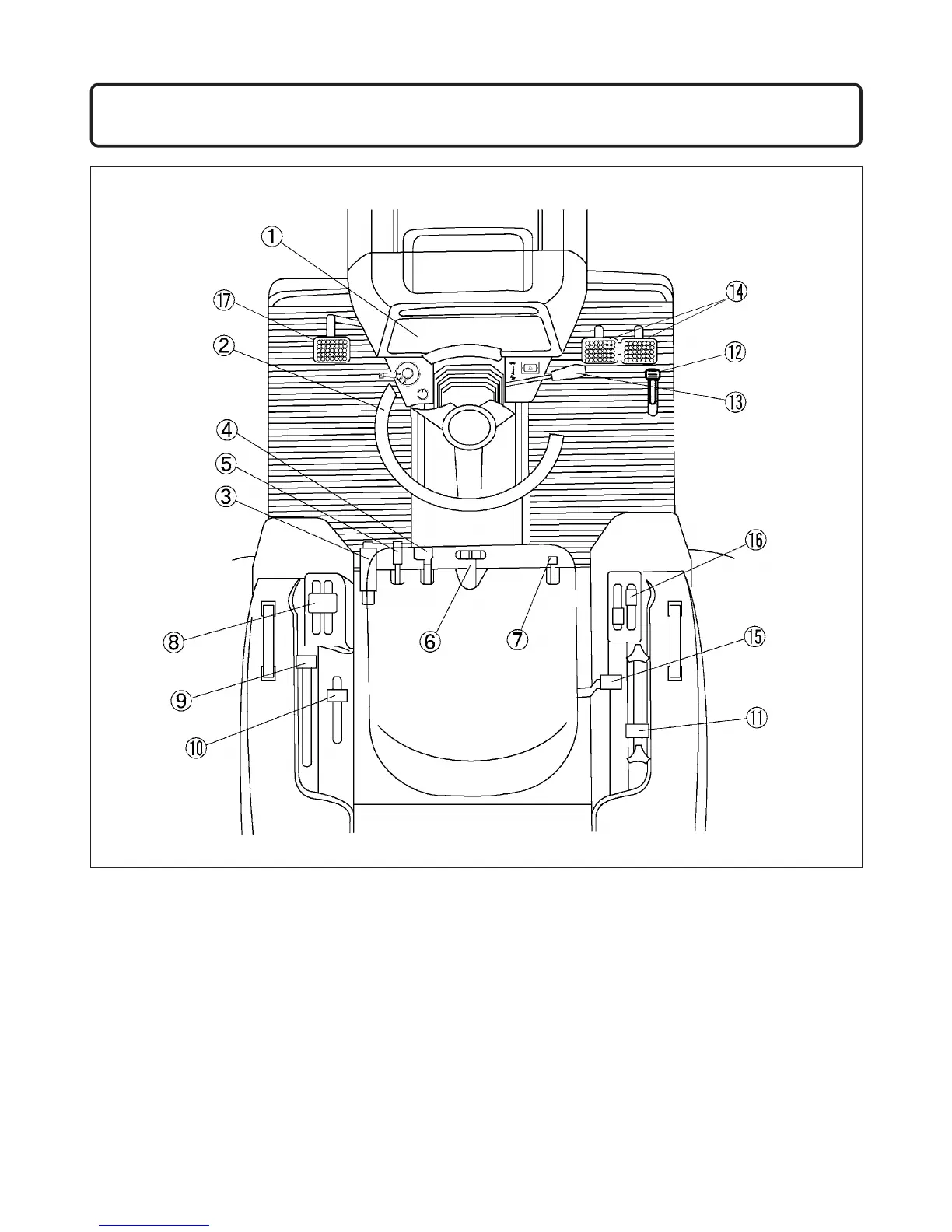

FIG. 4-1: General layout and location of controls within operator’s area on Tractor. Specific use of these controls is
given later in this section and also in “Operation” section of this book:
FIG. 4-1 (Mechanical Transmission)
