Detaching Implements
CAUTION: Always use POSITION CONTROL
to attach / detach implements to provide pre-
cise control of hitch.
Select a level area to detach and store the implement.
Lower implement to ground by moving position control
lever to DOWN. If necessary, adjust leveling crank on
right lift link to level implement on ground. Shut off
engine, securely lock brakes and remove key from
Tractor.
Disconnect implement PTO drive shaft (as available).
Detach top link from implement.
NOTE: Lengthening or shortening of top link may be
required to permit disconnection from implement.

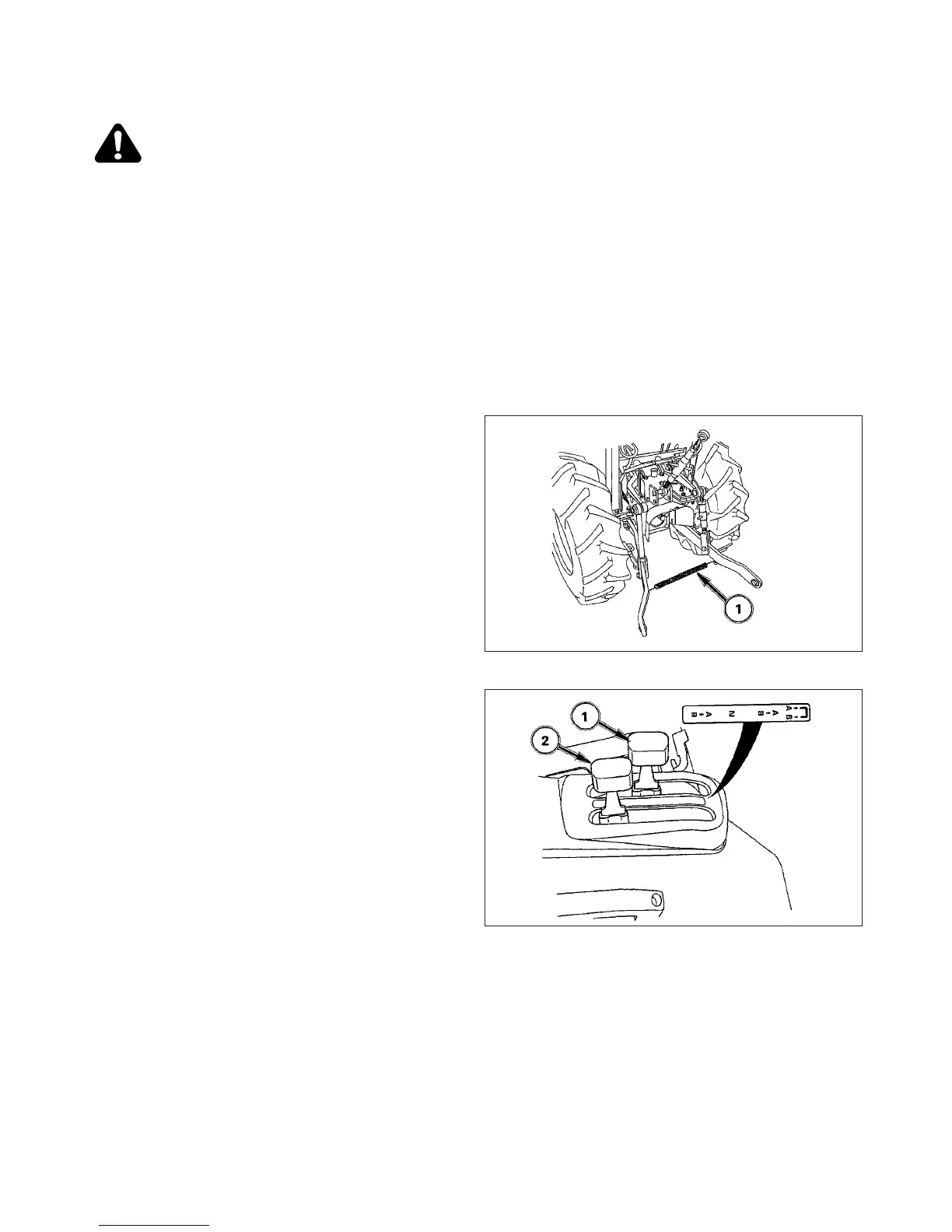

FIG. 5-39: Disconnect lower links from implement pins.
Make sure lower links are connected together with spring,
1, to prevent tire interference.
Take position in operator’s seat, start engine and drive
Tractor clean of implement.
EXTERNAL AUXILIARY HYDRAULICS
(ACCESSORY)
Auxiliary hydraulics can be Dealer-installed to operate
implements requiring external hydraulic source for opera-
tion. Kits are available as single-spool (one auxiliary cir-
cuit) or two-spool (two-spool kit only).
FIG. 5-40: Control lever, 1, controls implement raising /
lowering when first set of remote couplers are used.
Control lever, 2, controls implement when second set of
remote couplers are used (two-spool kit only).
Control lever(s) are spring-loaded to center neutral posi-
tion, from normal raise or lower positions.
If levers are pushed fully forward they will hold in a detent
providing a float position.
Float position is used for loader and blade operations to
allow the bucket, or blade to float on top of the surface. It
is also used in some implement applications.
FIG. 5-40
FIG. 5-39
