Iseki TH4330 - Transmission Shift Levers

TH4330,4290,4260
30
TRANSMISSION CONTROLS
TRANSMISSION SHIFT LEVER AND CONTROLS
(Mechanical Transmission)

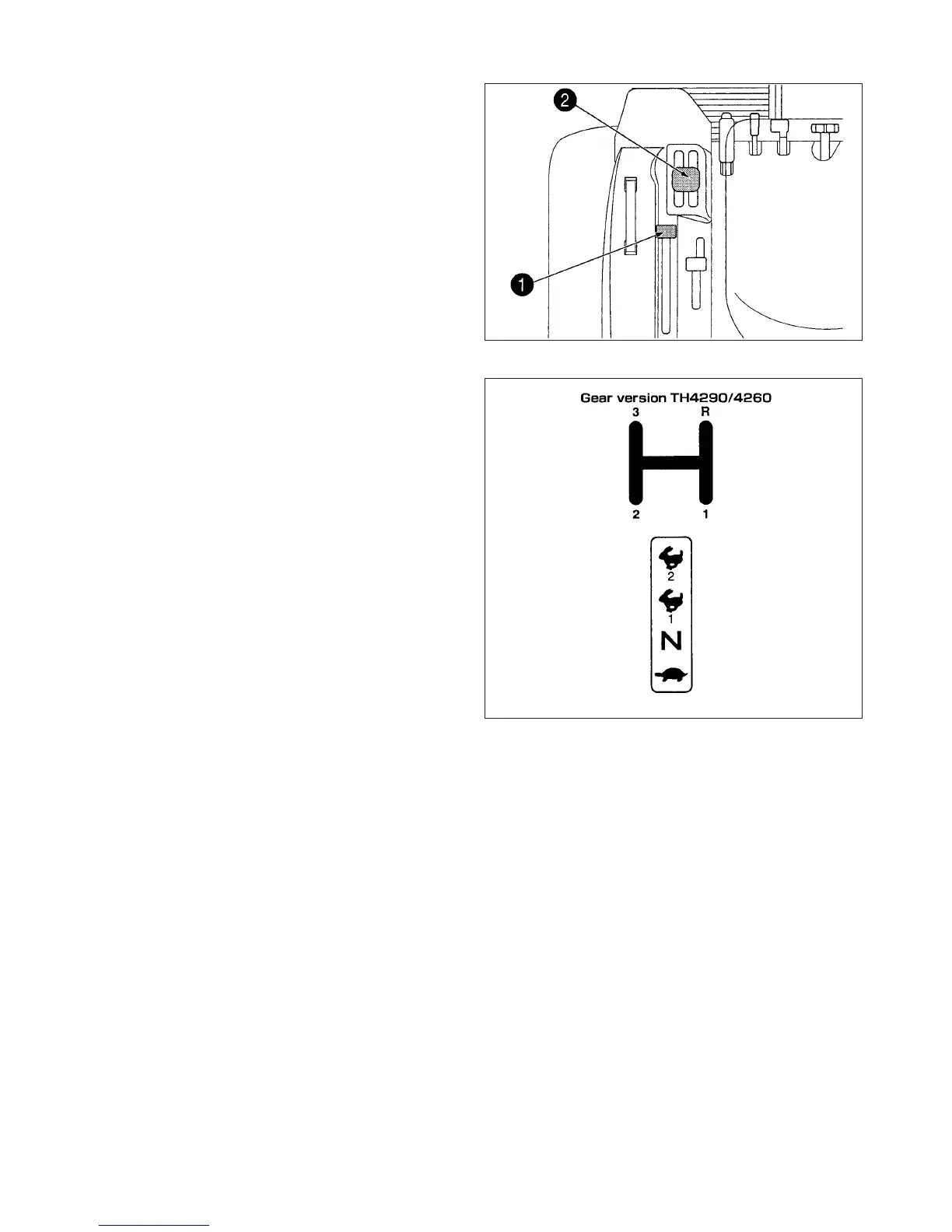

FIG. 4-20: Two shift levers are used to select ground
travel speed through different gear reductions within the
drive train.
Range shift lever (1) and main gear shift lever (2) are
both located to the left of the operator's seat.
Range shift lever (1) - Providers three major speed
changes on TH4290/4260.
Main Shift Lever (2) - Providers smaller speed changes.
It has three forward gears and one reverse gear speed
change.
In total, nine forward and three reverse gear speeds are
possible on TH4290/4260.
FIG. 4-21: Main shift lever is located at front. It has three
forward and reverse gear. Range shift lever is located at
rear. It has turtle, rabbit 1, and rabbit 2 positions with neu-
tral at center of the quadrant.
Note: Complete transmission operating information is
given later in the operation section of this book.
FIG. 4-20
FIG. 4-21
