TH4330,4290,4260
56
LUBRICATION / FILL POINTS
(Mechanical Transmission)

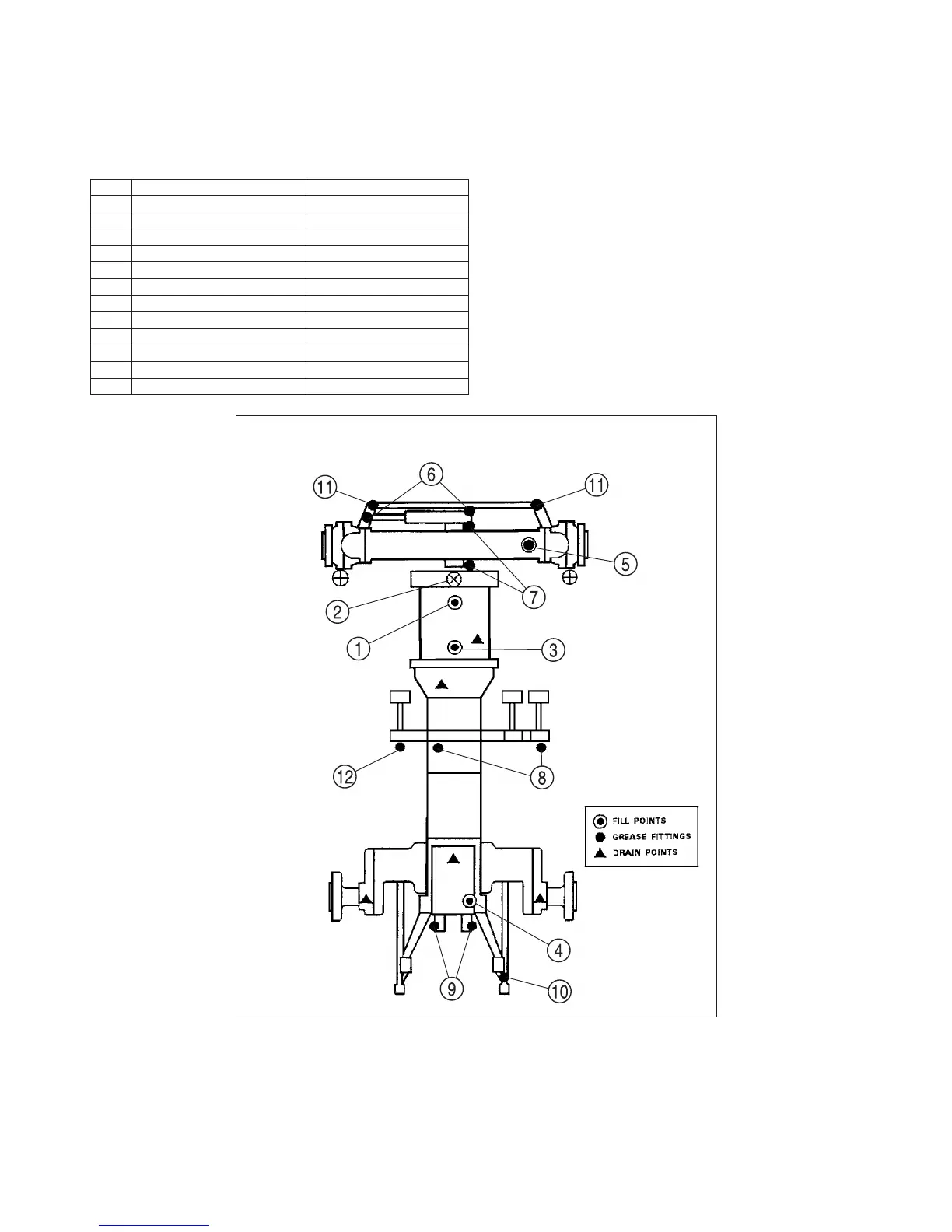

FIG. 6-1: General layout of lubrication, fill and drain locations on Tractor:
Ref. Description Type
1. Crankcase Engine Oil
2. Radiator Engine Coolant
3. Fuel Tank Diesel Fuel
4. Rear Housing Hydraulic Oil
5. Front Axle (4-WD) Hydraulic Oil
6. Power Steering Rod Grease
7. Axle Pivot Points Grease
8. Brake Pivots Grease
9. Draft Pivots (Accessory) Grease
10. Levering turnbuckle Grease
11. Tie-rod End Grease
12. Clutch Pivot Grease
FIG. 6-1
