TH4330,4290,4260
28
MAIN CLUTCH PEDAL
Dual clutch-TH4290/4260 with a mechanical transmis-
sion

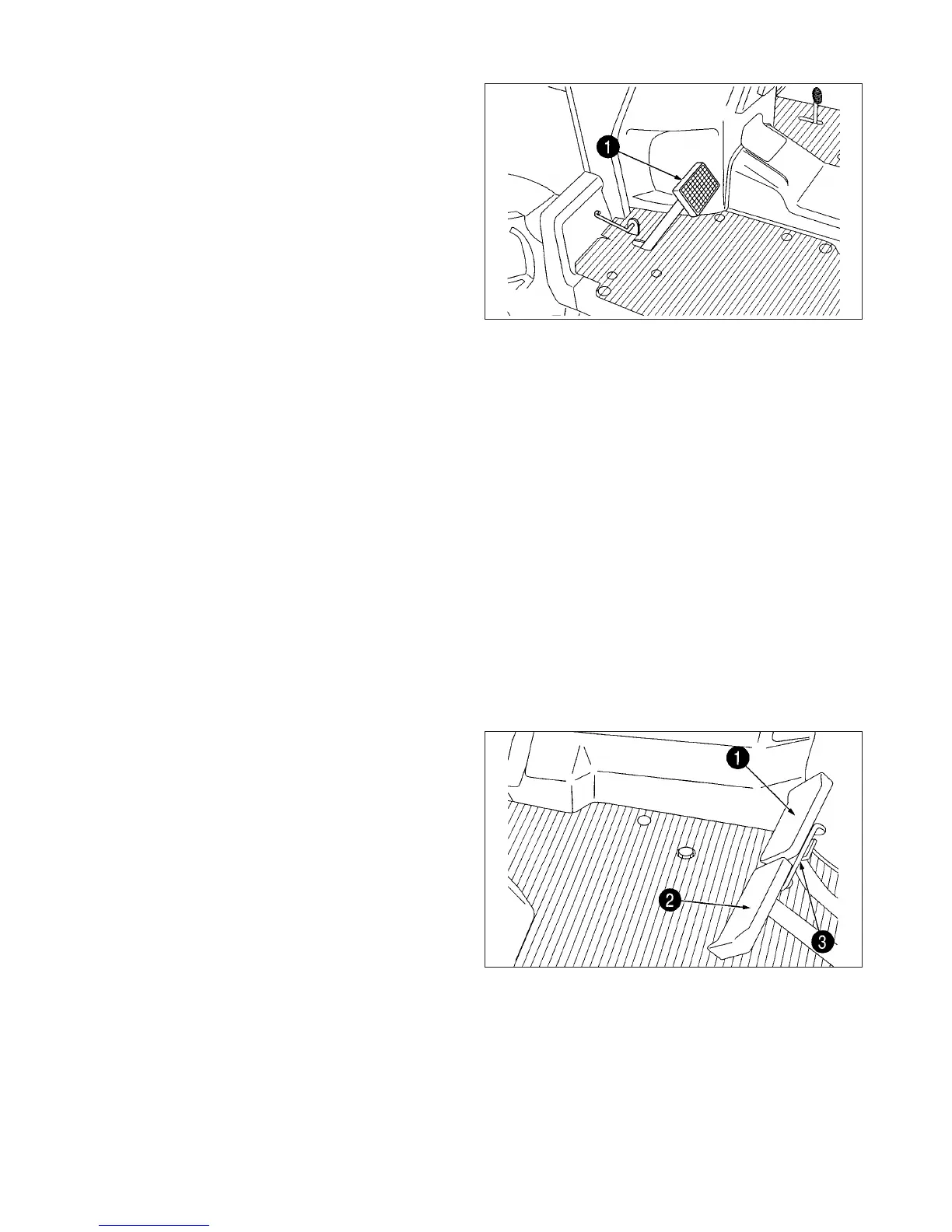

FIG. 4-15: These tractors are equipped with a two stage
clutch.
Depressing the pedal (1) will reveal two distinct areas of
operation made apparent by changes in pedal effort.
Depressing pedal through its first stage will disconnect
transmission drive and allow motion of tractor to be
stopped.
The power take-off (PTO) will continue to operate.
Additional and final downward movement of the clutch
pedal will disengage the engine from the PTO drive while
the pedal is depressed.
Releasing the clutch pedal will re-engage the PTO drive
first, which allows the PTO driven machine to get up to
speed, and then with transmission in gear, forward travel
will begin as the second stage clutch is released.
Note:
•Clutch pedal should be depressed quickly to
prevent abnormal wear.
Clutch pedal should be raised smoothly to pre-
vent sudden movement.
DO NOT rest your foot on the clutch pedal
except when operating the clutch.
Important: Clutch pedal free-play adjustment should
be adjusted correctly. Consult "mainte
nance" section.
BRAKES
Brake Pedals (Mechanical Transmission)
FIG. 4-16: Inner brake pedal (1) and outer brake pedal
(2) independently control the respective left and right
wheel brakes, to assist in turning.
During tractor transport or high speed operation, the
brake pedals must be latched together using interlocking
plate (3)
FIG. 4-15
FIG. 4-16
