4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 73

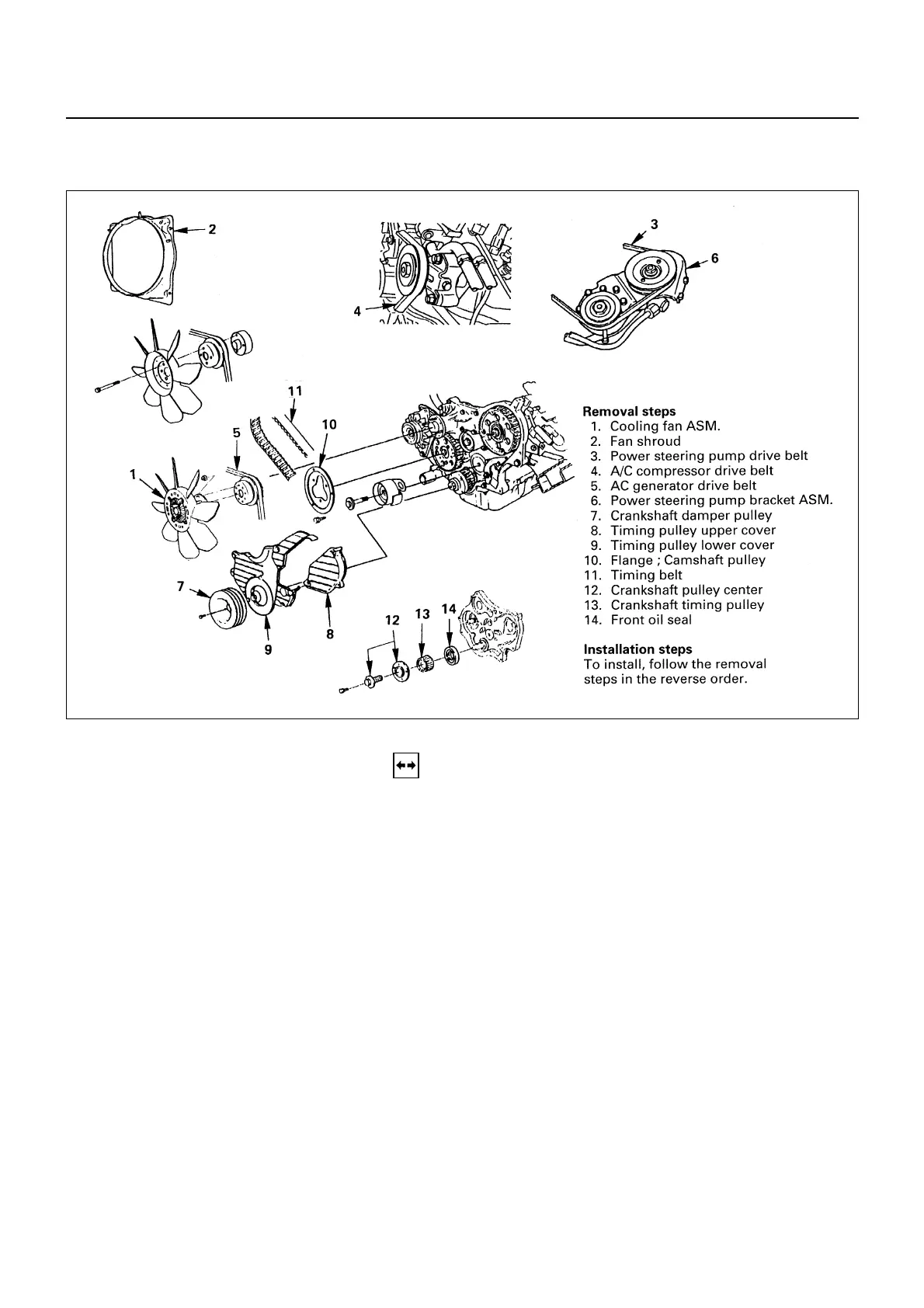

CRANKSHAFT FRONT OIL SEAL (Belt Drive Type)

REMOVAL

Preparation:

• Disconnect battery ground cable.

• Drain coolant.

1. Cooling Fan Assembly

2. Fan Shroud

3. Power Steering Pump Drive Belt (P/S Model)

4. A/C Compressor Drive Belt (A/C Model)

5. AC Generator Drive Belt

6. Power Steering Pump Bracket Assembly (P/S Model)

7. Crankshaft Damper Pulley

8. Timing Pulley Upper Cover

9. Timing Pulley Lower Cover

10. Flange; Camshaft Pulley

11. Timing Belt

Above works refer to “TIMING BELT (Belt Type)” Section

in this manual.

6A1-73-1.tif
