6C - 64 ENGINE FUEL

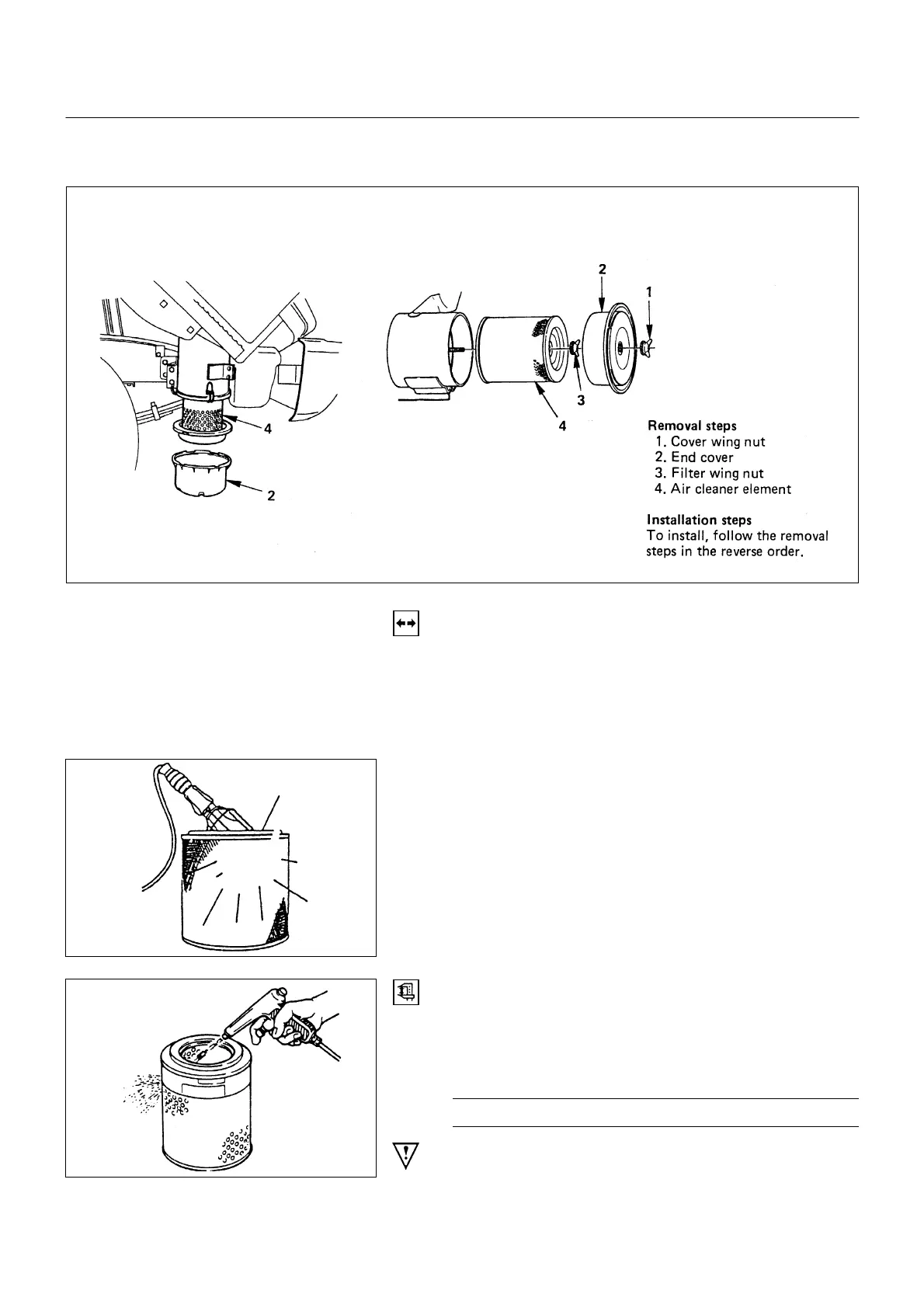

AIR CLEANER ELEMENT

REMOVAL

1. Cover Wing Nut

2. End Cover

3. Filter Wing Nut

4. Air Cleaner Element

Clean

• Wipe out the inside of the Air Cleaner assembly.

• Wipe off the Cover

Inspection

• The air filter with a light for fears rears or holes.

Cleaning Method

Dust Fouled Element

Rotate the element with your hand while applying compressed

air to the inside of the element. This will blow the dust free.

Compressed air pressure kPa (kg/cm

/psi)

392 - 490 (4 - 5/57 - 71)

CAUTION

Do not bang the element against another object in an

attempt to clean it. Damage to the element will result.

6C-63-1.tif

6C-63-2.tif

6C-63-3.tif
