6A1 – 48 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

OIL PAN

REMOVAL

Preparation:

• Disconnect battery ground cable.

• Lift up car.

• Drain engine oil.

NOTE

Install drain plug with new gasket.

N∙m(kg∙m/lb∙ft)

44 (4.5/33)

1. Vacuum Pump Oil Hose

• Remove oil hose !

from oil pan.

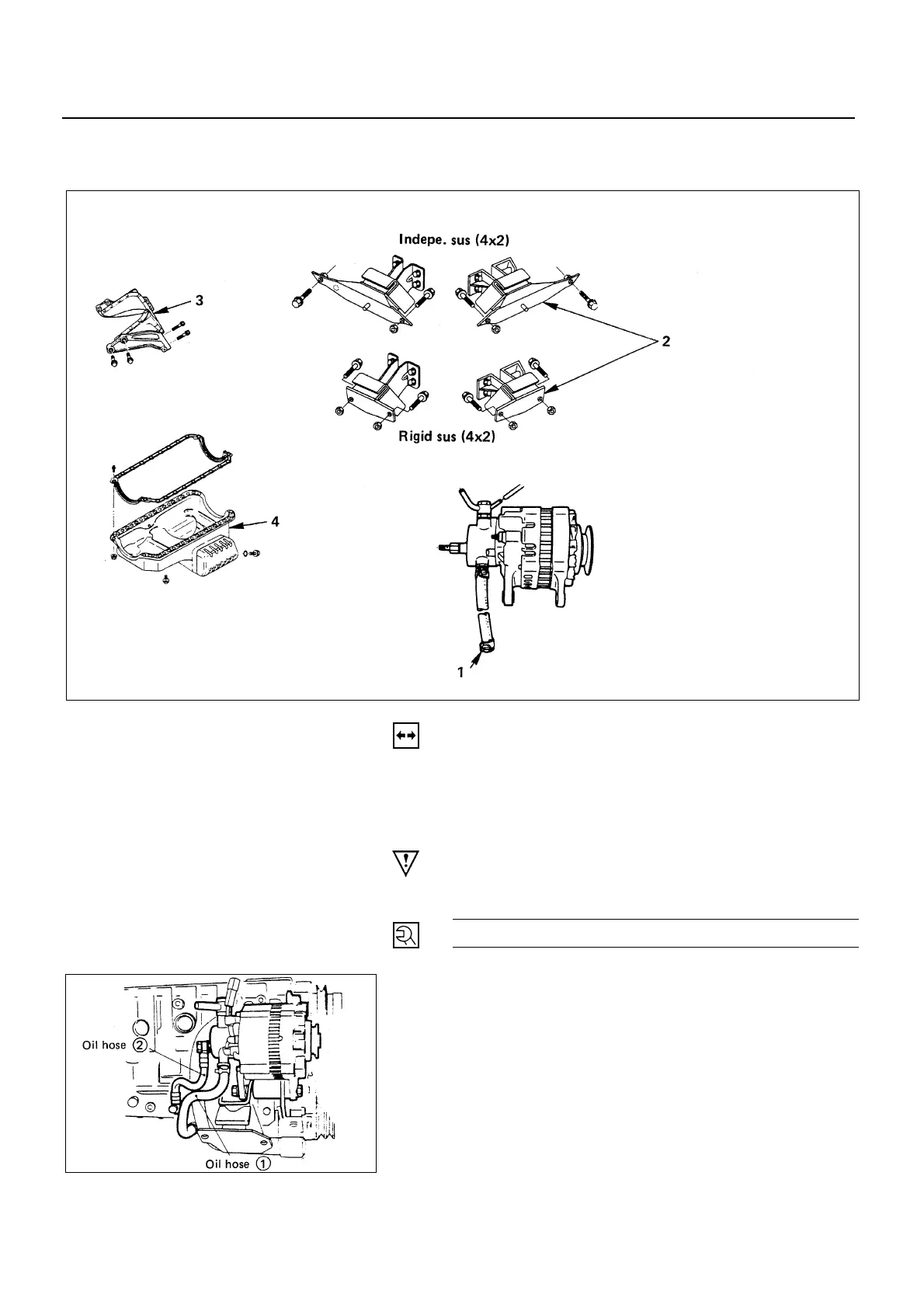

6A1-48-1.tif

6A1-48-2.tif

Removal steps

1. Vacuum pump oil hose

2. Engine mount bolts

3. Stiffener and space rubber

4. Oil pan Assembly

Installation steps

To install, follow the removal

steps in the reverse order
