SERVICE INFORMATION 00 – 51

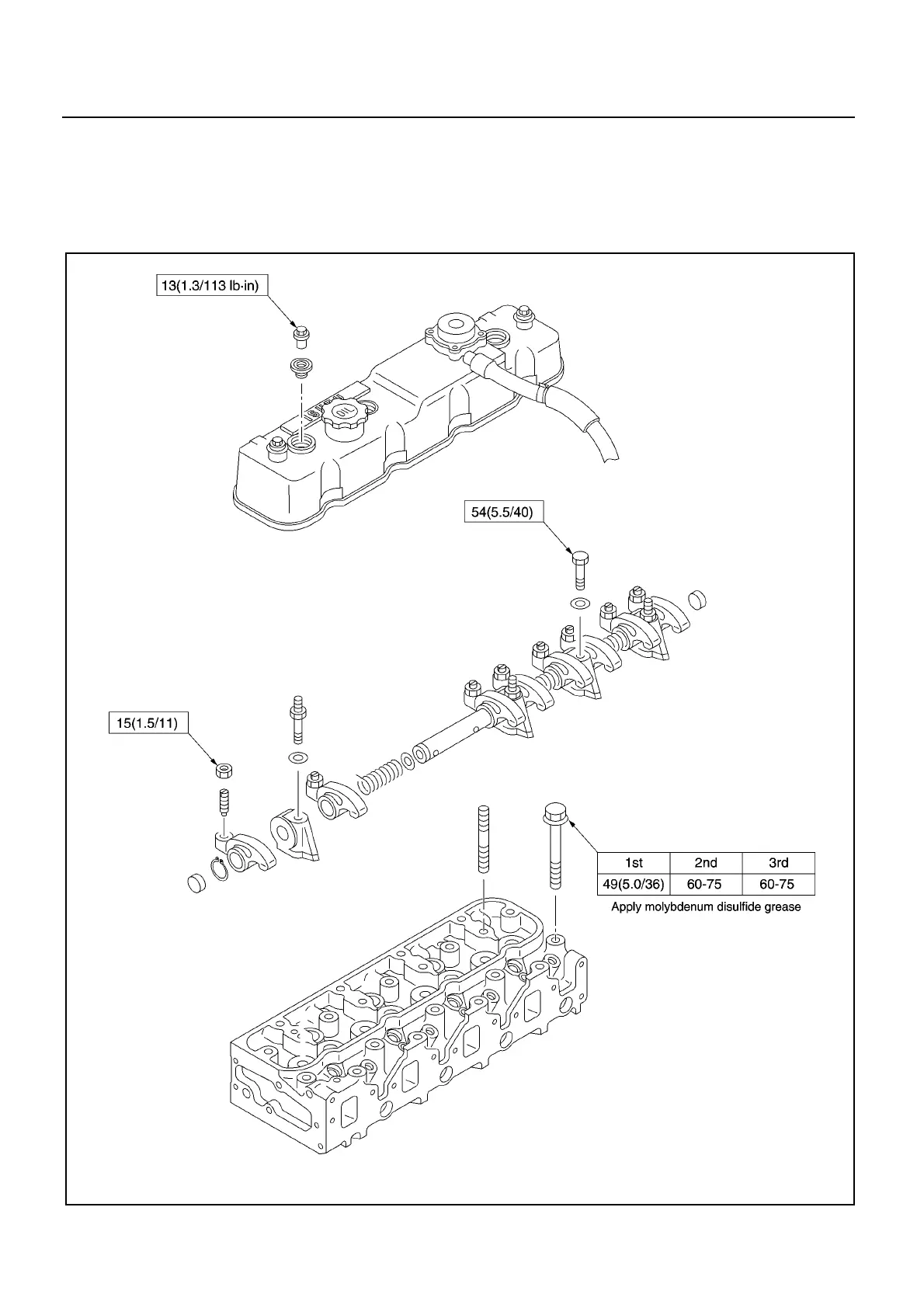

FIXING TORQUE

CYLINDER HEAD COVER, CYLINDER HEAD ROCKER,

SHAFT BRAKER

N∙m (kg∙m/lb∙ft)

011LX002.tif
