CHARGING SYSTEM 6D3 – 21

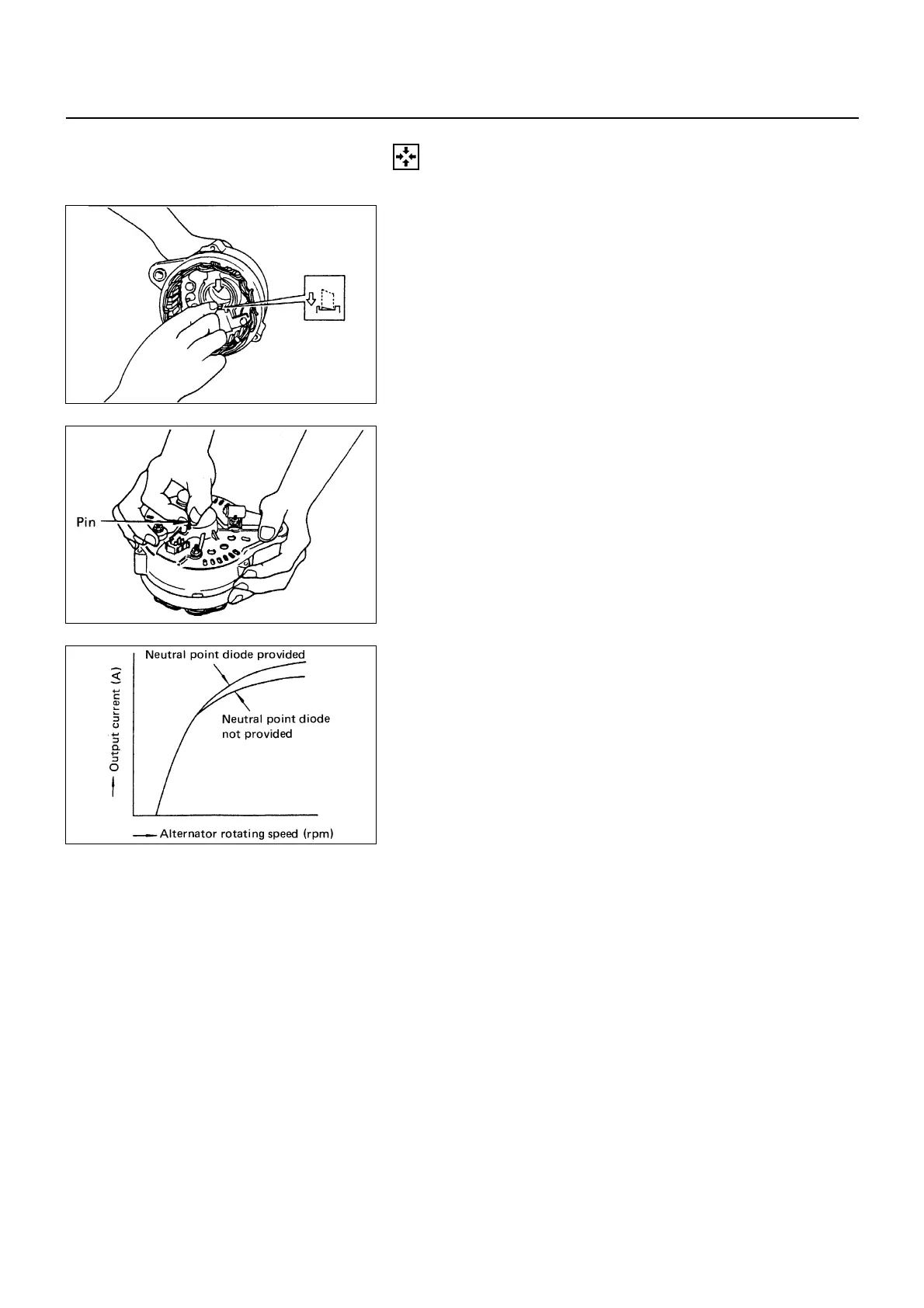

REASSEMBLY
Follow the same procedure as for disassembly in the
opposite order, paying special attention to the following
points:
•Brush
When fitting a new brush, be sure to see it so that the
free end of it is projecting 12.5mm (0.49 in) from the
holder.
• Rotor
Be sure to fit it after brush is supported by the brush
holder.
Otherwise, the rotor cannot be fitted or the brush may
be broken.
Output Characteristic
As alternator speed increases, the output gradually
increases as shows in the illustration.
In other words, when alternator speed exceeds a certain
limit to cause to enlarge output current, supply capacity will
further increase owing to the neutral point diodes.
6D3-21-1.tif
6D3-21-2.tif
6D3-21-3.tif
