GENERAL ENGINE MECHANICAL 6A – 29
REASSEMBLY
8. Oil Pump Body
7. Driven Gear
6 Pump Cover
5. Strainer
• Install the strainer assembly and tighten the strainer
assembly fixing bolts.
N∙m (kg∙m/lb∙ft)
16 (1.6/12)
4. Oil Pump Assembly
• Apply molybdenum mixed engine oil to drive gear of
camshaft and driven gear of oil pump.
• Tighten the oil pump fixing bolt to the specified torque.
N∙m (kg∙m/lb∙ft)
19 (1.9/14)
3. Oil Pan Assembly
• Apply the recommended liquid gasket or its equivalent
to the No. 5 bearing cap arches, the grooves, the
cylinder block and the timing gear case filting face at
the positions shown in the illustration.
• Fit the gasket rear lipped portion into the No. 5 groove.
• Be absolutely sure that the lipped portion is fitted
snugly into the groove.
• Install the oil pan to the cylinder body.
• Tighten the oil pan bolts to the specified torque.
Oil Pan Bolt Torque N∙m (kg∙m/lb∙ft)
19 (1.9/14)

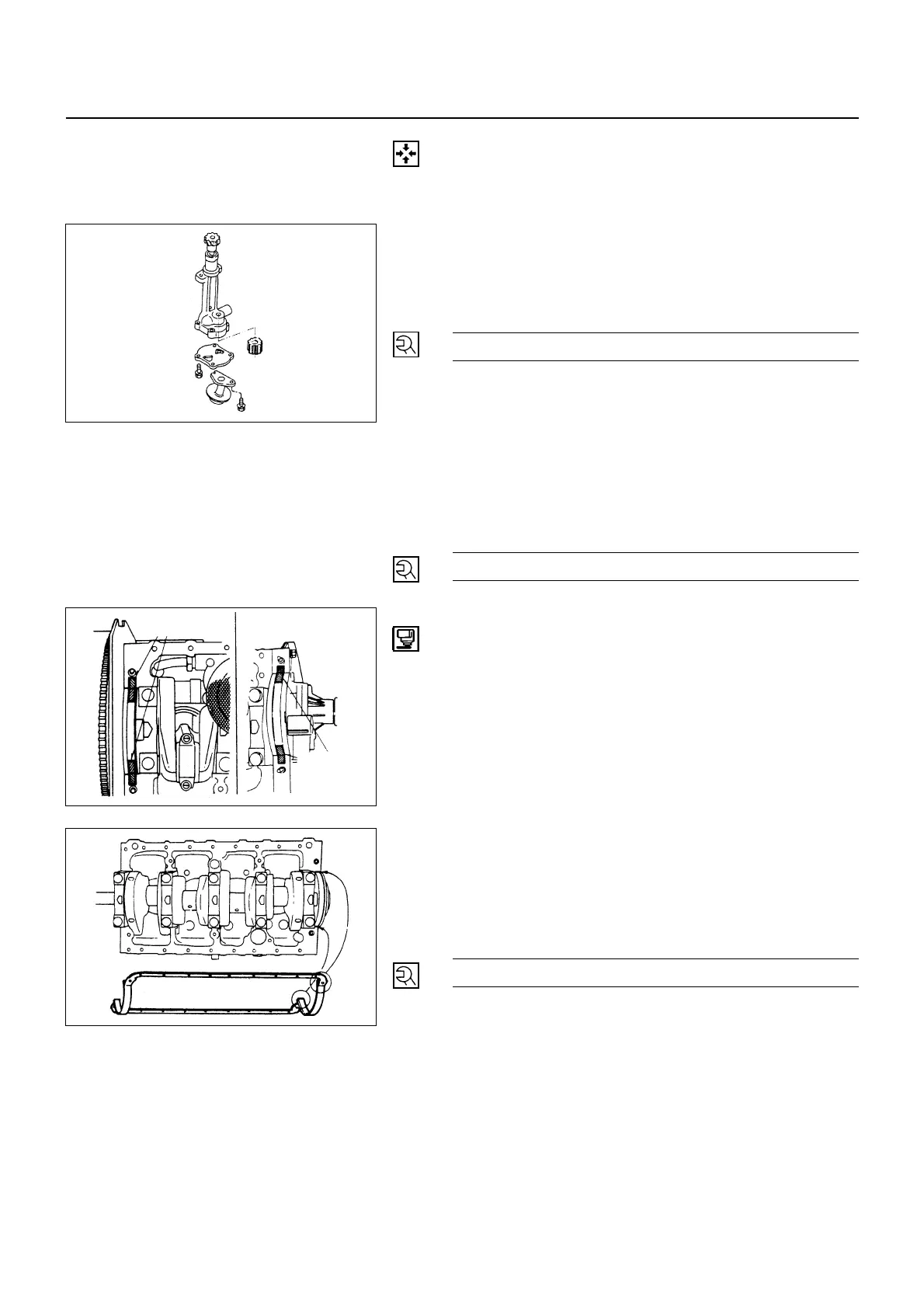

6A-29-1.tif
6A-29-2.tif
6A-29-3.tif
