ENGINE FUEL 6C - 13
INSTALLATION (4JG2 Engine)
CAUTION

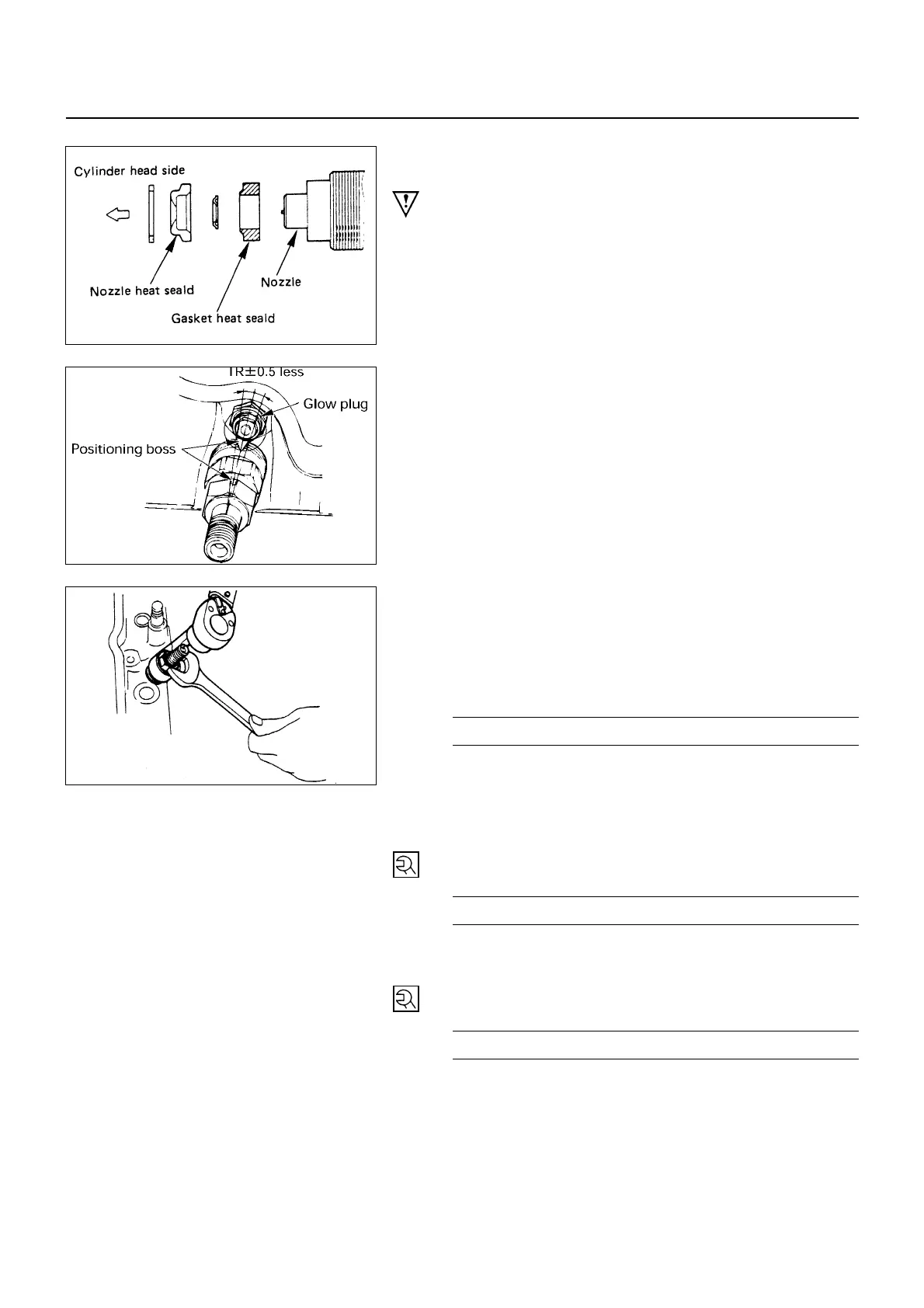

• Nozzle and assembling should be as illustrated.
• Use new heat shield and new corrugated washer.
3. Injection Nozzle (4JG2 only)
• Lightly tighten the holder nut to suck extent that the
nozzle holder can turn one word and one word.
• Set positioning confirmation drilled hole (φ2) within a
nozzle turning angle of ±5° against the cylinder head-
side positioning boss.
• Apply a wrench as illustrated and tighten the holder nut
to the specified torque using a special tool.
CAUTION
• After tightening the holder nut, make sure that the
drilled hole makes ±5° or smaller with the cylinder
head-side positioning boss.
• When mounting leak off pipe, injection nozzle and
pipe, clean then with air so that dust may not
enter.
Nozzle Fixing Torque N∙m (Kg∙m/lb∙ft)
64 (6.5/47)
Wrench: nozzle holder 5-8840-0259-0
2. Leak Off Pipe
• Mount using a new copper washer
• Tighten nut to the specified torque.
Pipe Nut Torque N∙m (Kg∙m/lb∙ft)
29 (3.0/22)
1. Injection Pipe
• Connect injection pipe to nozzle holder.
• Tighten the injection pump side.
Sleeve Nut Torque N∙m (Kg∙m/lb∙ft)
29 (3.0/22)
• Fit pipe clip in specified position.
