4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 37

CYLINDER HEAD ASSEMBLY AND GASKET

REMOVAL

Preparation:

• Disconnect battery ground cable.

• Drain coolant from the radiator and engine.

1. Radiator Hose Upper

• Disconnect upper radiator hose from engine side.

6A1-37-1.tif

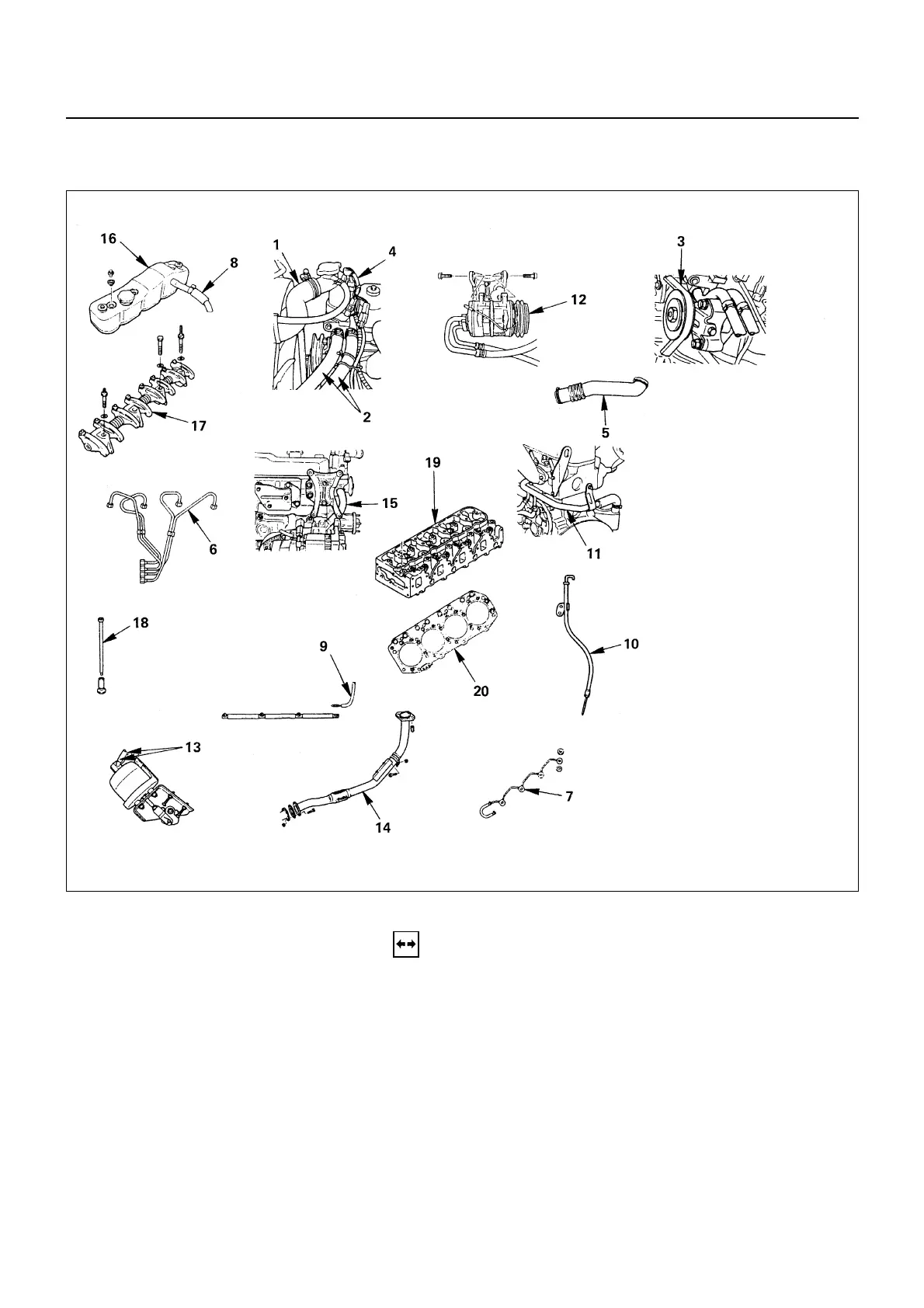

Removal steps

1. Radiator hose upper

2. Heater hose

3. A/C Compressor drive

belt

4. Engine harness

5. Air intake duct

6. Injection pipe

7. Leak off pipe

8. PCV hose

9. Glow plug harness

10. Oil level gauge guide

tube

11. Oil cooler water pipe

12. A/C Compressor

Assembly

13. Vacuum actuator hose

14. Front exhaust pipe

15. By-pass hose

16. Cylinder head cover

17. Rocker arm shaft

18. Push rod

19. Cylinder head

Assembly

20. Cylinder head gasket

Installation steps

To install, follow the

removal steps in the

reverse order.
