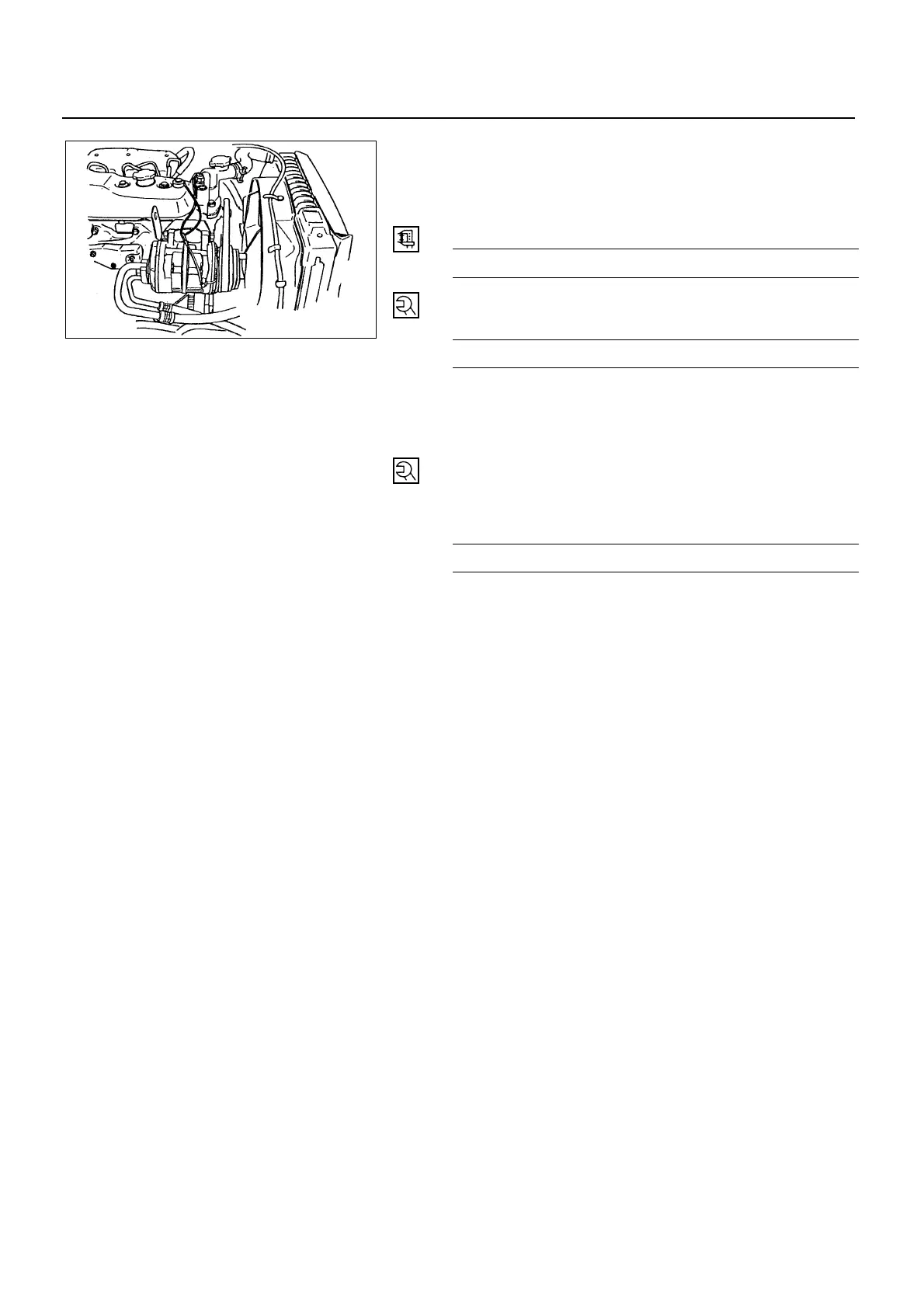

6A1 – 36 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

3. Power Steering Pump Drive Belt (P/S pump model)

• Install PS pump drive belt and adjust belt tension.

• Depress the drive belt mid-portion with a 98N

(10kg/22lb) force.

Drive Belt Deflection mm (in)

8 (0.31) - 12 (0.47)

• Tighten the idler lock nut to the specified torque.

N∙m (kg∙m/lb∙ft)

27 (2.8/20)

2. Fan Shroud

• Install the fan shroud and reservoir tank hose.

1. Cooling Fan Assembly

• Mount fan pulley, distance piece, and cooling fan asm

(in this order) on the water pump, and tighten to the

specified torque.

N∙m (kg∙m/lb∙in)

8 (0.8/69)

• Connect battery ground cable.

• Pour coolant.

• Start the engine and check coolant leakage.

6A1-36-1.tif
