CHARGING SYSTEM 6D3 – 15

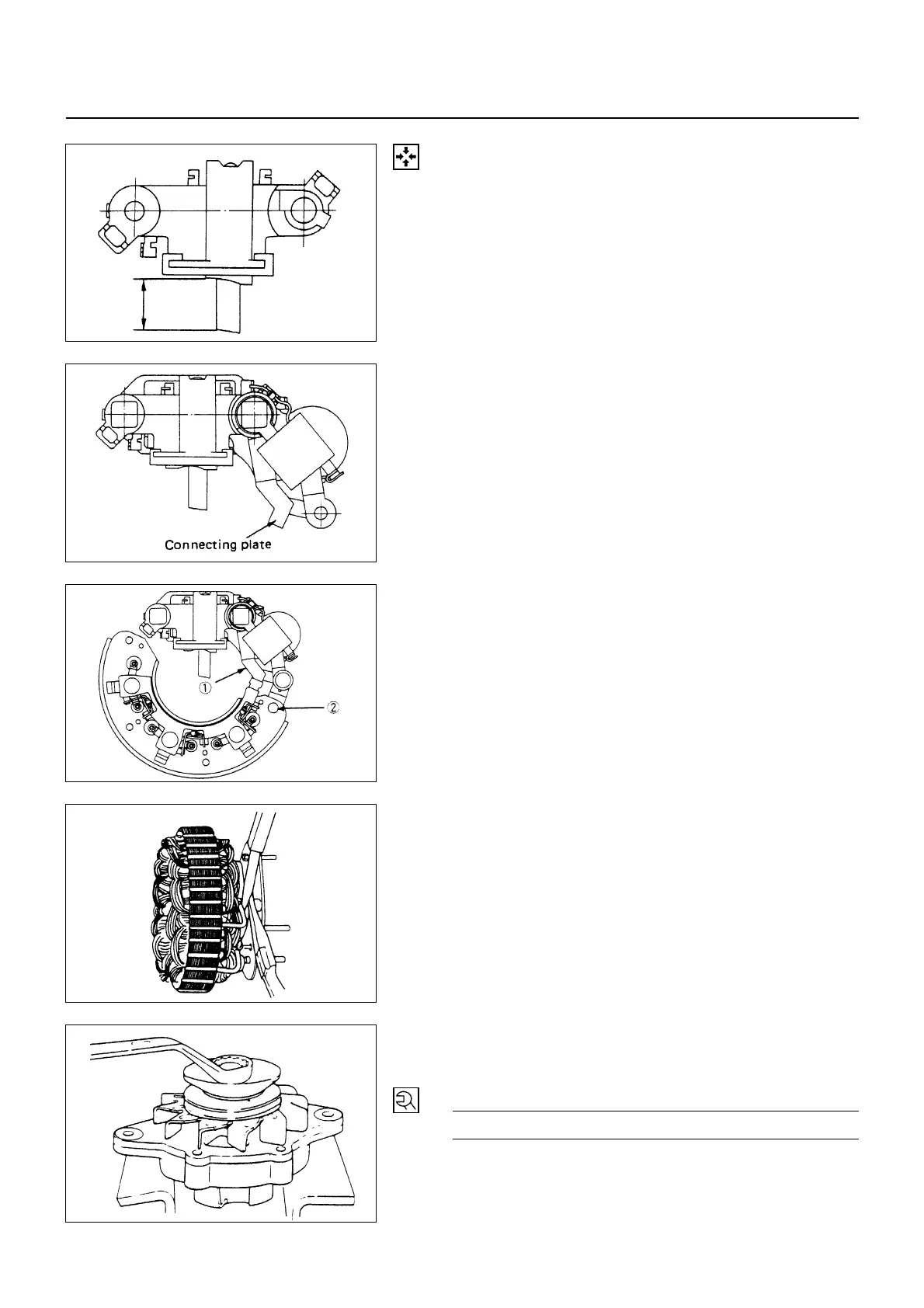

REASSEMBLY
13. Brush Holder
12. IC Regulator Assembly
• Hold the brush in the holder as shown in the illustration
and solder the lead wire.
• Put the IC regulator on the brush holder and press the
bolt.
Bushing and connecting plate must be installed when
pressing the bolt.
11. Diode
• Connect the terminals by fixing the rivet at 1 and
soldering the terminal at 2.
10. Stator
• When connecting stator coil leads and diode leads
using solder, use long-nose pliers and finish the work
as quickly as possible to prevent the heat from being
transferred to the diodes.
9. Rear Cover
8. Terminal Bolt and Nut
7. Rear Bearing
6. Rotor
• Cover vice with copper plates, clamp the rotor with the
vice, and tighten nut to the specified torque.
Pulley Nut Torque N∙m (kg∙m/lb∙ft)
90 (9.2/67)
6D3-15-1.tif
6D3-15-2.tif
6D3-15-3.tif
6D3-15-4.tif
6D3-15-5.tif
