6D3 – 16 CHARGING SYSTEM
5. Stator and Rear Cover Assembly
4. Rotor and Front Cover Assembly

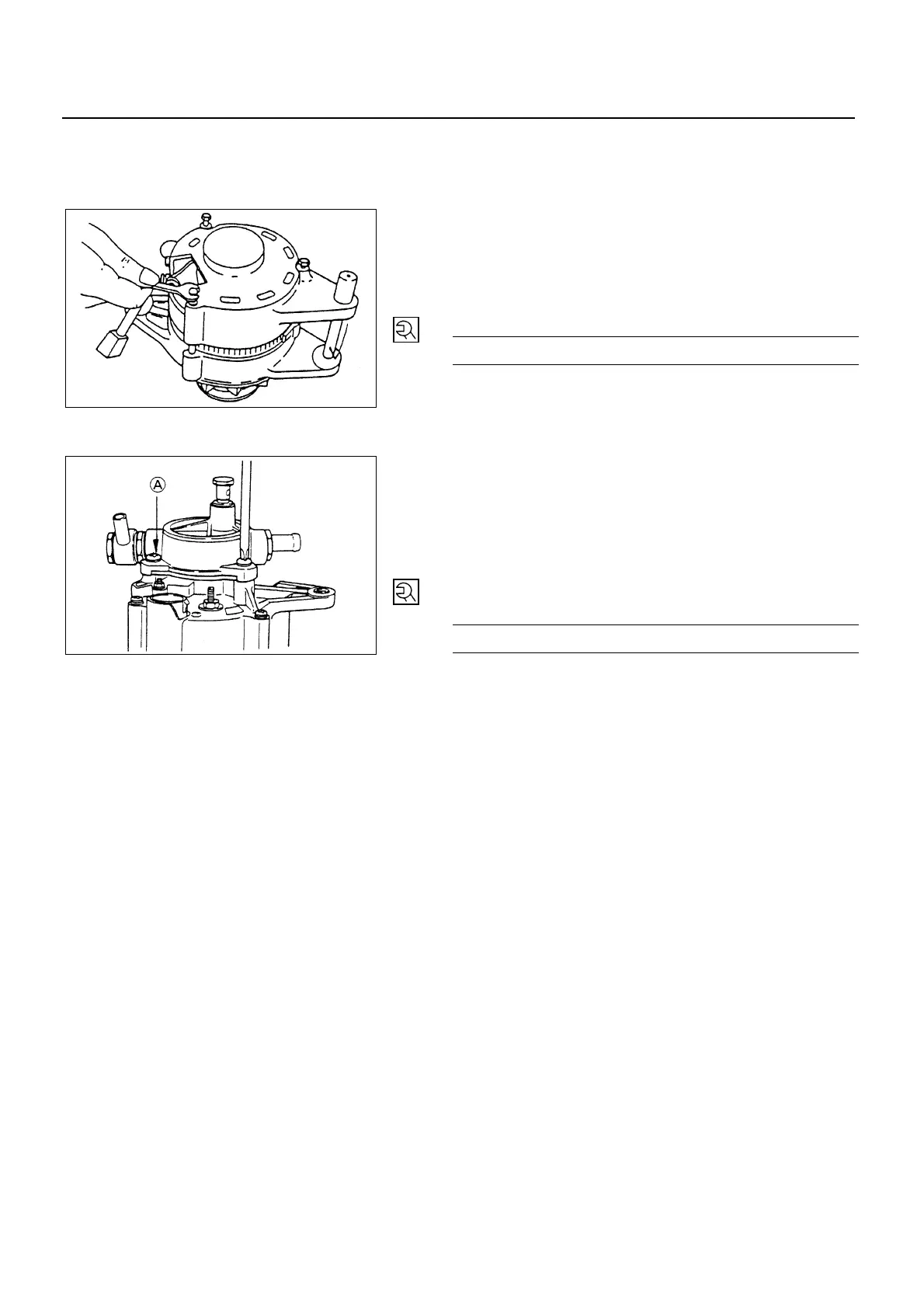

3. Through Bolts
• Place guide bar through the holes in front cover and
rear cover flange for alignment, then install the through
bolts.
• Tighten the through bolts to the specified torque
Through Bolts Torque N∙m (kg∙m/lb∙in)
3.5 (0.36/31)
2. Read wire
1. Vacuum Pump
• Install and mount the housing to the generator using 3
bolts.
• Pour engine oil (5 cc or so) in through the filler port,
then check that generator pulley can be turned
smoothly with hand.
• Tighten the pump fixing bolts to the specified torque.
Pump Fixing Bolts Torque N∙m (kg∙m/lb∙in)
3.5 (0.36/31)
• Pour engine oil (5 cc or so) throuh the filler port, and
then check the pulley for smooth rotation.
6D3-16-1.tif
6D3-16-2.tif
To Next Page
