GENERAL ENGINE MECHANICAL 6A – 17

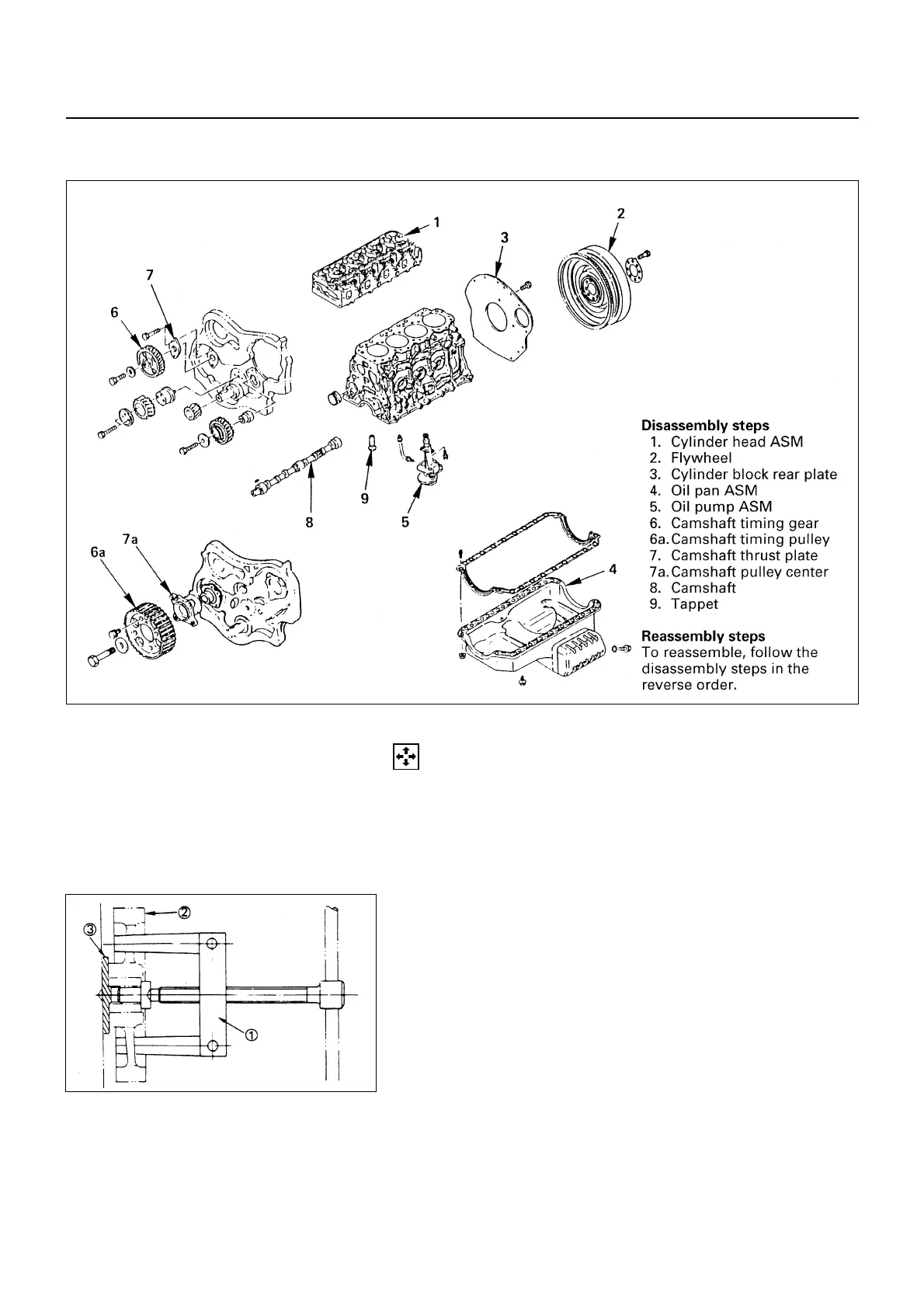

CAMSHAFT, TAPPET

DISASSEMBLY

1. Cylinder Head Assembly

2. Flywheel

3. Cylinder Block Rear Plate

4. Oil Pan Assembly

5. Oil Pump Assembly

6. Camshaft Timing Gear (Gear Drive Model)

• Remove the camshaft timing gear bolt from the

camshaft.

NOTE:

Hold the camshaft stationary to prevent the camshaft

from turning.

• Use the universal puller

to pull out the camshaft

timing gear

• Universal Puller: 5-8521-0002-0

Remove the thrust plate

6A-17-2.tif

6A-17-1.tif
