CHARGING SYSTEM 6D3 – 9
UNIT REPAIR
DISASSEMBLY

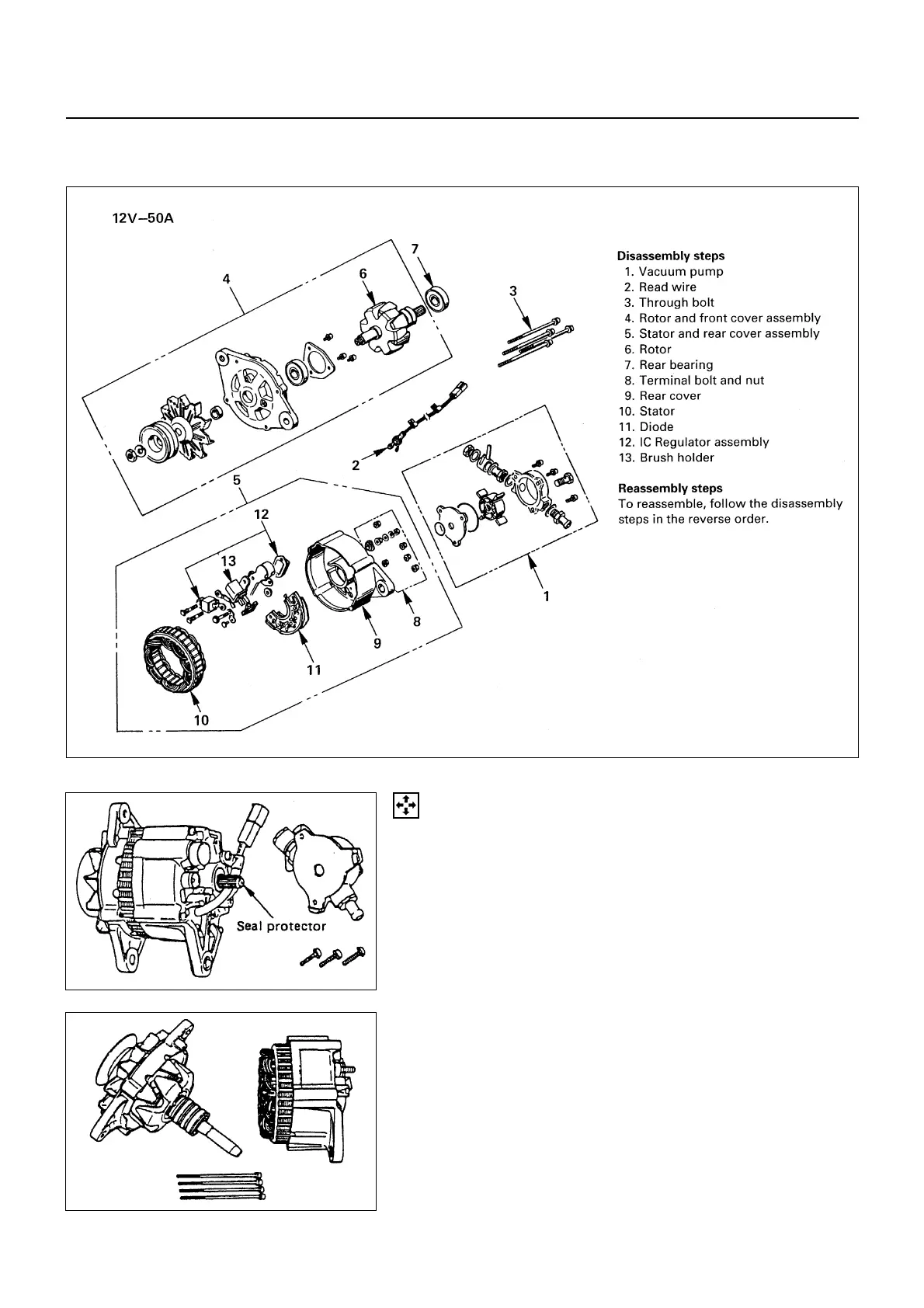

1. Vacuum Pump
• Dram fluid from discharged port.
• Remove the vacuum pump fixing bolts. Hold the
center plate and remove the vacuum pump
horizontally in direction in line with the rotor shaft.
2. Read Wire
3. Through Bolts
4. Rotor and Front Cover Assembly
5. Stator and Rear Cover Assembly
• Insert a driver into the clearance between the front
cover and the stator core, and remove the assembly.
NOTE:
Take care not to damage the stator coil with the
driver. When the assembly will not come off, hold
down the rear cover and hit the end face of the shaft
gently with a plastic hammer to detach it.
6D3-9-1.tif
6D3-9-2.tif
6D3-9-3.tif
