6D3 – 8 CHARGING SYSTEM

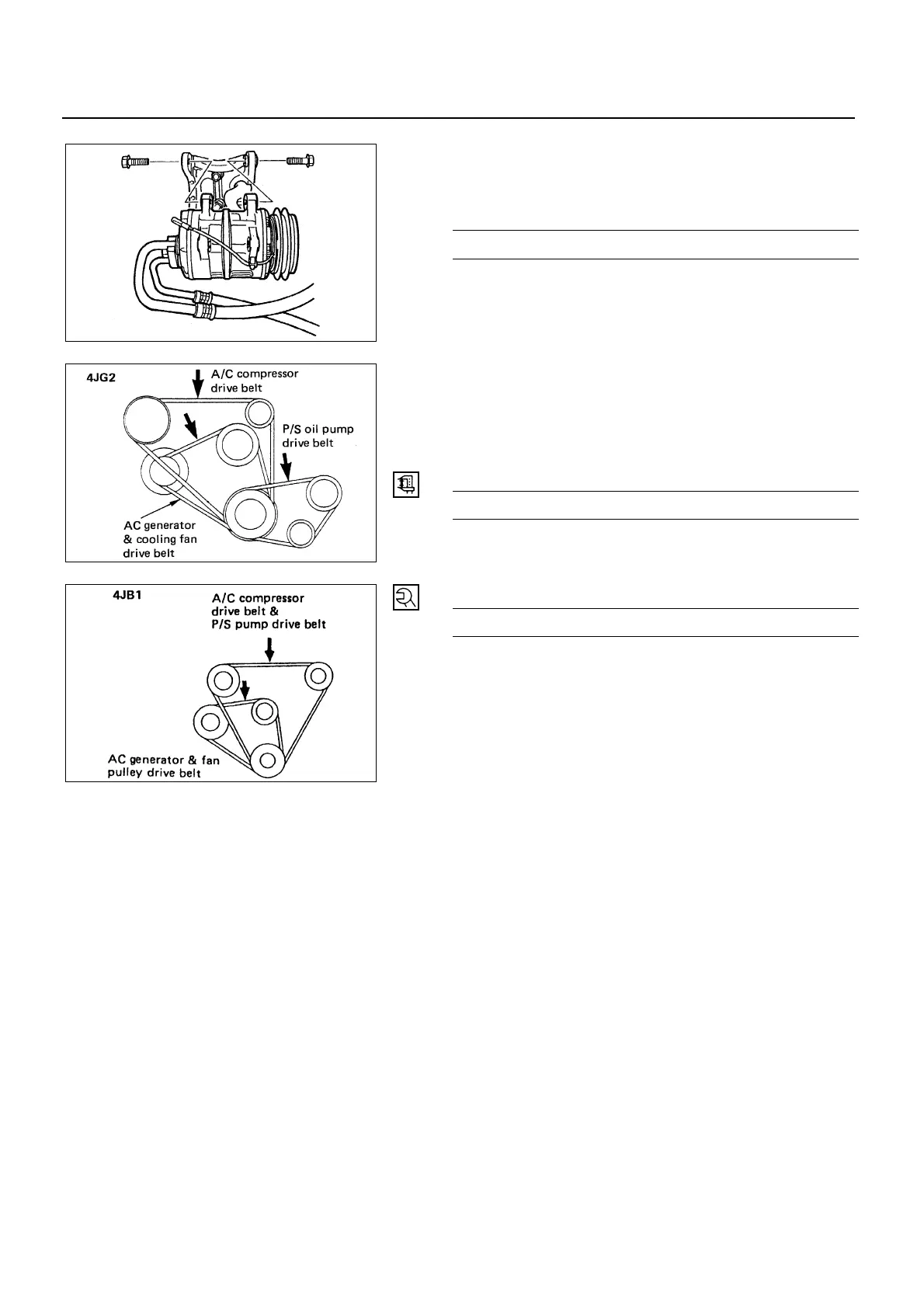

2. A/C compressor Assembly (A/C Model)
• Install the compressor assembly and tighten bolts to
the specified torque.
Compressor Bolt Torque N∙m (kg∙m/lb∙ft)
19 (1.9/14)
• Connect the magnetic switch harness connector.
1. A/C compressor Drive Belt (A/C Model)
• Install A/C compressor drive belt and adjust belt
tension.
• Depress the drive belt and mid-portion with a 98N (10
kg/ 22 lb) force.
Drive Belt Deflection mm (in)
8 (0.31) - 10 (0.39)
• Tighten the idler lock nut to the specified torque.
Idle Pulley Lock Nut Torque N∙m (kg∙m/lb∙ft)
27 (2.8/20)
• Connect the battery ground cable.
6D3-8-1.tif
6D3-8-2.tif
6D3-8-3.tif
