6B - 6 ENGINE COOLING

ON-VEHICLE SERVICE

WATER PUMP

REMOVAL

Preparation:

• Disconnect battery ground cable.

• Drain coolant

1. Fan Shroud

• Remove the reservoir tank hose, bypass hose and fan

guide.

2. Cooling Fan Assembly

• Remove lock nut and take out cooling fan assembly.

3. Power Steering Pump Drive Belt

• Loosen the idler pulley lock nut and loosen adjust bolt,

and remove the drive belt.

4. A/C Compressor Drive Belt

• Loosen A/C compressor idler pulley lock nut and

adjust bolt and remove the drive belt.

6B-5-2.tif

6B-5-3.tif

6B-5-1.tif

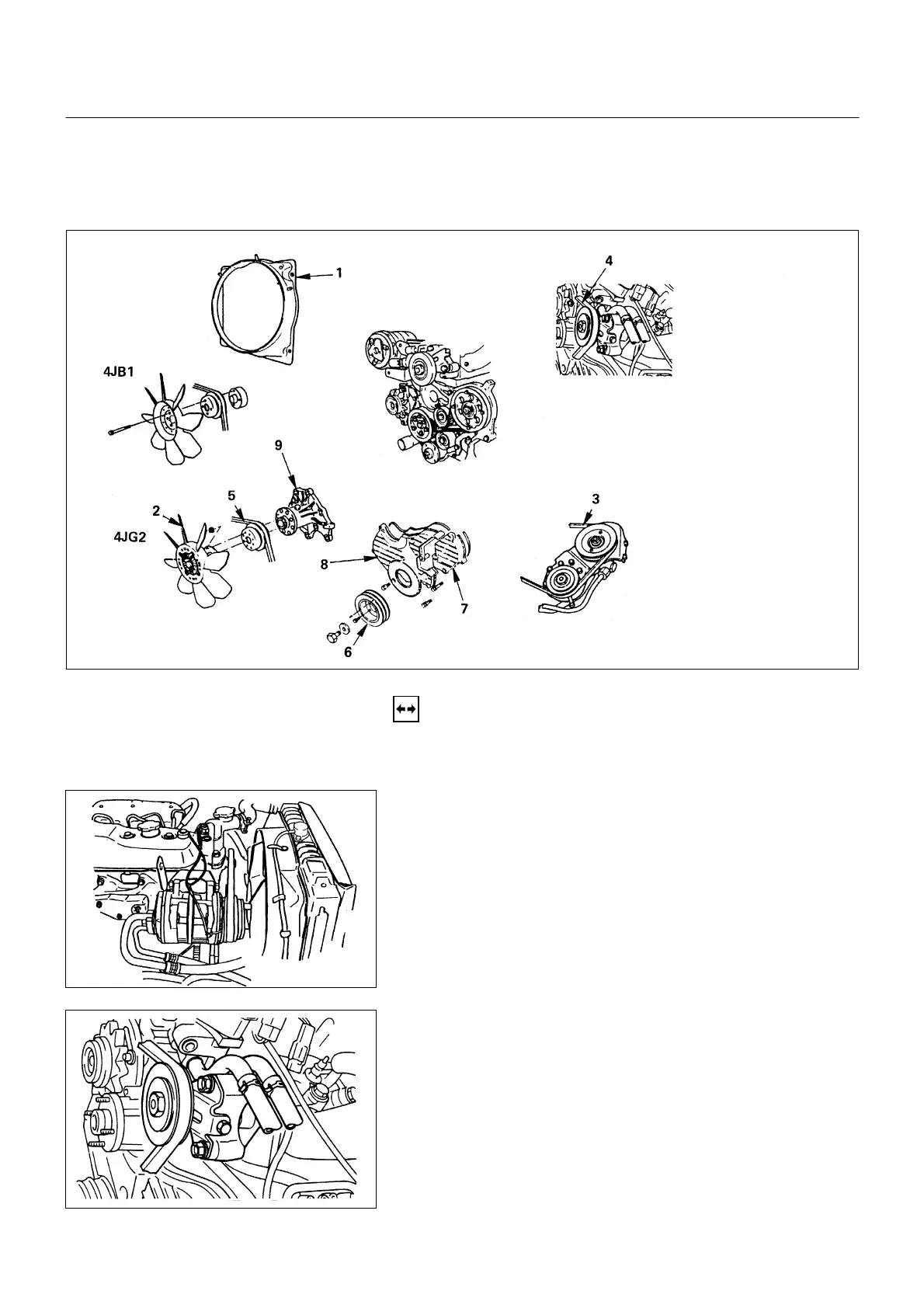

Removal steps

1. Fan shoroud

2. Cooling fan Assembly

3. Power steering pump drive

belt

4. A/C compressor drive belt

5. AC generator drive belt

6. Crankshaft damper pulley

7. Timing pulley upper cover

8. Timing pulley lower cover

9. Water pump Assembly

Installation steps

To install, follow the removal

steps in the reverse order.
