STARTING SYSTEM 6D2 – 11
REASSEMBLY
To install, follow the removal steps in the reverse order,
noting the following points:
• Magnetic Switch
• Idle Gear
• Clutch assembly
• Housing
1) Install the clutch asm to the magnetic switch.
2) Install the idle gear and housing.
Note:

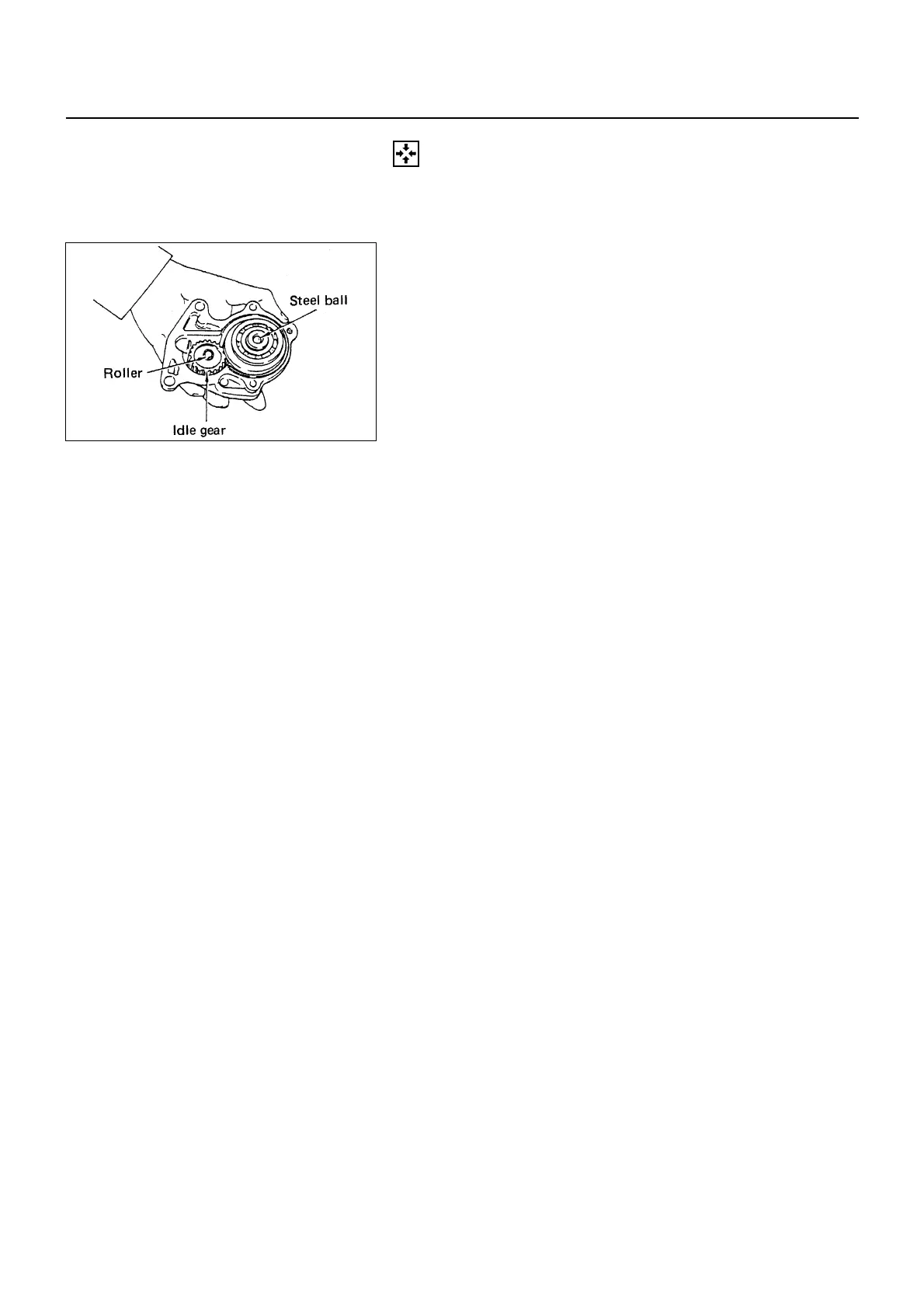

Do not fail to assemble the steel ball and the spring
between the clutch and magnetic switch.
Assemble the roller to the idle gear in advance.
