6A1 – 38 4JB1/4JB1T/4JB1TC/4JG2 - ENGINE

2. Heater Hose

• Disconnect heater hose from heater pipe.

3. A/C Compressor Drive Belt

• Loosen idler lock nut.

• Loosen adjust bolt and remove drive belt.

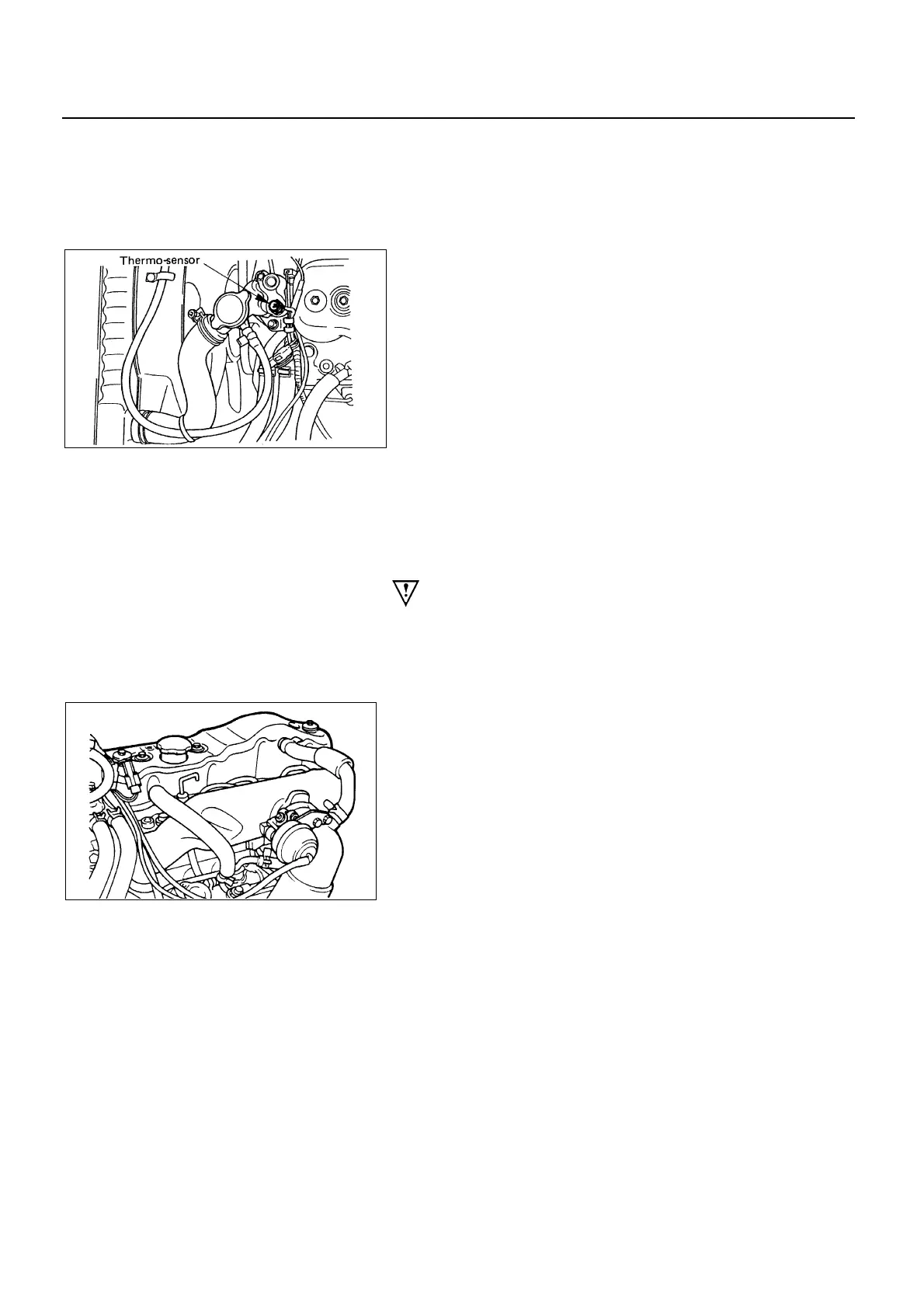

4. Engine Harness

• Disconnect harness connectors from units on

thermostat housing.

5. Air Intake Duct

• Remove the clip and air intake duct.

6. Injection Pipe

• Release injection pipe clip.

• Remove flare nut injection pump side.

• Remove flare nut injection nozzle side and remove

injection pipe.

NOTE:

Plug the injection nozzle holder and the delivery

holder to prevent the entry of foreign matters into

them.

7. Leak Off Pipe

• Remove the leak off pipe side of leak off hose.

8. PCV Hose

• Remove the PCV hose from air intake pipe.
