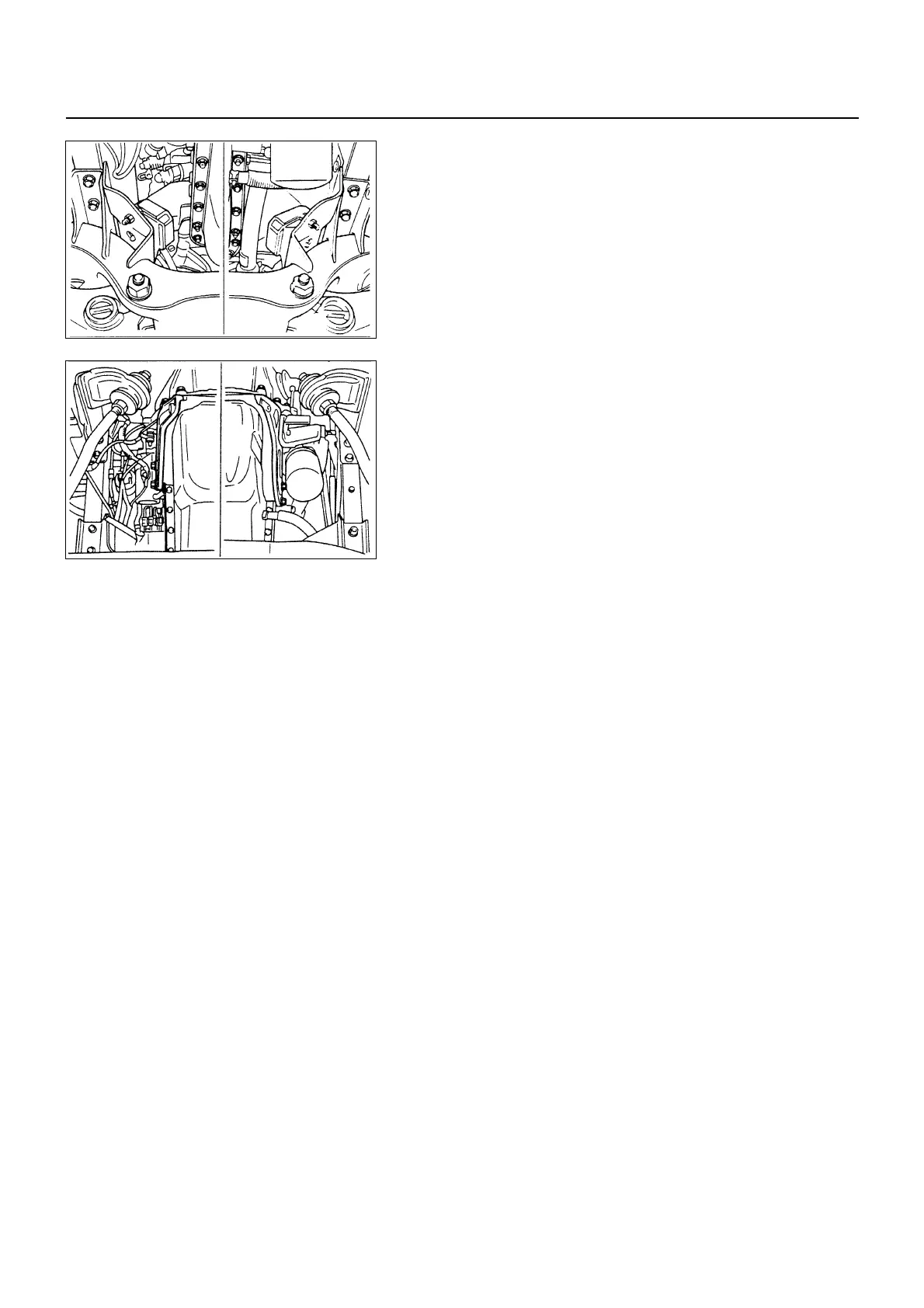

4JB1/4JB1T/4JB1TC/4JG2 – ENGINE 6A1 – 49

2. Engine Mount Bolts

• Remove the engine mount bolts right & left side.

3. Stiffener & Space Rubber

• Remove the exhaust pipe bracket.

• Remove the stiffener from of the oil pan left & right

side.

• Take out space rubber.

4. Oil Pan Assembly

• Raising the engine about 50mm.

• Remove the oil pan from cylinder block.

6A1-49-1.tif

6A1-49-2.tif
