Power Supply Function
Copyright © Itech Electronic Co., Ltd. 40

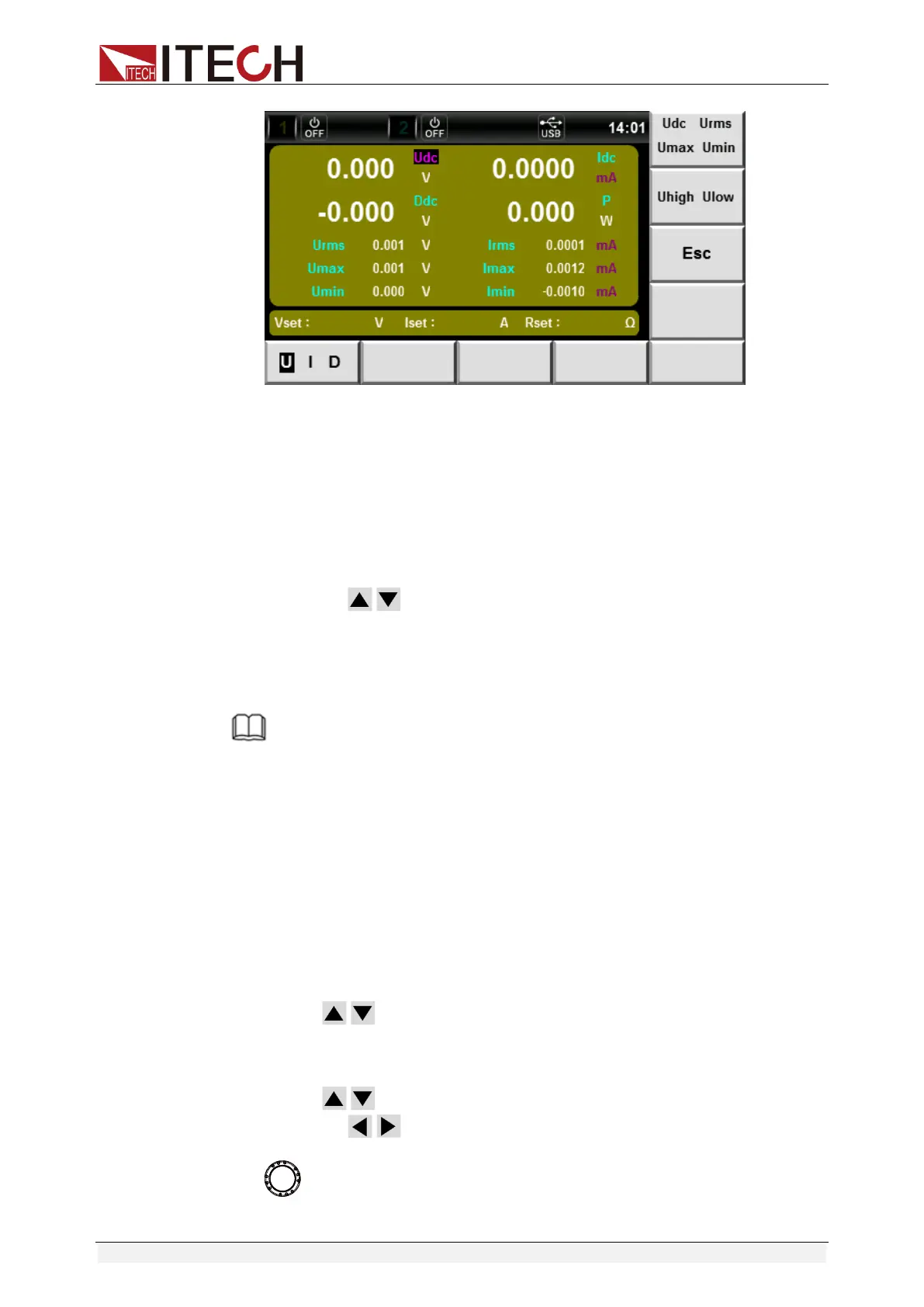

4. Press the [U I D] soft key to select the measurement function. For example,
when the [U I D] key is pressed once, the displayed measurement function
will be switched once in the U/I/D sequence. Different measurement
parameters are displayed when different functions are selected.
⚫ I (Current): Irms, Idc, Imax, Imin, Ihigh, Ilow
⚫ U (Voltage): Urms, Udc, Umax, Umin, Uhigh, Ulow
⚫ D (DVM): Ddc, Drms, P
5. Press the “ ” key and move the cursor to select the parameter
displayed in the interface (prunosus font background). Press the right soft
key corresponding to this parameter to adjust the parameter displayed at
present. Urms, rms, P and Ihigh are set in sequence.
6. Press the [Esc] soft key to exit Configuration interface.
Note
When the soft key corresponding to the parameter is pressed once, the parameter will be
selected in sequence.
4.3 Setting of Output Parameters
Voltage setting
The voltage setting ranges from 0V to maximum output voltage. The voltage
can be set in the [Source] interface. The output voltage can be set on the front
panel according to the two methods below.
⚫ Numeric keys (0-9) input:
By the key, move the cursor to the Vset setting place and input
the voltage value to be set. Press the [OK] key.
⚫ Step-by-step input:
By the key, move the cursor to the Vset setting place. Press the
Right/Left ( ) key in the Arrow keys to select the high and low
position to be slightly adjusted (black font background). Rotate the Knob
to adjust the voltage set value.
