Waveform Display Function
Copyright © Itech Electronic Co., Ltd. 49
2. By the Knob or the key, select the vertical calibration (V/grid) of
voltage or current.
3. Press the [OK] key to confirm the setting.
Adjust channel vertical position
When pressing the [Knob] soft key to select the “Volt” or “Ampe” or “DVM”,
rotate the Knob to upward or downward move the waveform of
voltage/current/DVM, and display the difference between the grounding level
and vertical center of each channel value under the screen.
5.4 Setting of Trigger Configuration
When you need to enable the trigger function, you should select the trigger
source, trigger mode, trigger slope and other trigger-related configuration.
Detailed steps are as follows:
Operation steps

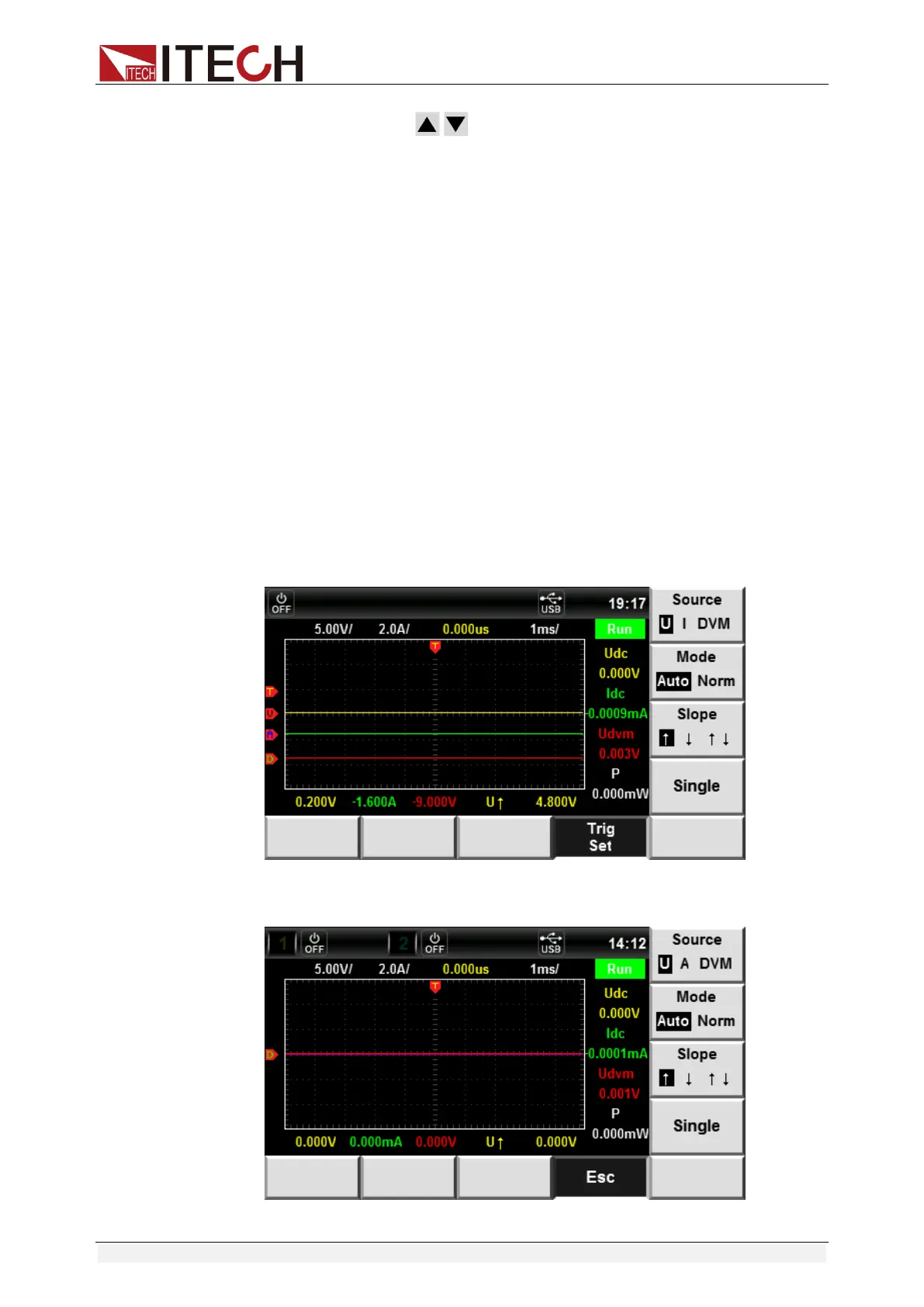

1. On the Waveform Display interface, press the [Trig Set] soft key to enter
the Trigger Setting interface, as shown below:
⚫ IT6411/IT6431/IT6432/IT6433/IT6411S/IT6432S
⚫ IT6402/IT6412/IT6412S
