Battery Simulation Function
Copyright © Itech Electronic Co., Ltd. 56

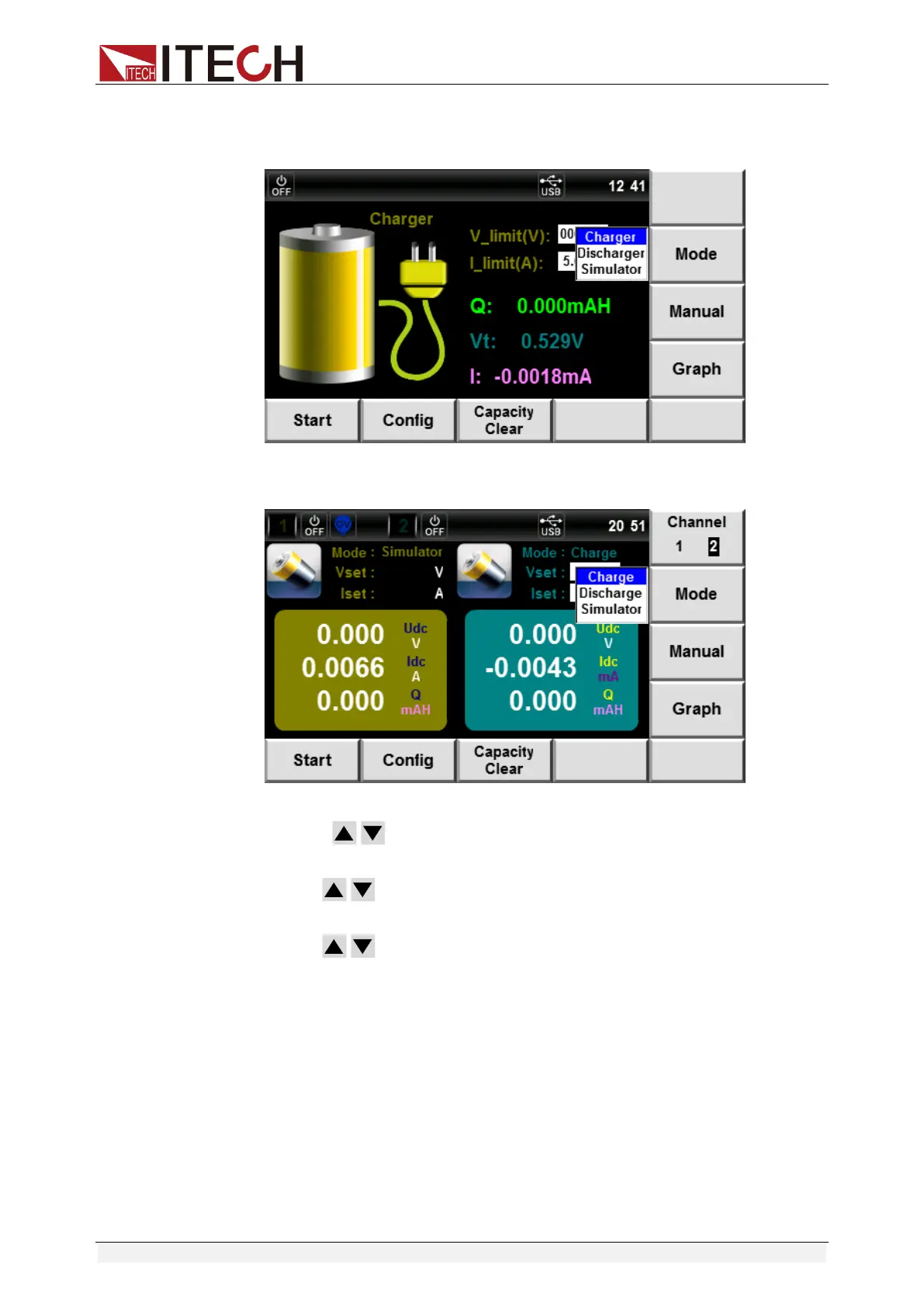

4. Press the right [Mode] soft key to select test mode.
⚫ IT6411/IT6431/IT6432/IT6433/IT6411S/IT6432S
⚫ IT6402/IT6412/IT6412S
5. Use the key or the Knob to select the “Charge” (blue font
background). Press the [OK] key for confirmation.
6. By the key, move the cursor to the Vset setting place of CH2 and
set the charging voltage value. Press the [OK] key for confirmation.
7. By the key, move the cursor to the Iset setting place of CH2 and
set the maximum charging current value. Press the [OK] key for
confirmation.
8. Press the [Config] soft key to enter the Stop Condition Configuration
interface for configuring the stop conditions of battery charging test. Press
the [Esc] soft key to return to the Test interface.
9. Press the [Start] soft key to start battery charging test (power output On).
10. When the battery meets the set charging stop conditions, the battery output
status will automatically be OFF. Or, press the [Stop] soft key to stop test.
6.3 Battery Discharging Function
The IT6400 series power supply is provided with battery discharging function.
