Battery Simulation Function
Copyright © Itech Electronic Co., Ltd. 57
After selecting the battery discharging mode (Discharge), the “Discharging
voltage” (Vset) and discharging current (Iset) under the discharging mode can
be set. During the discharging, the voltage, current and discharged capacity of
the battery can be observed.
Operation steps
1. Press the [Menu] key to enter the Menu Configuration page.
2. Select “Battery” to enter the Battery Simulation Function interface.
3. Press the right [Channel 1/2] soft key to select configuring channel CH2.
(Only IT6402/IT6412/IT6412S contain this step.)

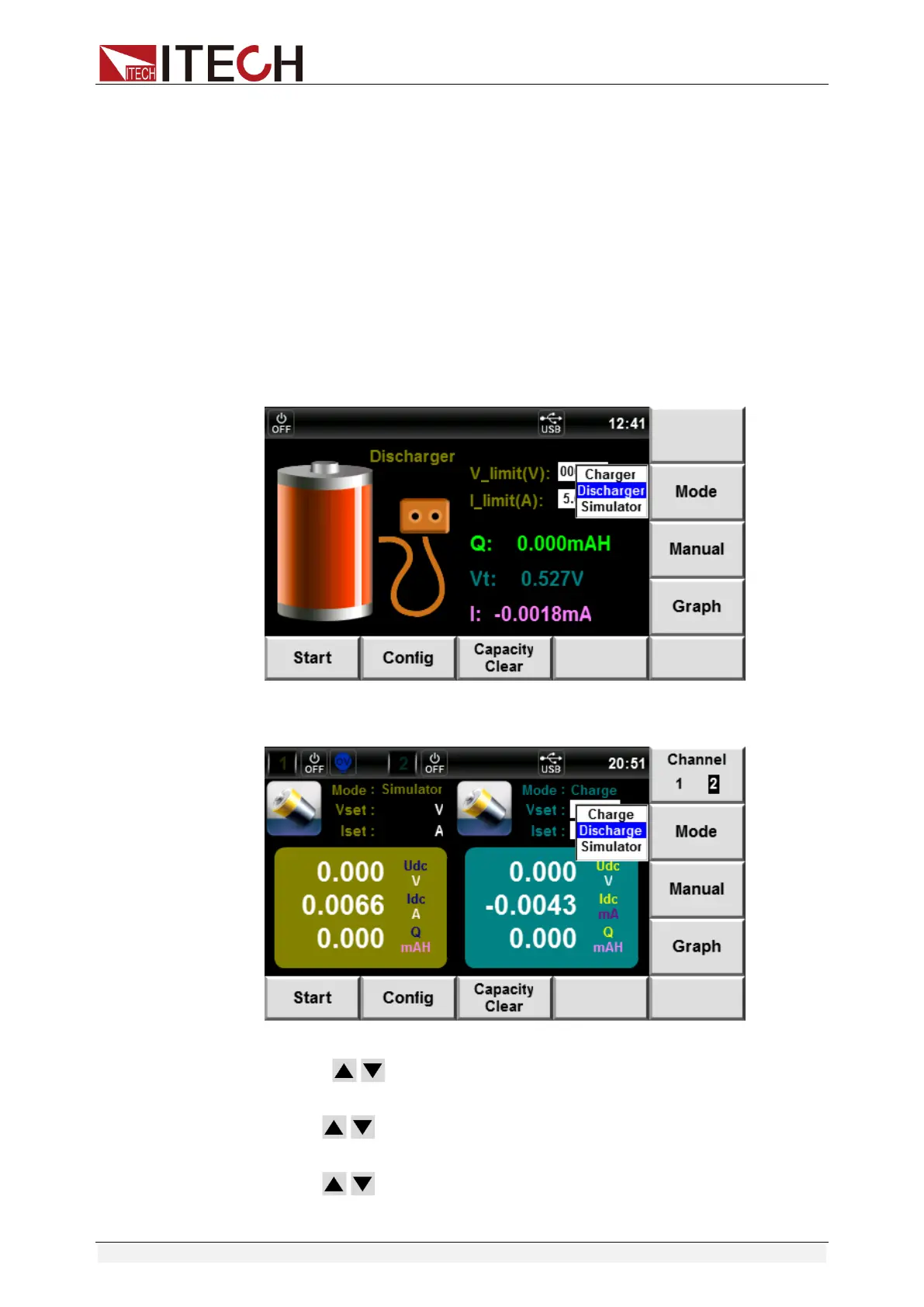

4. Press the right [Mode] soft key to select test mode.
IT6411/IT6431/IT6432/IT6433/IT6411S/IT6432S
IT6402/IT6412/IT6412S
5. Use the key or the Knob to select the “Discharge” (blue font
background). Press the [OK] key for confirmation.
6. By the key, move the cursor to the Vset setting place of CH2 and
set the discharging voltage value. Press the [OK] key for confirmation.
7. By the key, move the cursor to the Iset setting place of CH2 and
set the maximum discharging current value. Press the [OK] key for
confirmation.
