7.2 List Operation
Configure trigger mode
Before editing List on the panel, firstly set the trigger as Internal (manual
trigger). For details, refer to 3.6 Triggering Function.

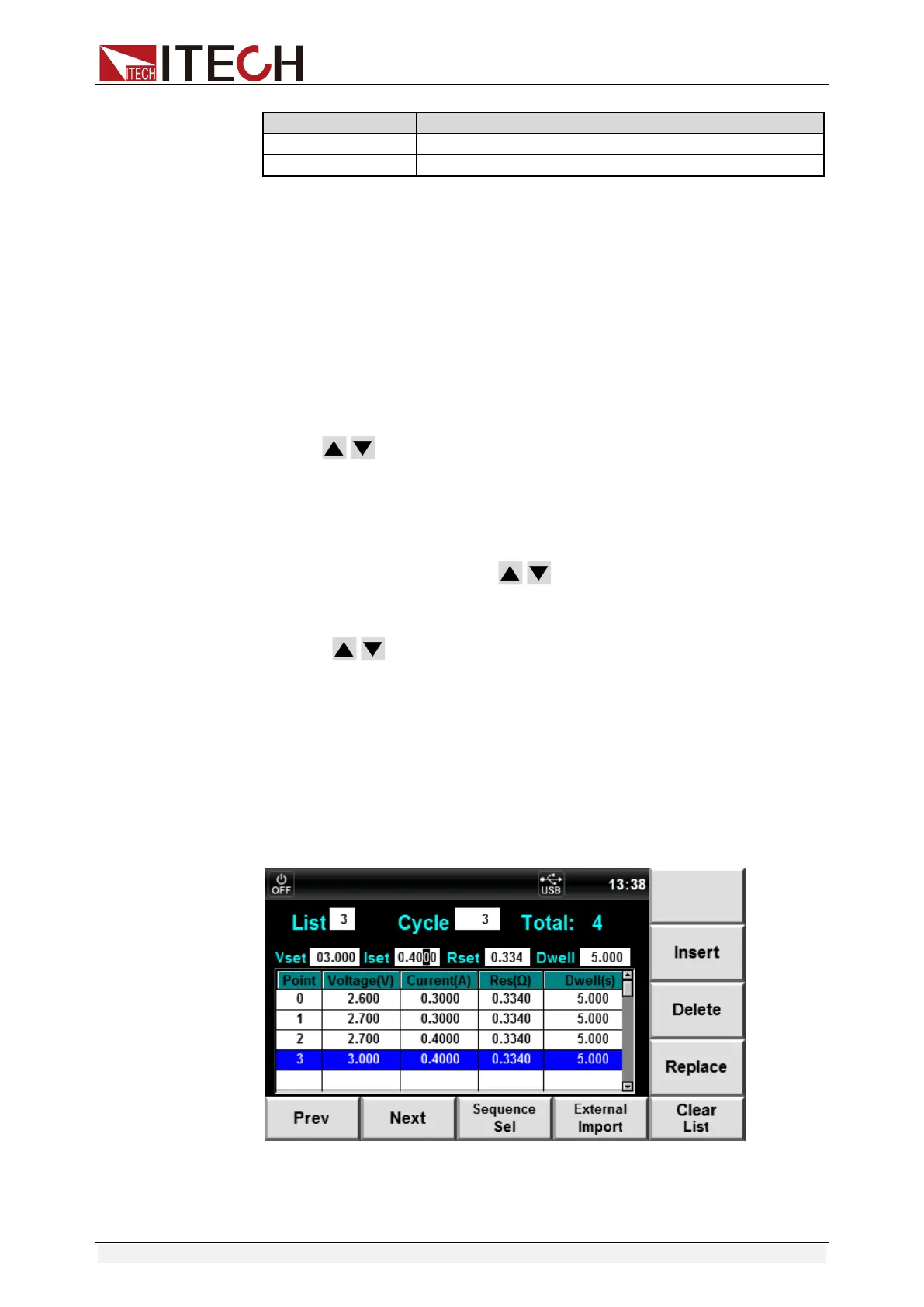

Edit List
1. Press the [Menu] key to enter the Menu Configuration page.
2. By the key, select List. Press the [OK] key for confirmation. The
display screen displays “List Config, Please Wait…” and “Config Done”.
Enter the List Function Display interface.
3. Press the [Channel 1/2] soft key to select the List in the editing channel 1.
(Only IT6402/IT6412/IT6412S contain this step.)
4. Configure List number. By the , move the cursor to the List setting
place and press the Numeric key or Knob to set the number value. In this
example, the List number is set as 02.
5. Use the key to adjust the cursor position and set the values of
Cycle, Vset, Iset, Rset and Dwell.
6. Press the [Insert] soft key to insert the present set value to the list as the
0
th
step of the List 02. The Total value increases accordingly with every
insertion of step.
7. Repeat Steps 5 - 6 to set the other three steps in List 02.
8. The User can repeat the above steps to edit other Lists. In this example,
edit the List 03 in CH1.
⚫ IT6411/IT6431/IT6432/IT6433/IT6411S/IT6432S
⚫ IT6402/IT6412/IT6412S
To Next Page
