FC300 Getting Started Guide 11
Proprietary and Confidential
To assemble the AC power unit
1. Plug the connector to AC power supply (4) into the AC
receptacle for the AC power unit (2).
2. Plug the wall plug (3) into a wall outlet.

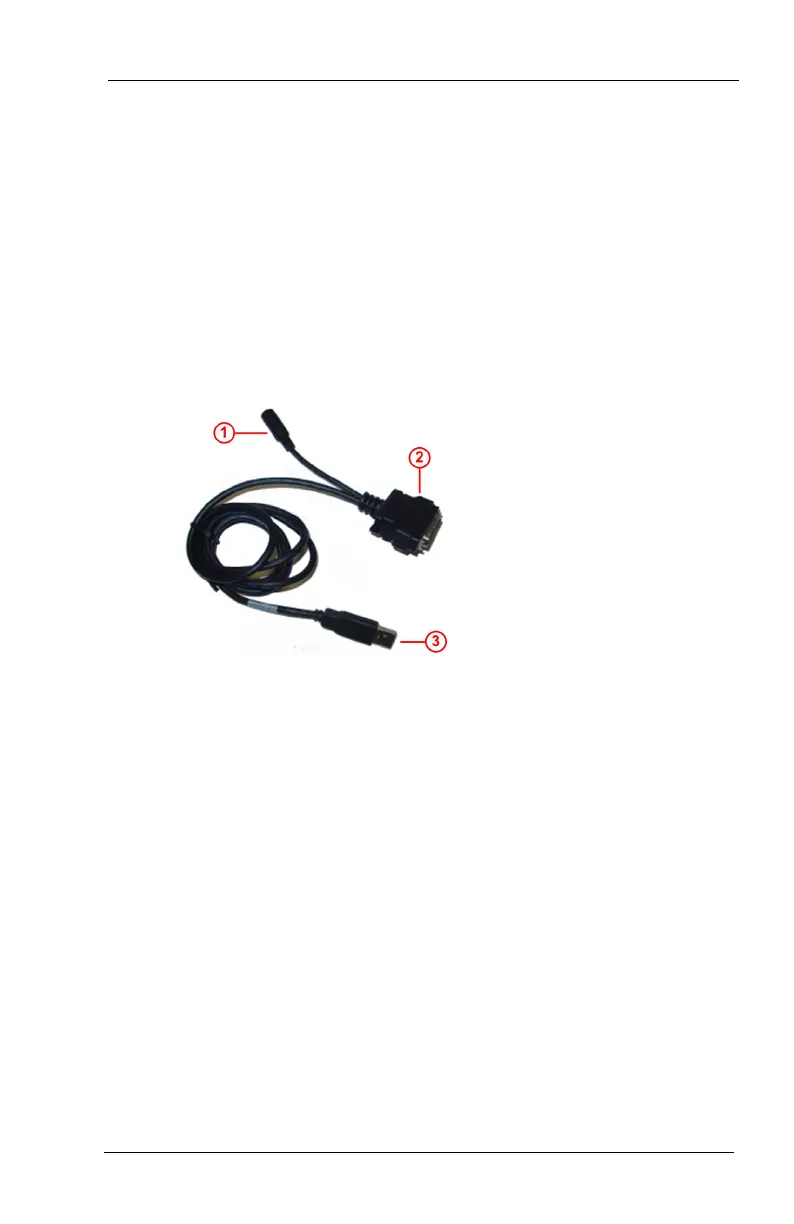

USB Client Y Cable
The USB client Y cable provides a connection between the host PC
via USB (using synchronization software) and the FC300. An AC
adapter pin provides the connector to external power.
This cable setup can be used if not using a dock.
1 Single-pin AC adapter to connect to external power
2 I/O connector for the FC300
3 USB type A plug to connect to the host PC
