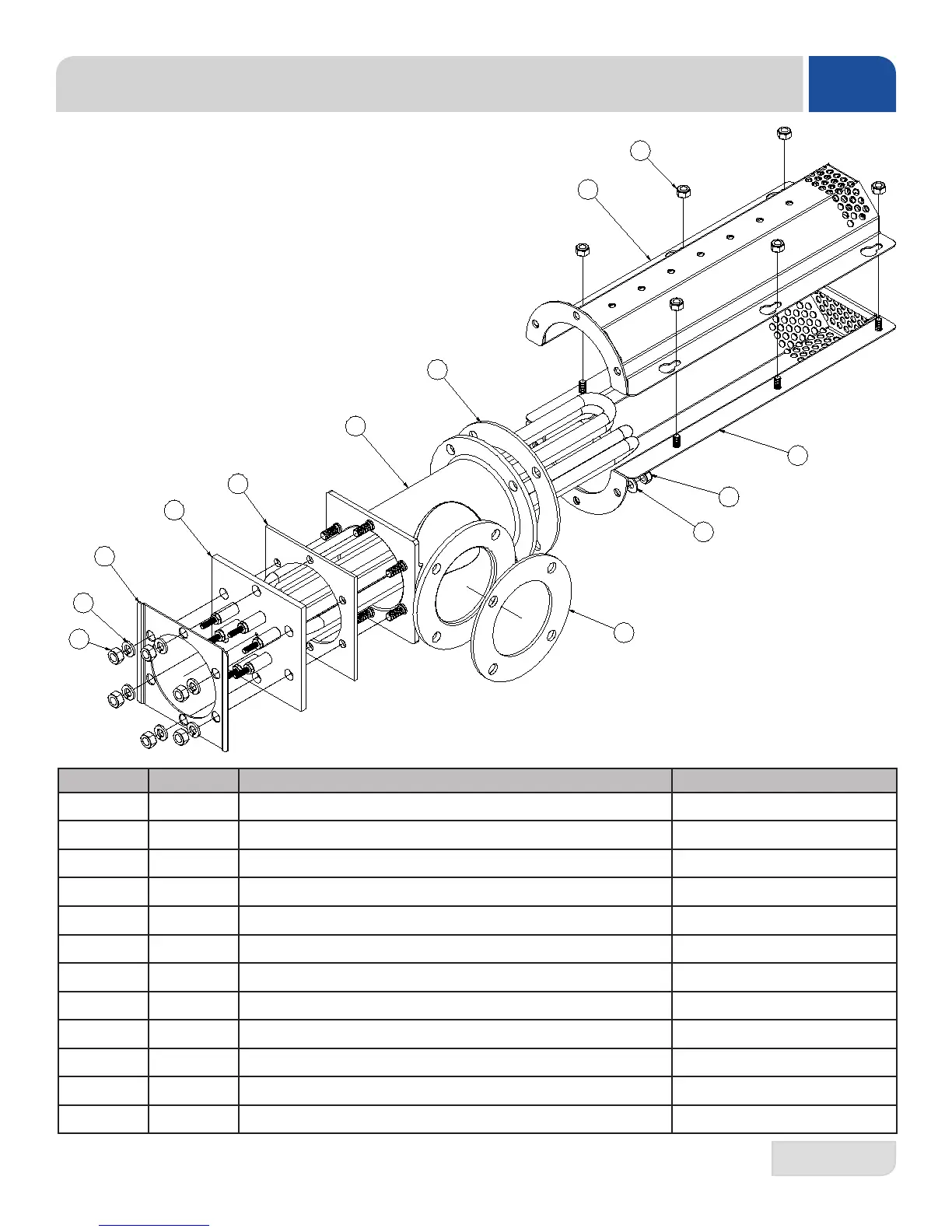

Jackson crew series - Wash Heater & Heater Shroud Assemblies

30
07610-003-78-18-N
6
12
5
7
10
11
3
4
1
8
9
2
9
ITEM QTY DESCRIPTION PART NUMBER
1 1 Heater Shroud Weldment Lower 05700-003-74-21
2 1 Heater Shroud Weldment Upper 05700-003-74-24
3 1 Gasket, Suction Casting 05330-003-75-89
4 1 Gasket, Pump Suction 05330-003-75-87
5 1 Gasket, Heater 05330-200-02-70
6 1 Heater Box Rails 05700-003-74-72
7 1 Wash Pump Suction Weldment 05700-003-77-63
8 2 Washer, S/S 05311-174-01-00
9 9 Locknut, 1/4"-20 Hex w/Nylon Insert 05310-374-01-00
10 6 Nut, Hex 5/16"-18 S/S 05310-275-01-00
11 6 Lockwasher, 5/16" Split S/S 05311-275-01-00
12 1 Wash Heating Element, 15kW/18kW See Heater Chart
WASH HEATER & HEATER SHROUD ASSEMBLIES
PARTS
