Jackson crew series - Pre-Wash Tank Fill Assemblies

38
07610-003-78-18-N
1
2
4
5
6
12
3
11
10
7
8
7
5
9
7
10
7
11
12
3
3
3

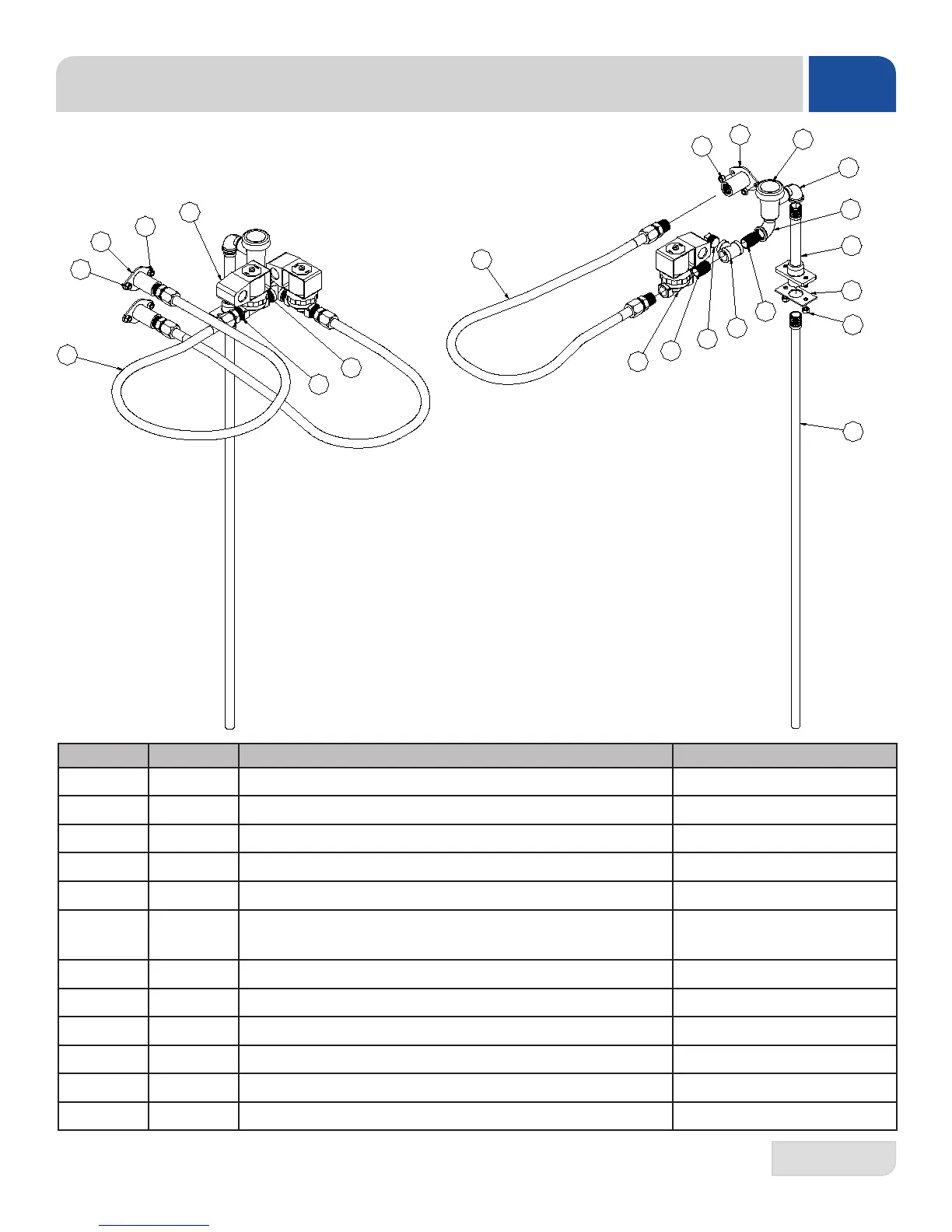

STANDARD PRE-WASH
FILL PLUMBING
PRE-WASH FILL PLUMBING WITH
OPTIONAL COLD WATER FILL
ITEM QTY DESCRIPTION PART NUMBER
1 1 Tube Weldment, Tank Fill 05700-003-76-81
2 1 Gasket, Rinse Manifold 05330-003-75-91
3 4 (6)* Locknut, 1/4"-20 Hex w/Nylon Insert 05310-374-01-00
4 1 Tank Fill Injector Weldment 05700-003-76-84
5 2 Elbow, 90 Degree, 1/2" Brass 04730-206-08-00
6 1
Vacuum Breaker, 1/2"
Vacuum Breaker Repair Kit
04820-003-06-13
06401-003-06-23
7 2 (3)* Nipple, 1/2" Close, Brass 04730-207-15-00
8 1 Tee, 1/2" x 1/2" x 1/2" NPT Brass 04730-211-27-00
9 1 (0)* Plug, 1/2" NPT Brass (Removed for Cold Water Fill Option) 04730-209-03-00
10 1 (2)* Valve, 1/2" NPT Brass, 24VDC Coil 04810-003-75-16
11 1 (2)* Hose, 1/2" x 42" S/S Braided w/PTFE, Male Swivel 04720-003-76-09
12 1 (2)* Water Inlet Fitting 05700-003-81-98
*Quantity changes when Cold Water Pre-Wash Fill option is added.
PRE-WASH TANK FILL ASSEMBLIES
PARTS
