63
07610-003-78-18-N
1
2
3
4
5
6
7
8
9
10
11
This hose connects to the Main Inlet
Plumbing solenoid valve.
This hose connects to the
Final Rinse Plumbing.
BOOSTER HEATER PART NUMBER
12 kW (40 degree F Rise) 208V, 3-Phase 04540-003-76-58
12 kW (40 degree F Rise) 240V, 3-Phase 04540-003-76-60
12 kW (40 degree F Rise) 480V, 3-Phase 04540-003-76-62
12 kW (40 degree F Rise) 208V, 1-Phase 04540-003-76-57
12 kW (40 degree F Rise) 240V, 1-phase 04540-003-76-59
17.3 kW (70 degree F Rise) 208V, 3-Phase 04540-003-76-64
18 kW (70 degree F Rise) 240V, 3-Phase 04540-003-76-66
18 kW (70 degree F Rise) 480V, 3-Phase 04540-003-76-68
18 kW (70 degree F Rise) 208V, 1-Phase 04540-003-76-63
18 kW (70 degree F Rise) 240V, 1-Phase 04540-003-76-64

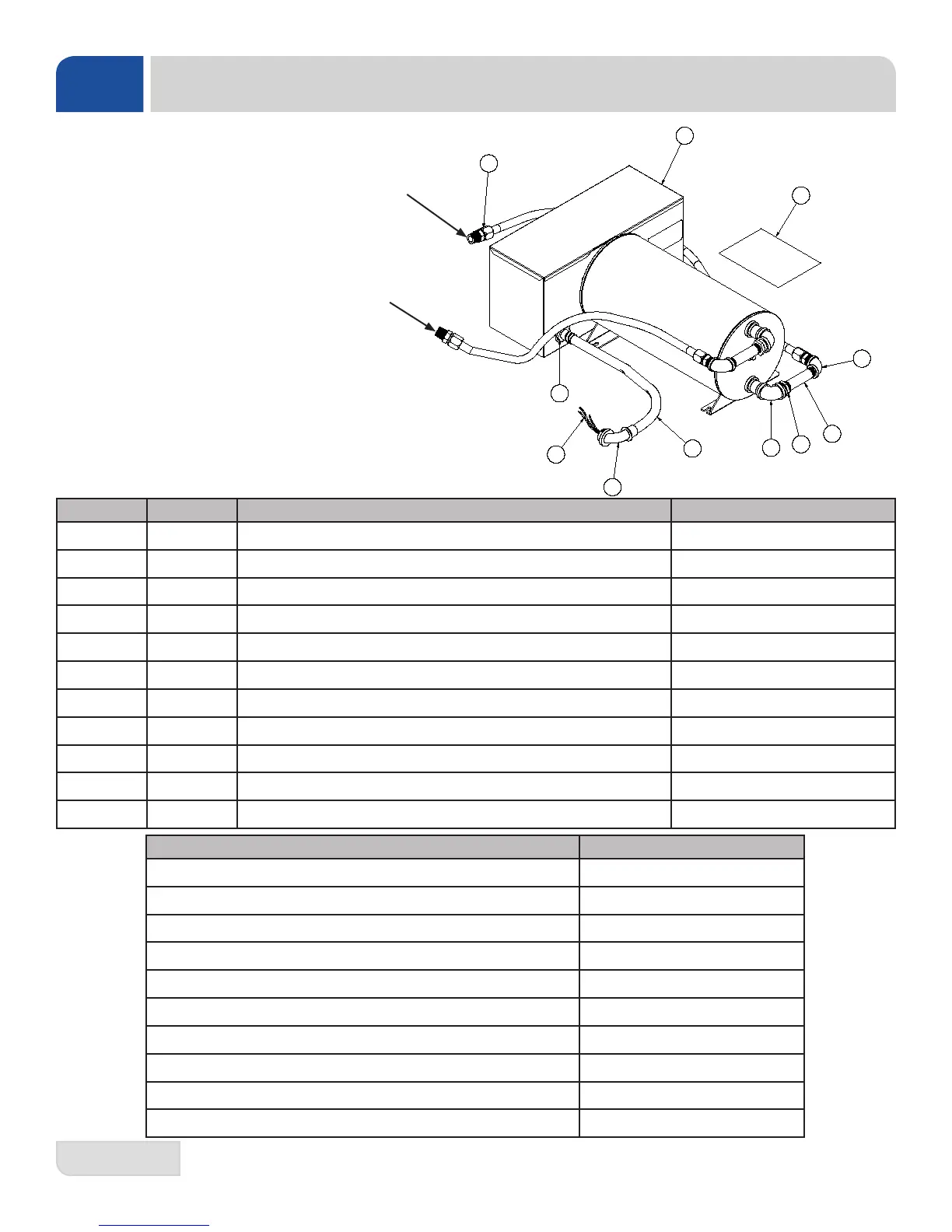

ITEM QTY DESCRIPTION PART NUMBER
1* 1 Booster Heater See Chart Below
2 2 Hose, 1/2" x 42" S/S Braided 04720-003-76-09
3 2 Elbow, 3/4" 90 Deg. Brass 04730-206-13-00
4 2 Bushing, 3/4" x 1/2" Hex Brass 04730-002-56-27
5 2 Nipple, 1/2" x 4" Long Brass 04730-207-04-00
6 2 Elbow, 1/2" 90 Deg. Brass 04730-011-42-96
7 1 Fitting, 3/4" Straight QT Snap 05975-003-77-46
8 1 Conduit, 1/2" x 24" Long 05700-003-79-40
9 1 Fitting, 3/4" 90 Deg. QT Snap 05975-003-77-45
10 3 Wire, 10AWG, Fiberglass, 3' 06145-003-13-97
11 1 Schematic (Refer to Booster Heater Schematic Pages)
*
*For Booster Heater service parts not listed here, reference
the Hatco Booster Manual. To access the manual:
1. Go to www.jacksonwws.com
2. Click "Conveyor Type"
3. Choose either CREW
®
44 or CREW
®
66
4. Click the plus sign (+) next to "Downloads"
5. Under "Service Manual," click the Hatco Booster Manual link
Call Hatco at 800-558-0607 with any service support questions.
PARTS
BOOSTER HEATER OPTION (ELECTRIC)
To Next Page
