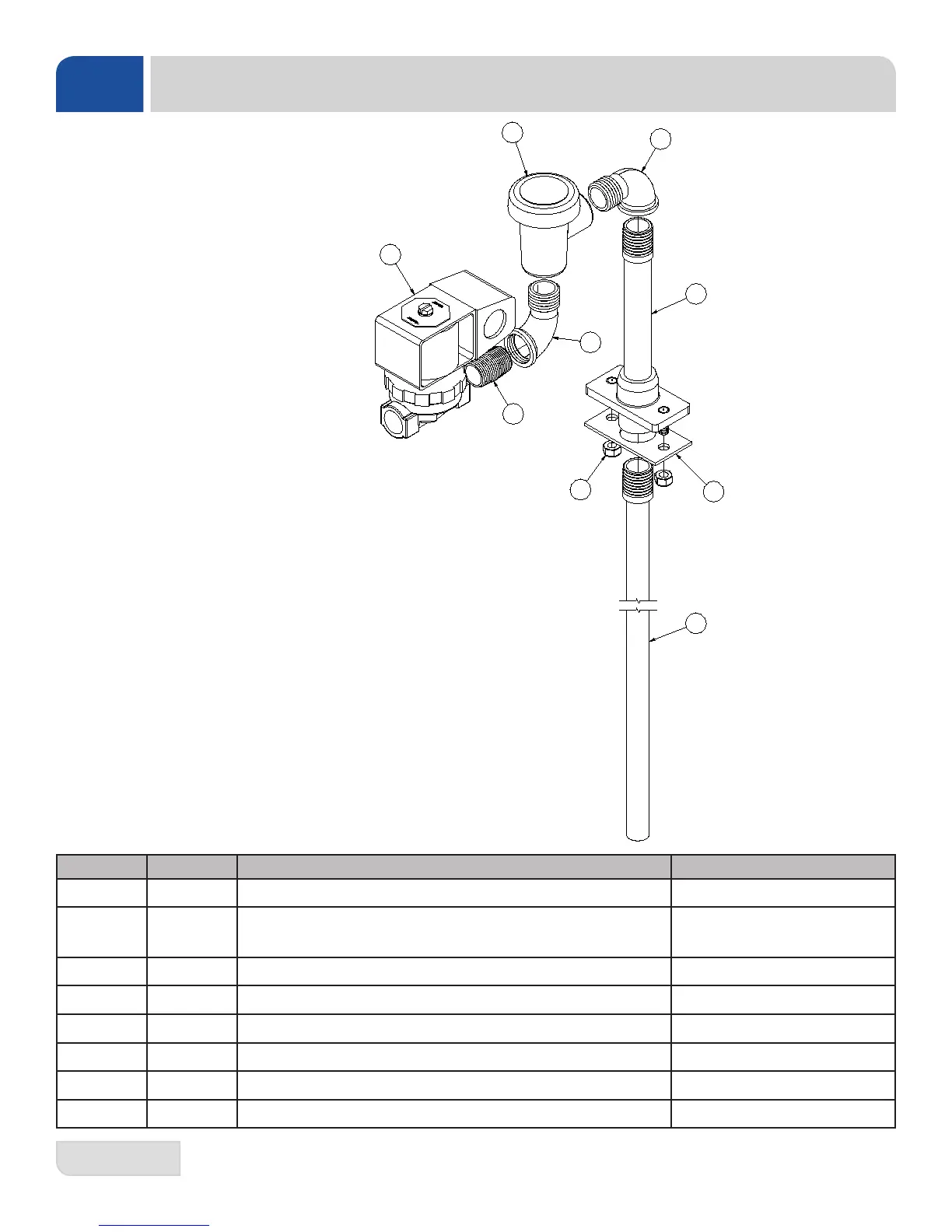

Jackson crew series - Wash Tank Fill Assembly

37
07610-003-78-18-N
5
3
1
2
1
7
4
8
6
ITEM QTY DESCRIPTION PART NUMBER
1 2 Elbow, 90 Degree, 1/2" Brass 04730-206-08-00
2 1
Vacuum Breaker, 1/2"
Vacuum Breaker Repair Kit
04820-003-06-13
06401-003-06-23
3 1 Nipple, 1/2" Close, Brass 04730-207-15-00
4 1 Gasket, Rinse Manifold 05330-003-75-91
5 1 Valve, 1/2" NPT Brass, 24VDC Coil 04810-003-75-16
6 1 Tube Weldment, Tank Fill 05700-003-76-81
7 1 Tank Fill Injector Weldment 05700-003-76-84
8 2 Locknut, 1/4"-20 Hex w/Nylon Insert 05310-374-01-00
The hose from the Main Water Inlet Plumbing
connects to this solenoid valve.
PARTS
WASH TANK FILL ASSEMBLY
