Jackson crew series - Drain Assembly Parts

50
07610-003-78-18-N
1
3
6
6
4
5
5
2
1
3
6
6
4
1
2
3
7
8
5
6
ITEM QTY DESCRIPTION PART NUMBER
1 1 Drain Handle 05700-003-83-66
2 1 Drain Standpipe (Overow) 05700-003-75-55
3 2 Drain Handle Bracket 05700-003-83-67
4 2 Drain Standpipe 05700-003-82-76
5 1 O-Ring 05330-400-05-00
6 2 Locknut, 1/4-20 Hex w/Nylon Insert 05310-374-01-00
THIS CONFIGURATION IS USED
FOR THE 66" UNIT WASH TANK
AND ACTS AS A STOPPER
THIS CONFIGURATION IS USED
FOR THE 44" UNIT WASH TANK
AND THE 66" UNIT PRE-WASH
TANK AND IS THE OVERFLOW
TO THE DRAIN

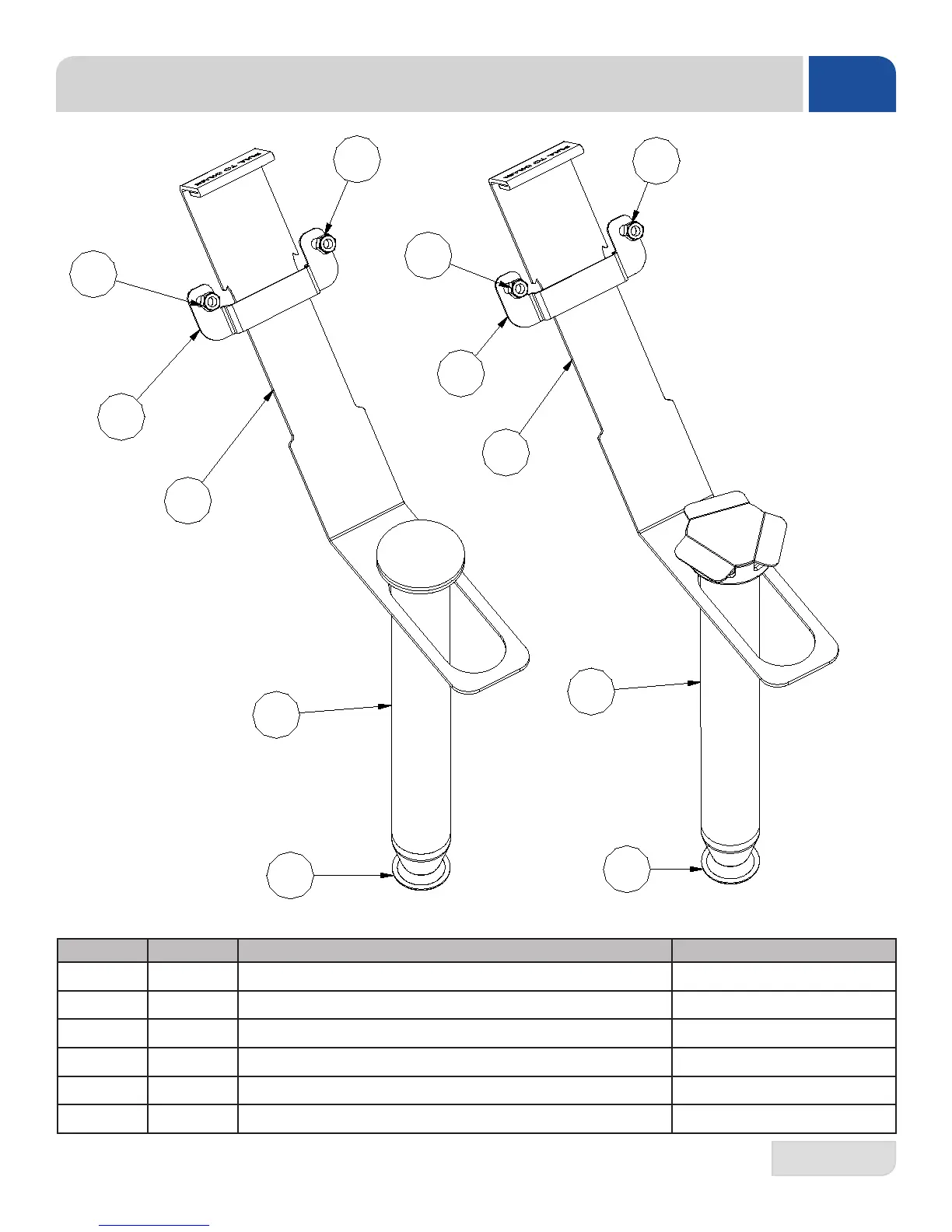

DRAIN ASSEMBLY
PARTS
