Jackson crew series - Parts; Rinse Paddle Assemblies

49
07610-003-78-18-N
4
1
2
3
7
8
5
6

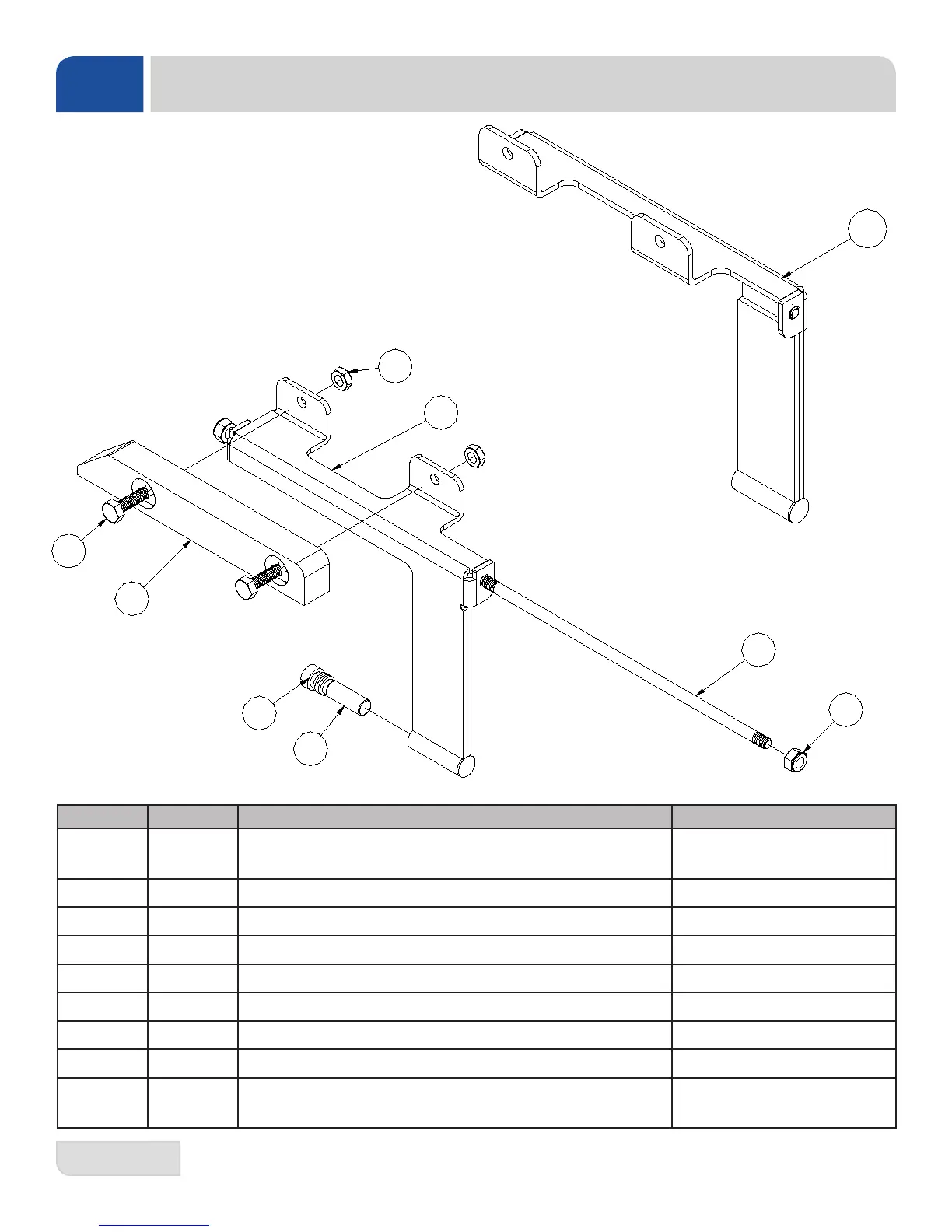

RINSE PADDLE ASSEMBLY
FOR LEFT-TO-RIGHT UNITS
RINSE PADDLE WELDMENT
FOR RIGHT-TO-LEFT UNITS
(All other parts are the same
regardless of direction)
1
ITEM QTY DESCRIPTION PART NUMBER
1 1
Rinse Paddle Weldment (Left-to-Right)
(Right-to-Left)
05700-003-81-91
05700-003-81-96
2 1 Stud, 1/4-20 x 8.50" Long, S/S, Double Ended Thread 05306-003-76-31
3 2 Locknut, 1/4-20 Hex w/Nylon Insert 05310-374-01-00
4 2 Locknut, 1/4-20 Low Prole w/Nylon Insert 05310-374-02-00
5 4 Screw, 1/2-20 x 7/8" Hex Head, S/S 05305-274-05-00
6 4 Magnet 05930-003-31-63
7 1 End Cap 05700-011-60-92
8 1 Bumper, Rinse Paddle 09330-003-81-04
1
Rinse Paddle Assembly (Left-to-Right)
(Right-to-Left)
05700-003-81-92
05700-003-81-95
PARTS
RINSE PADDLE ASSEMBLY
