Jackson crew series - Schematics; Booster Heater Electrical Diagrams

69
07610-003-78-18-N

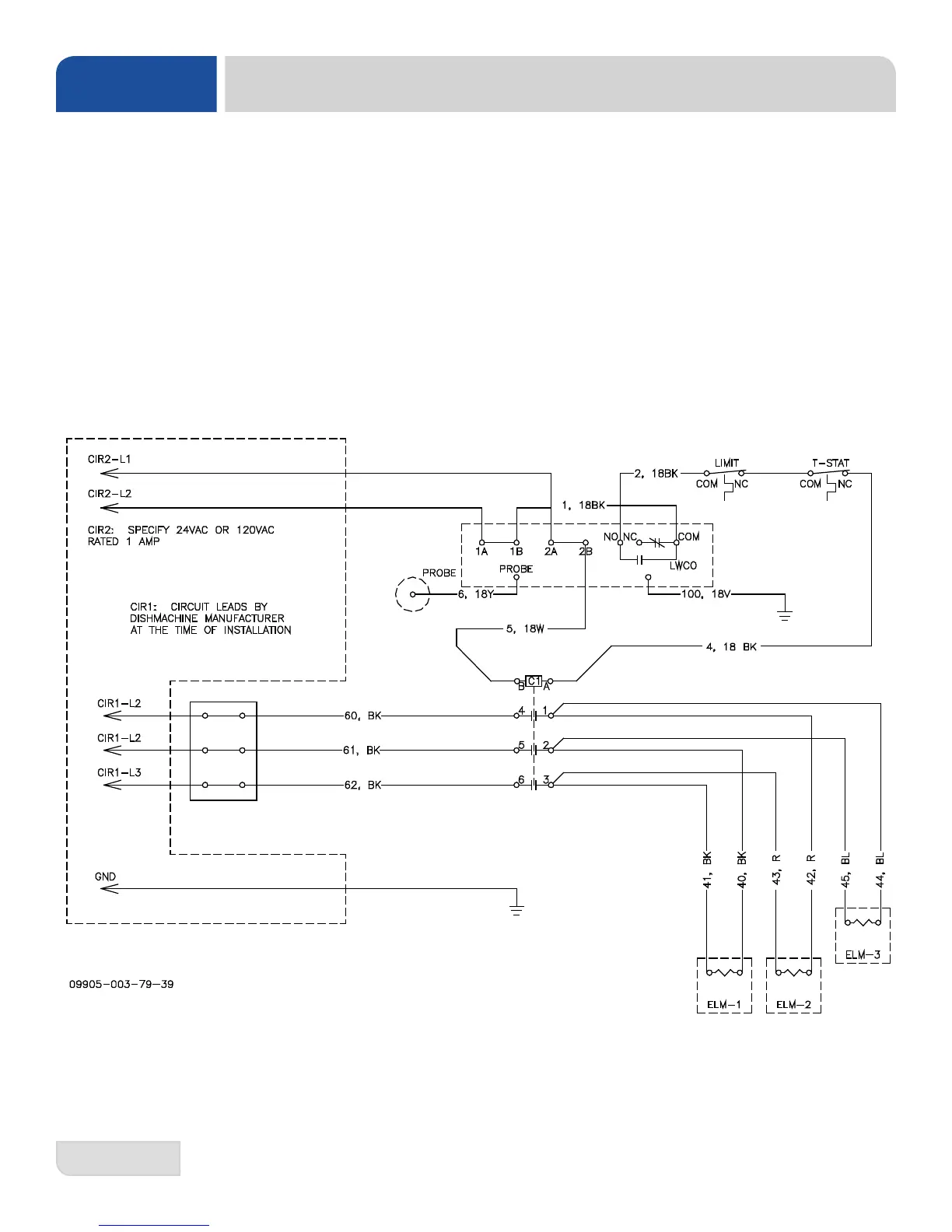

USE THIS SCHEMATIC FOR THE FOLLOWING BOOSTER HEATER OPTIONS:
• 208V, 60Hz, 3-Phase, 12 kW, 40° Rise
• 230V, 60Hz, 3-Phase, 12 kW, 40° Rise
• 460V, 60Hz, 3-Phase, 12 kW, 40° Rise
• 208V, 60Hz, 3-Phase, 18 kW, 70° Rise
• 230V, 60Hz, 3-Phase, 18 kW, 70° Rise
• 460V, 60Hz, 3-Phase, 18 kW, 70° Rise
BOOSTER HEATER, 3-PHASE
SCHEMATICS
