Jackson crew series - Pawl Bar Assemblies

45
07610-003-78-18-N

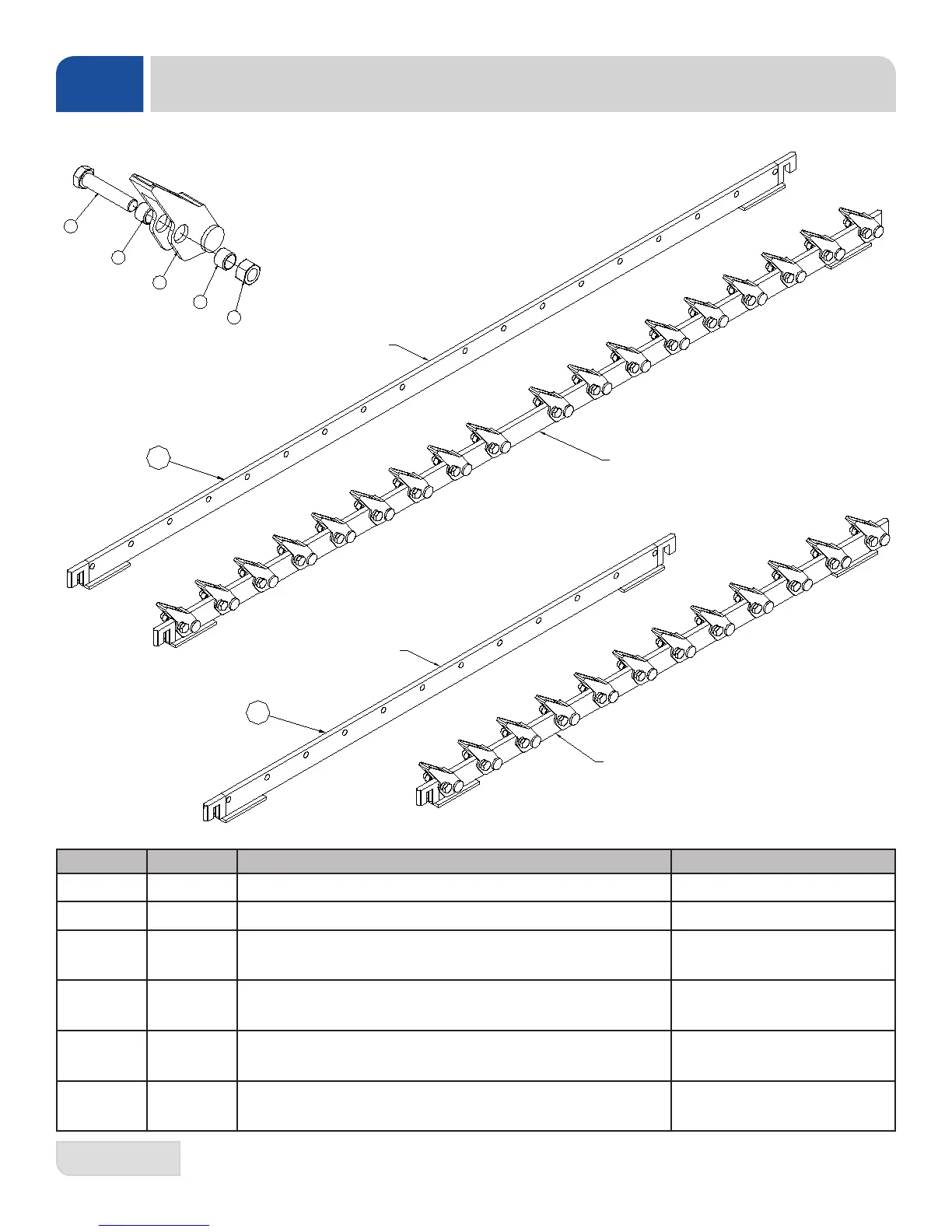

PAWL BAR WELDMENT AND PAWL DOGS
ARRANGED FOR ALL 44" UNITS
PAWL BAR WELDMENT AND PAWL DOGS
ARRANGED FOR ALL 66" UNITS
PAWL BAR WELDMENT
FOR ALL 44" UNITS
PAWL BAR WELDMENT
FOR ALL 66" UNITS
2
1
6
3
4
3
5
TYPICAL PAWL DOG
WITH HARDWARE
ITEM QTY DESCRIPTION PART NUMBER
1 1 Pawl Bar Weldment, 44" Units 05700-031-72-77
2 1 Pawl Bar Weldment, 66" Units 05700-003-89-34
3
24 (44")
36 (66")
Spacer, Pawl Bar Dog 05700-011-71-45
4
12 (44")
18 (66")
Pawl Bar Dog Casting 09515-021-69-00
5
12 (44")
18 (66")
Locknut, 3/8-16 w/Nylon Insert 05310-011-72-55
6
12 (44")
18 (66")
Bolt, 3/8-16 x 1-3/4" Long 05306-011-36-94
PARTS
PAWL BAR ASSEMBLIES
