Jackson crew series - Pawl Bar Bracket Assembly

46
07610-003-78-18-N
PAWL BAR WELDMENT AND PAWL DOGS
ARRANGED FOR ALL 44" UNITS
PAWL BAR WELDMENT AND PAWL DOGS
ARRANGED FOR ALL 66" UNITS
PAWL BAR WELDMENT
FOR ALL 44" UNITS
PAWL BAR WELDMENT
FOR ALL 66" UNITS
2
1

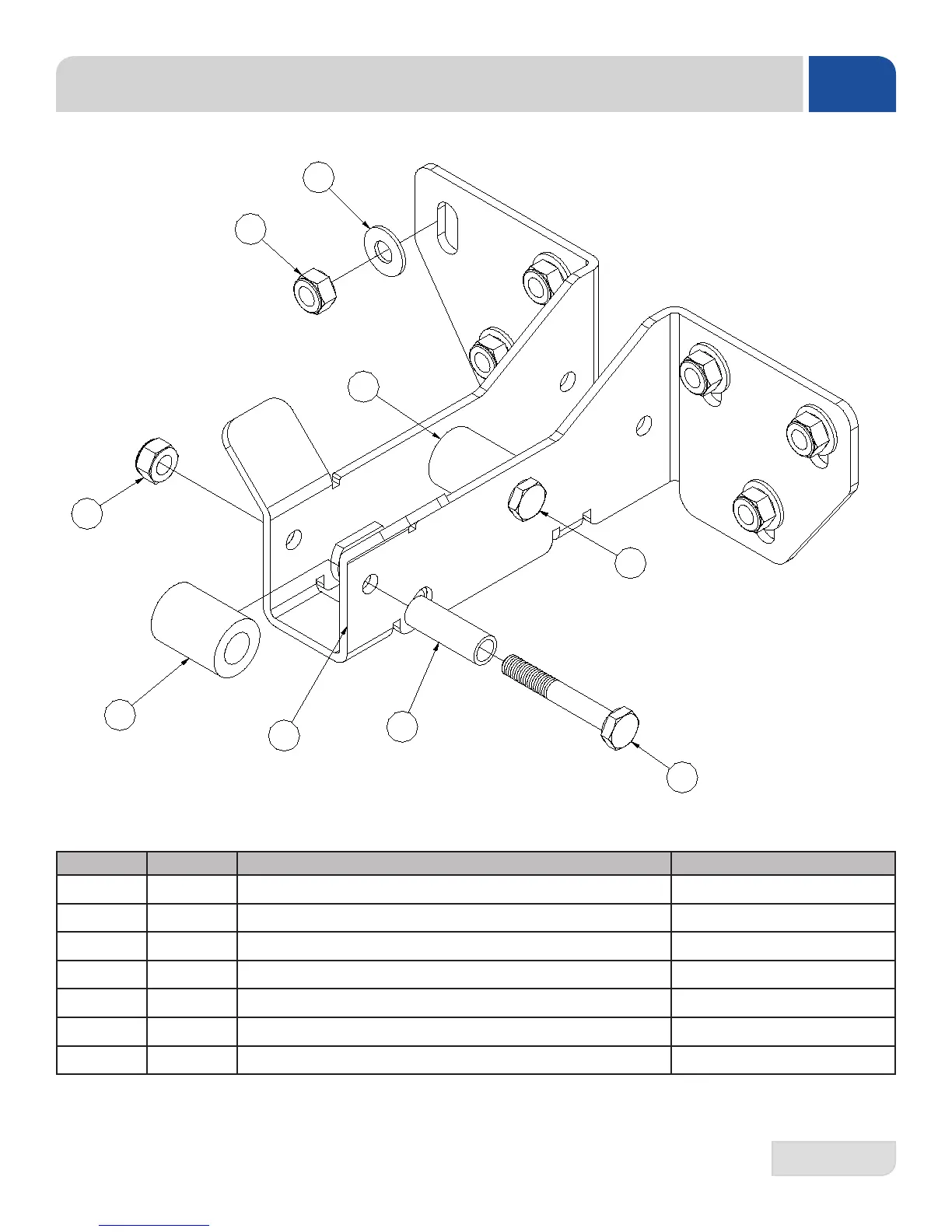

ITEM QTY DESCRIPTION PART NUMBER
1 1 Pawl Bar Bracket Weldment 05700-003-74-39
2 2 Screw, 1/4-20 x 1-3/4" Hex Head 05305-274-10-00
3 8 Locknut, 1/4-20 Hex w/Nylon Insert 05310-374-01-00
4 6 Washer, S/S 05311-174-01-00
5 2 Roller, Bracket Rod 05700-011-68-16
6 2 Shaft, Roller, 3/8" x 1.13" 05700-011-68-14
Pawl Bar Roller Replacement Kit (comes with # 2, 3, 5 &6) 06401-003-11-80
2
6
5
3
3
4
1
5
2
PAWL BAR ASSEMBLIES
PARTS
