48
07610-003-78-18-N
2
3
6
5
1
8
4
7
ITEM QTY DESCRIPTION PART NUMBER
1 1 Rack Paddle Weldment 05700-003-76-71
2 1 Bumper, Rack Paddle 09330-003-74-82
3 2 Screw, 1/4-20 x 7/8" S/S 05305-274-05-00
4 2 Locknut, 1/4-20 Low Prole w/Nylon Insert 05310-374-02-00
5 1 Locknut, 1/4-20 Hex w/Nylon Insert 05310-374-01-00
6 1 Screw, 1/4-20 x 2-3/4" Hex Head 05305-003-31-63
7 1 Magnet 05930-003-31-63
8 1 Wash/Rinse End Cap 05700-011-60-92
1 Rack Paddle Assembly 05700-003-76-74

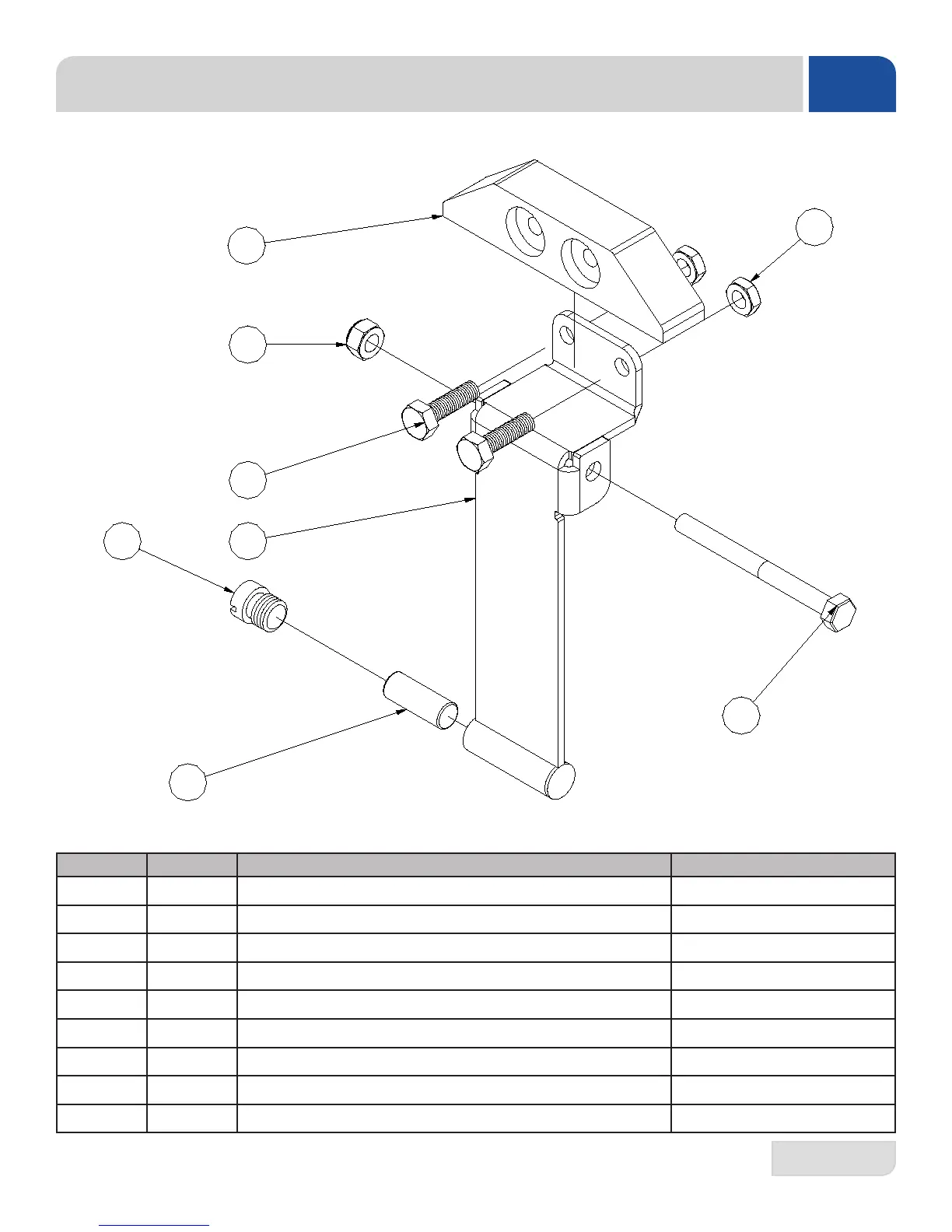

RACK PADDLE ASSEMBLY
