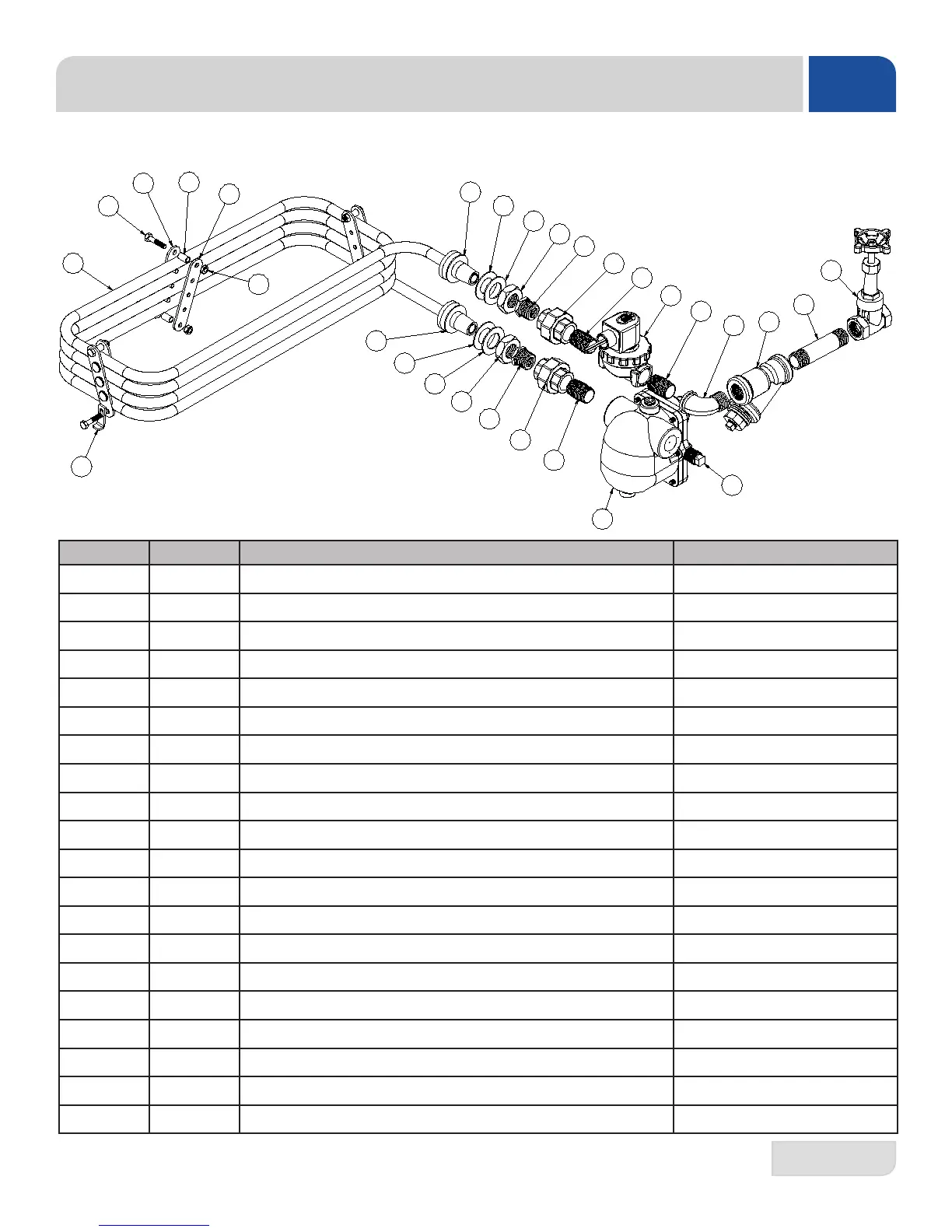

Jackson crew series - Steam Heating Coil Assembly

62
07610-003-78-18-N
1
5
4
6
3
2
7
8
8
9
10
11
12
13
14
13
15
16
17
18
20
19
13
12
11
10
9
8
8
ITEM QTY DESCRIPTION PART NUMBER
1 1 Steam Coil Weldment 05700-003-83-70
2 3 Steam Coil Spacer Weldment 05700-003-83-33
3 3 Plate, Steam Coil Spacer 05700-003-83-32
4 6 Sleeve, 1/4" x 5/8" Long 05700-003-83-35
5 6 Bolt, 1/4-20 x 1-1/4 Hex Head 05305-274-22-00
6 6 Locknut, 1/4-20 Low Prole w/Nylon Insert 05310-374-02-00
7 1 Bracket, Steam Coil Adjustment 05700-003-83-79
8 4 Gasket, Steam Coil 05700-001-17-86
9 2 Washer, Steam Coil Adapter 05700-001-17-87
10 2 Nut, Steam Coil Adapter 05310-011-17-85
11 2 Reducer, 3/4" x 1/2" Black Iron 04730-911-02-34
12 2 Union, 3/4" Black Iron 04730-912-01-00
13 3 Nipple, Close 3/4" Black Iron 04730-907-01-00
14 1 Valve, 3/4" Steam 110V Coil 04820-011-87-39
15 1 Elbow, 3/4" Street, Black Iron 04730-011-87-37
16 1 Y-Strainer, 3/4" Steam 04730-217-01-32
17 1 Nipple, 3/4" x 4" Long, Black Iron 04730-907-02-34
18 1 Valve, Gate 3/4" Steam 04820-100-19-00
19 1 Trap, Steam 3/4" 06680-500-02-77
20 1 Plug, 3/4" Square Head, Black Iron 04730-002-86-59
STEAM-HEATING COIL ASSEMBLY
PARTS
