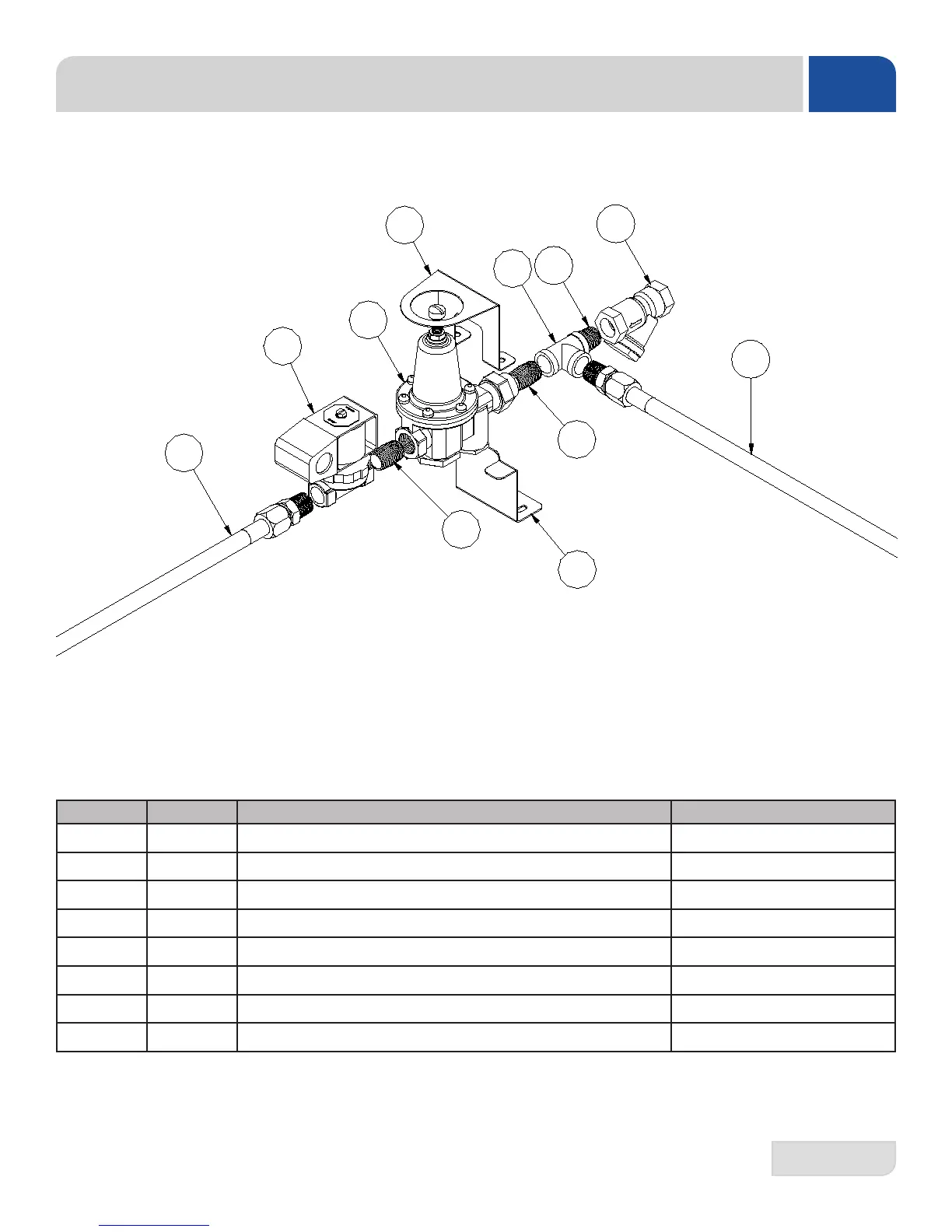

Jackson crew series - Plumbing Assembly, Main Water Inlet

36
07610-003-78-18-N
1
3
2
4
2
5
6
7
8
2
6
ITEM QTY DESCRIPTION PART NUMBER
1 1 Strainer, Inlet, 1/2" 04730-217-01-10
2 3 Nipple, 1/2" Close, Brass 04730-207-15-00
3 1 Tee, Brass, 1/2" x 1/2" x 1/2" 04730-211-27-00
4 1 Regulator, 1/2" 04820-100-04-07
5 1 Valve, 1/2" NPT Brass, 24VDC Coil 04810-003-75-16
6 2 Hose, 1/2" x 42" S/S Braided w/PTFE, Male Swivel 04720-003-76-09
7 1 Bracket, Inlet Plumbing Support 05700-003-74-42
8 1 Bracket, Upper Inlet Plumbing Support 05700-003-74-86
The opposite end of this hose
connects to the Final Rinse Assembly.
For units with the Booster Heater
Option, this hose connects to the
Booster Heater Inlet.
The opposite end of this
hose connects to the
Wash Tank Fill Assembly.
PLUMBING ASSEMBLY, MAIN WATER INLET
PARTS
