47
07610-003-78-18-N
Drive Rod Hole Cover
05700-003-75-68
Pawl Bar Drive Linkage
09515-021-87-73
ITEM QTY DESCRIPTION PART NUMBER
1 1 Top Guide Block 05700-011-69-49
2 1 Bottom Guide Block 05700-011-69-50
3 1 Pawl Bar Gutter Weldment 05700-021-66-86
4 1 Drive Gutter Gasket (not shown) 05330-011-68-55
1 Gutter Weldment Replacement Kit (w/Hardware) 06401-003-09-95
1 Guide Block Replacement Kit 06401-003-10-15
3
1
2
PARTS

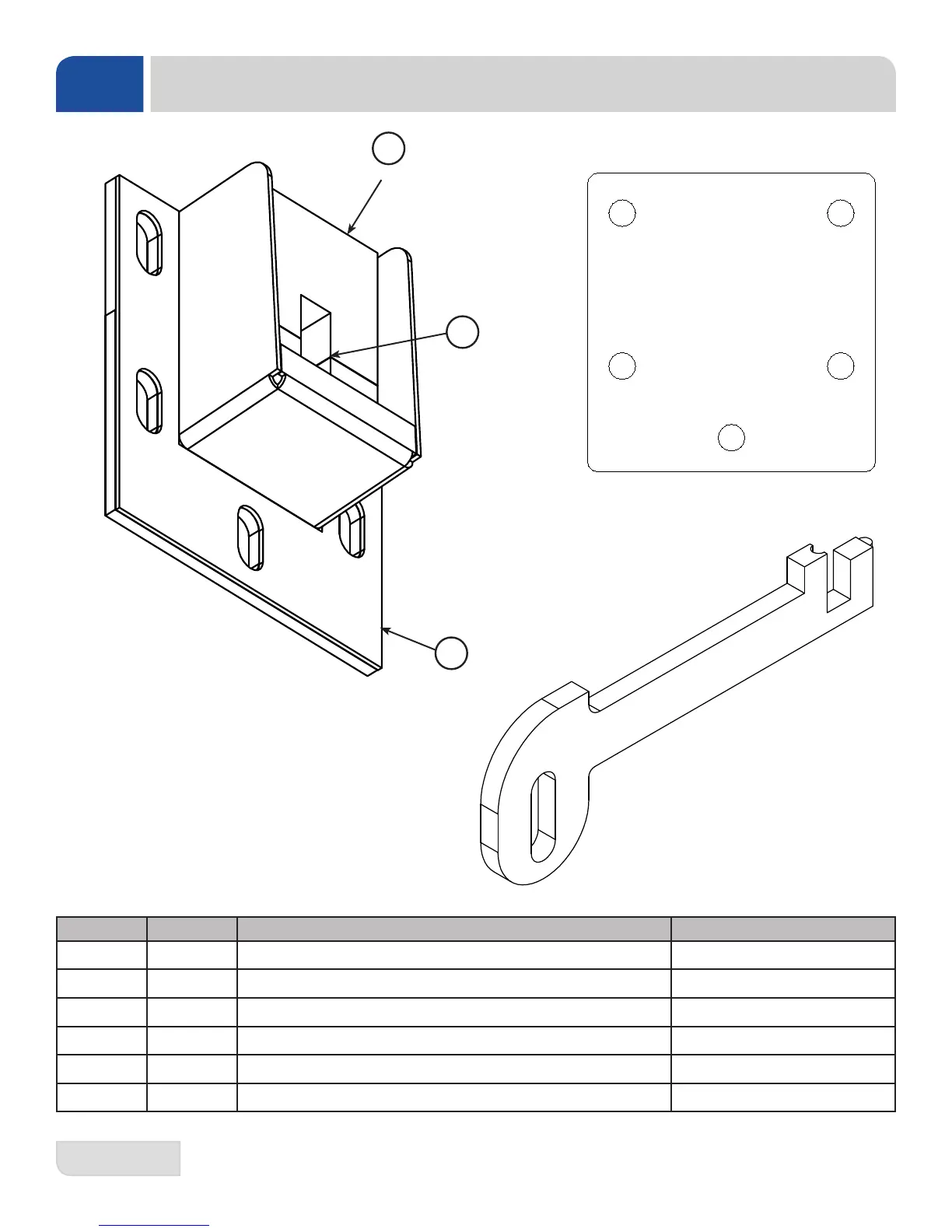

PAWL BAR GUTTER ASSEMBLY
