Jackson crew series - Side-Loaders

58
07610-003-78-18-N
DETAIL A
13
14
16
18
19
17
17
16
4
5
2
1
3
4
16
14
16
15
14
16
A
25
31
30
29
28
26
27
26
32
33
32
33
32

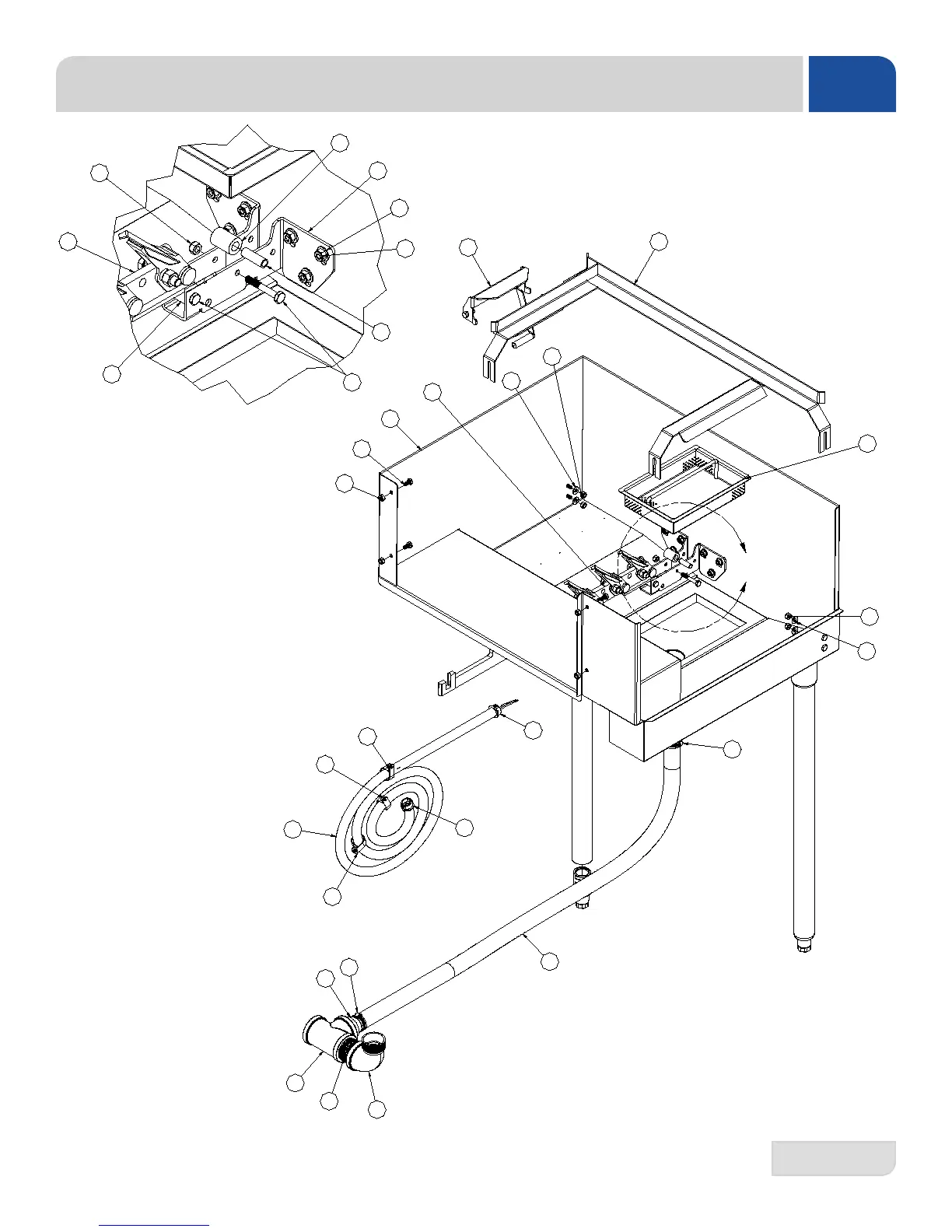

This illustration depicts a
23" Right to Left Unhooded
Side-Loader.
Differences in parts for the
23" Left to Right and both
directions of the 30" Side-Loaders
are reected in the parts list.
*NOTE
*NOTE
*NOTE: Order lengths of Hose or Conduit by
measuring the lengths in the eld and add
any additional 1 foot to ensure any custom cut
lengths are accounted for.
SIDE-LOADERS
PARTS
