CONTROLS 4
en-24

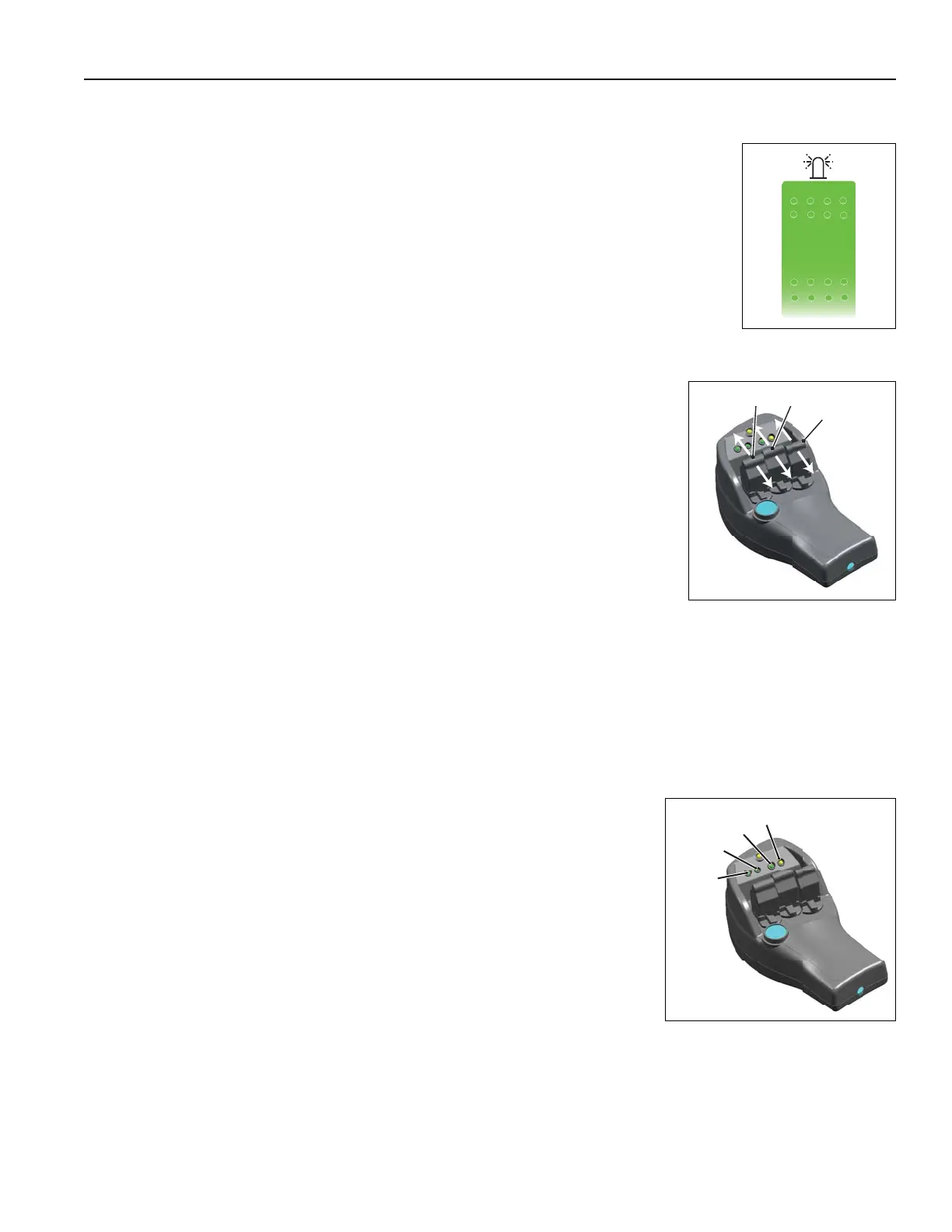

4.2.12 ROTATING BEACON ______________________________________________________
Operates the vehicles rotating beacon when a cab is not fitted.
4.2.13,14,15 LIFT/LOWER SWITCHES ______________________________________________
4.2.13. Right Hand Wing Cutter Deck
4.2.14 Front Cutter Deck
4.2.15 Left Hand Wing Cutter Deck
To lower the cutting unit move the switch lever forward.
To raise the cutting unit move the switch lever rearwards
NOTE:
If the Mow switch is engaged when the unit is lowered the green lamp will illuminate
when the unit is below 400mm from the ground.
The yellow mow lamp will illuminate when the Mow switch in ON. When the blades are
moving the icon on the display change to green.
If the lever is pulled momentarily rearwards the unit will raise to the cross cut position and continue to rotate for 3
seconds. Lowering the unit within 3 seconds will let the blade continue rotating without stopping.
If the lever is held and the unit lifts above the cross cut position the unit will continue to lift and the blade will stop
rotating at 400mm. The lift will stop when the lever is released.
4.2.16, 17, 18, 19 INDICATOR LAMPS ______________________________________________
4.2.16 Yellow lamp: Illuminates when the mow is engaged
4.2.17 Green lamp: Illuminates when the Right hand cutter deck is in
cutting position.
4.2.18 Green lamp: Illuminates when the center cutter deck is in
cutting position.
4.2.19 Green lamp: Illuminates when the Left hand cutter deck is in
cutting position.
NOTE:
The green lamps 5.2.17, 5.2.18 and 5.2.19 will turn red when a deck begins to stall.
See section 6.8.
