of steel. In addition, try to avoid directly mounting the robot on an empty box, which can easily cause resonance
and make abnormal noise. If the robot is installed on a linear actuator or mobile platform, the acceleration of the
mounting base should be very low, because high acceleration will cause the robot to give a false alarm of
collision and stop.

Do not connect the power during the robot mounting process.







 




Zu 3
M6
4 pcs
15 Nm
132.761 lbf·in
900 Nm
7965.666 lbf·in
Φ6.6 mm
Φ0.260in
Φ5 mm
Φ0.197in
Zu 5
M8
40 Nm
354.030 lbf·in
3000 Nm
26552.22 lbf·in
Φ9 mm
Φ0.354in
Φ8 mm
Φ0.315in
Zu 7
Zu 12
3800 Nm
33632.812 lbf·in
Zu 18

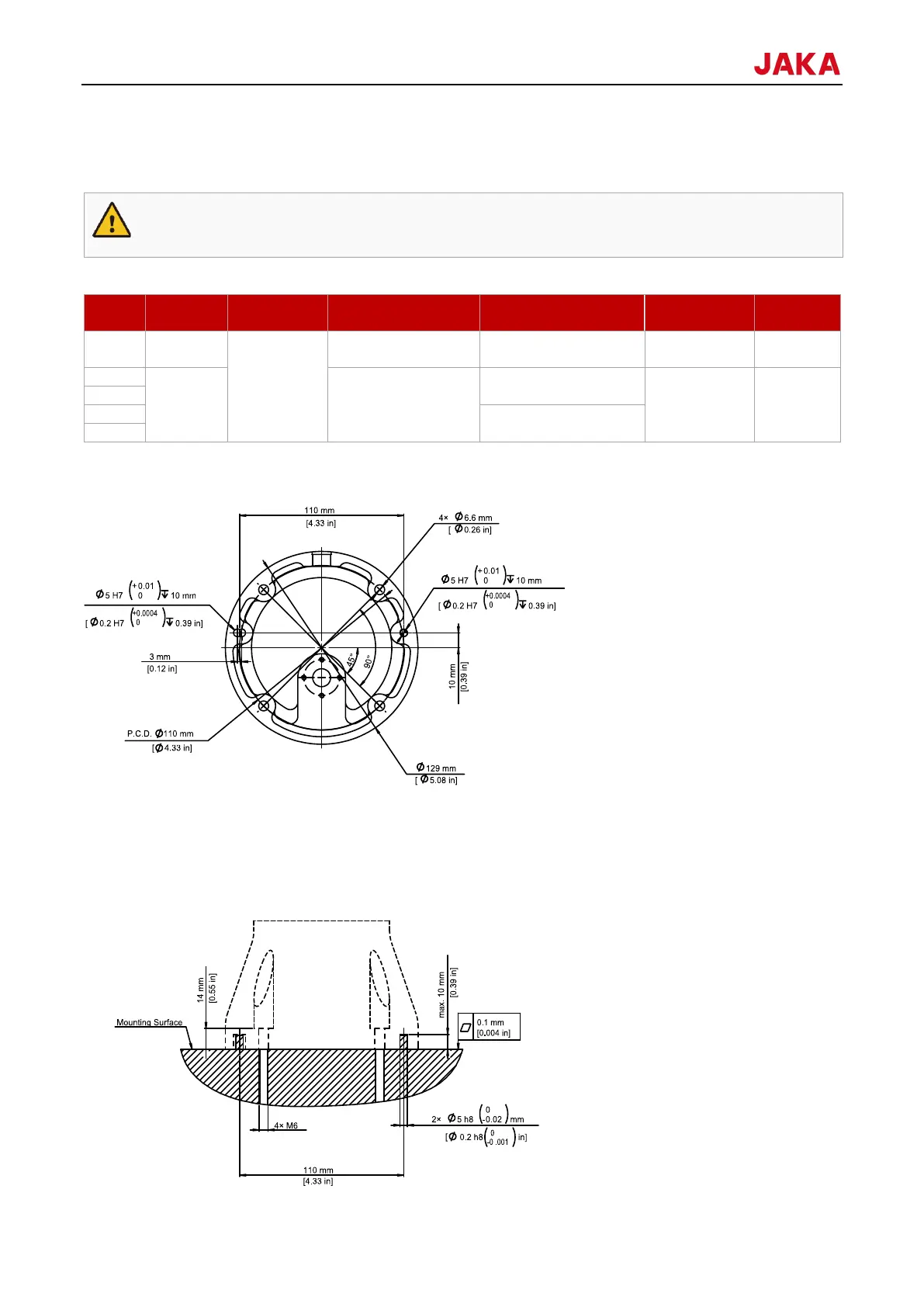

The mounting drawing of the robot is shown in figure below.
1. 
